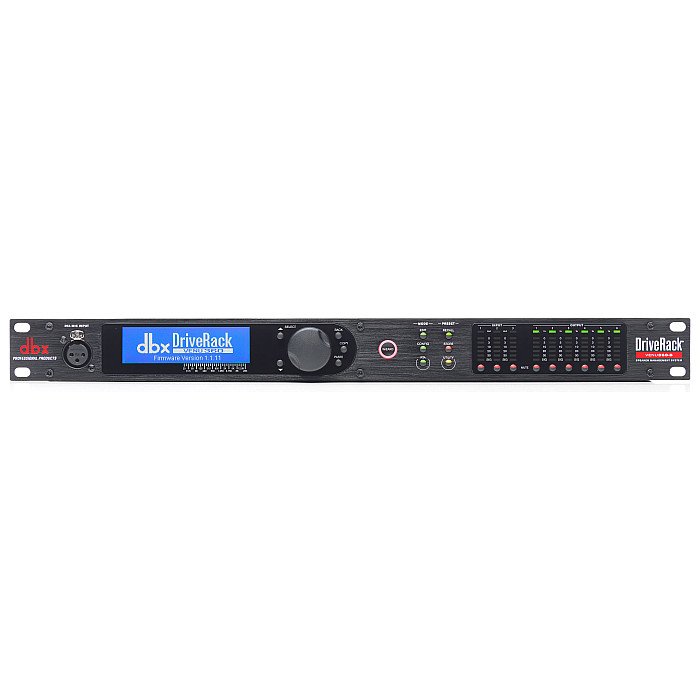

Spesifikasi dbx Venu360B DriveRack Complete Loudspeaker Management System with BLU link

dbx 360B DriveRack Complete Loudspeaker Management System with BLU link

The VENU360 provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, additional input channels, ethernet control via an Android,® iOS,® Mac,® or Windows® device, and updated wizards, the DriveRack VENU360 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

BLU link-Enabled
The VENU360-B model provides all the features of the standard VENU360 model but with the addition of BLU link-enabled RJ-45 ports for interfacing with other BLU link-equipped devices, such as the dbx TR1616, the PMC16s, the BSS® Audio Soundweb London devices, or a Soundcraft® mixing console equipped with a BLU link option card. The VENU360-B model also provides a 7x6 routing/mixing matrix (using any available combination of AES, analog, and BLU link input channels) and a 3x6 signal processing chain.

AutoEQ™
New, improved AutoEQ algorithm ensures an extremely accurate, fast, and non-intrusive automatic EQ experience. With a RTA Mic “listening” to your room, the updated DriveRack VENU360 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds using sine sweeps. This means room adjustments can now be made very quickly, without subjecting the audience to annoying, lengthy broadcasts of pink noise. The AutoEQ is now located in the output processing stage, which means independent sections of a system can be equalized automatically. This allows AutoEQ to be used on the FOH system as well as the stage monitors, zones and tower delays!

Enhanced AFS™ Feedback Elimination
Enhanced AFS™ algorithm for faster, more precise feedback elimination, without adversely affecting your system’s tone. Nothing turns audiences away like annoying and potentially painful audio feedback. Fortunately, dbx engineers have revisited their already-stellar Advanced Feedback Suppression algorithm and made it work even better. The DriveRack VENU360 listens for and anticipates feedback and automatically removes it before it even has a chance, while never altering your sound.

Features

• Input Processing
• dbx Compression
• AFS™ (Advanced Feedback Suppression)
• 31-Band Graphic EQ
• 12-Band Parametric EQ (with narrow notch capabilities)
• Subharmonic Synthesis
• Backline Delay
• Noise Gate
• Output Processing
• Crossover (supports full range up to mono 6-way systems)
• 12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
• dbx Compression
• Automatic Gain Control
• Subharmonic Synthesis
• Noise Gate
• Tower Delays (up to 1000ms per output)
• 8-Band Parametric EQs (used for speaker tunings)
• dbx Limiting
• Driver Alignment Delays
• Tested Wireless Routers:
• Dlink 636L
• Dlink Cloud router 2000
• Cisco / linksys: WRT54G2V1
• Netgear WGR614 v7
• Netgear WNR 1000
•

Specifications

• Manufacturer: DBX
• 19"-capable: Yes
• Installation Height (HE): 1
• MIDI compatible: No
• Digital: Yes
• Microphone Input: Yes
• Number of Channels: 2
• Compressor: Yes
• EQ: Yes
• Expander: Yes
• Gate: Yes
• Limiter: Yes
• Gain: Yes
• Attack / Release adjustable: Yes
• Low Cut: Yes
• Bypass: Yes
• GroundLift: No
• Pad Switch: No
• Inputs: XLR
• Outputs: XLR
• Phantom Power: Yes
• Clip LED: Yes
• Headphone Switch: No
• Power Adapter: Internal
• Operating Voltage 100-240 VAC 50/60 Hz
• Power Consumption 18 W
• Unit Weight 5.48 lbs. (2.49 kg)
• Shipping Weight 7.10 lbs. (3.22 kg)
• Dimensions 1.75” (H) x 8.0” (D) x 19” (W), 4.4cm (H) x 20.32cm (D) x 48.26cm (W)
