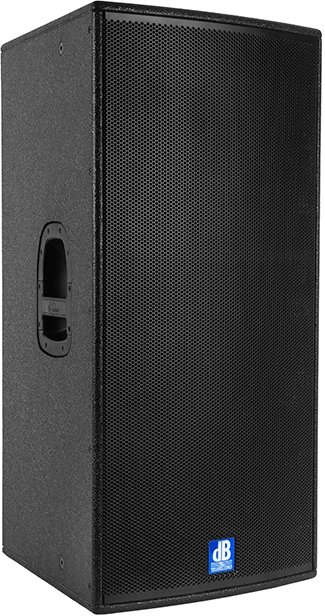

dB Technologies Flexsys F315

Spesifikasi dB Technologies Flexsys F315

dB Technologies Flexsys F315

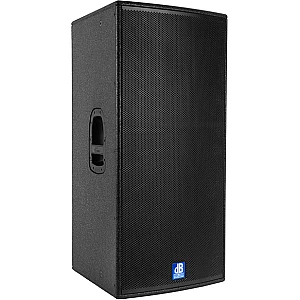

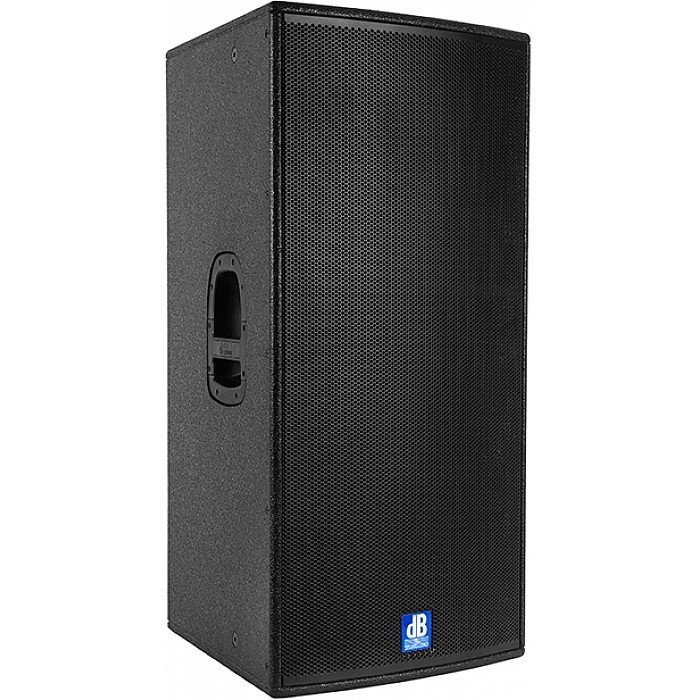

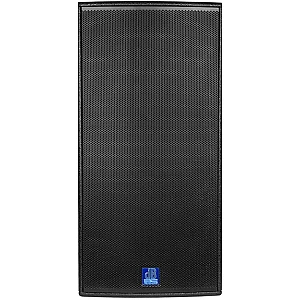

The F315 is an active three-way system designed to render the full frequency range.

Powerful and assertive, it delivers the sonic goods without requiring an added subwoofer.

A bi-amped 1000 W/RMS digipro® Class-D digital power amp with switched-mode power supply offering PFC drives this fullrange enclosure. Its powerful 15“ woofer, housed in a bass reflex chassis, packs a mighty low-end punch. A specially designed dual horn section comprised of a 6“ horn-loaded midrange driver and a 1“ compression driver covers the middle and high frequency spectrum.

Every component renders precisely the frequency range that it handles best, creating a homogeneous yet expansive composite sonic image that covers a very wide audience area. An integrated DSP ensures the different speakers phase and time are in perfect alignment. It also performs energy management tasks, controlling RMS and thermal limiters to prevent any impending overload.

Specification

• Speaker Type: 3-Way Active Speaker
• Acoustical data
• Frequency Response [-10dB]: 47 - 20.000 Hz
• Frequency Response [+/- 3dB]: 60 - 19.000 Hz
• Max SPL: 131 dB
• HF: 1 "
• Type HF: compression driver
• Directivity: 90 x 40 °
• Horn: CD Horn
• MF: 6.5 "
• Type MF: Hornloaded
• LF: 15"
• Amplifier
• Amp Technology: Digipro®
• Amp Class: Class D
• Power RMS: 1000 W
• Peak Power: 2000 W
• Processor
• Controller: DSP 24bit/48kHz
• System Presets: Flat, Processed
• Limiter: Dual Active Peak, RMS, Thermal
• Crossover Frequency LF-HF: 1800 Hz
• Slope LF-HF: 24 dB/Octave
• Input
• Mechanics
• Housing: Multiplex
• Width: 440 mm (17.6 in)
• Height: 880 mm (34.6 in)
• Depth: 500 mm (20 in)
• Weight: 31 kg (68.34 lbs)
