dB Technologies Flexsys F212

Spesifikasi dB Technologies Flexsys F212

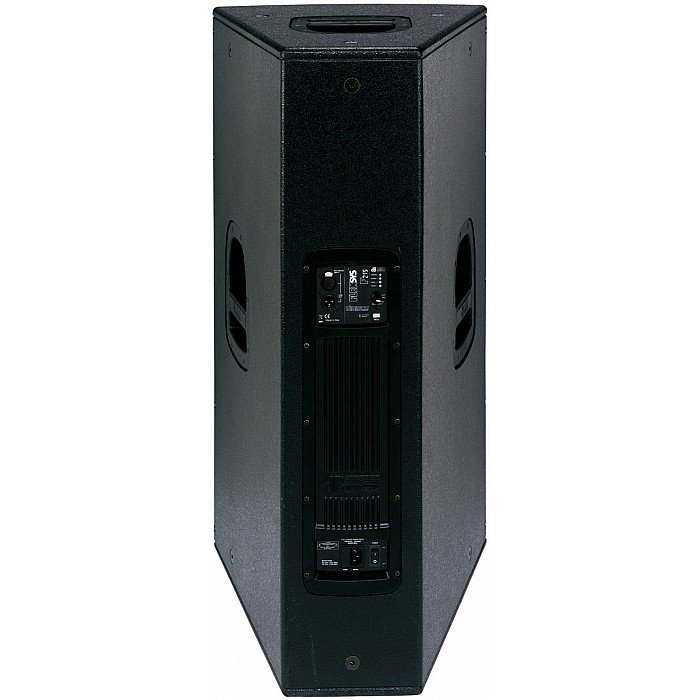

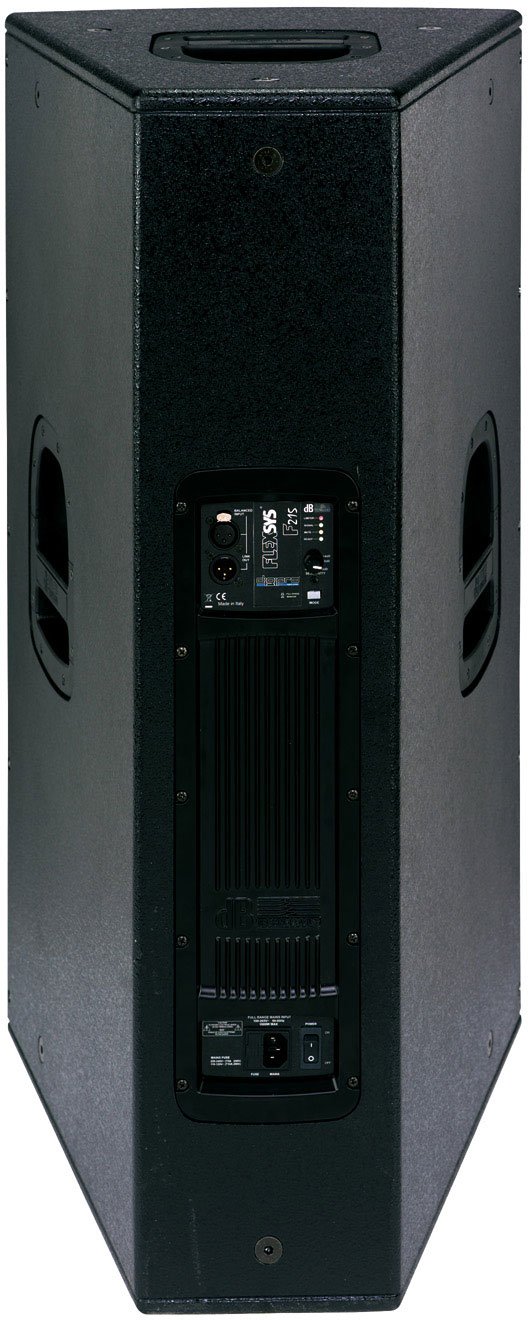

dB Technologies Flexsys F212

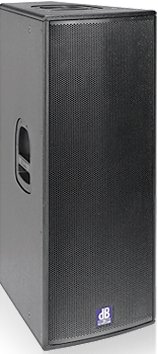

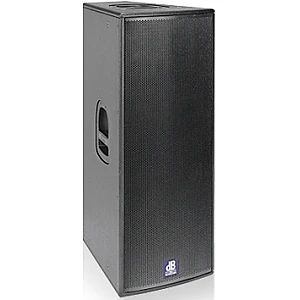

The F212 is an active two-way system with considerable reach.

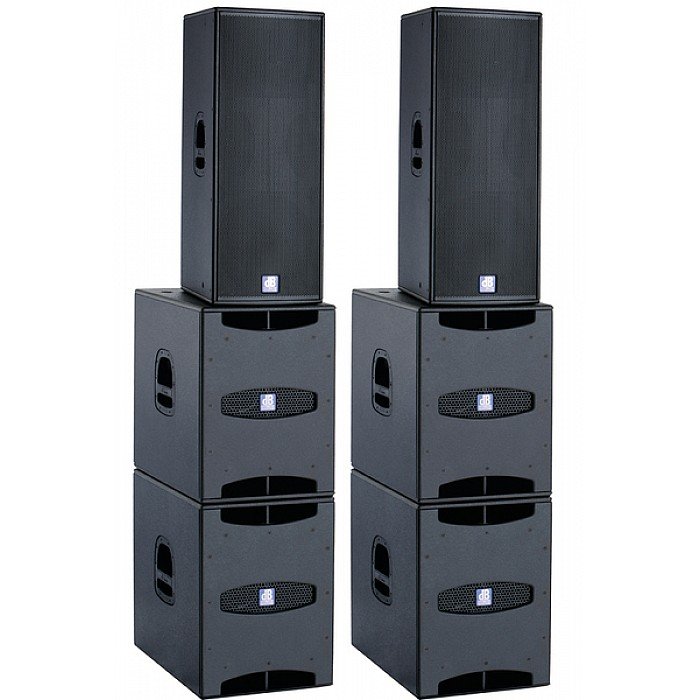

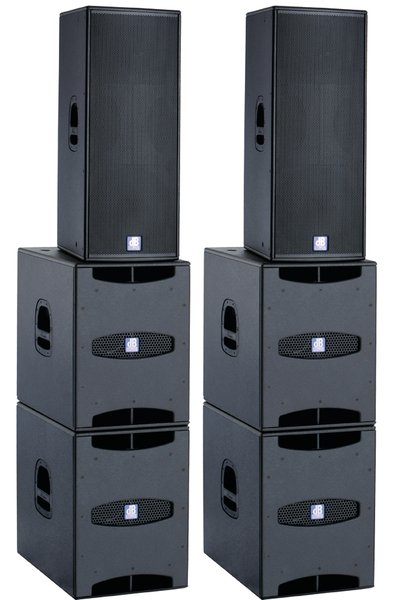

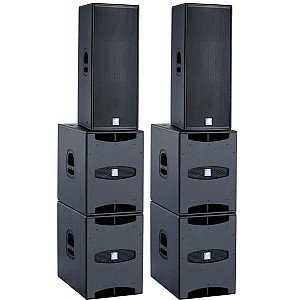

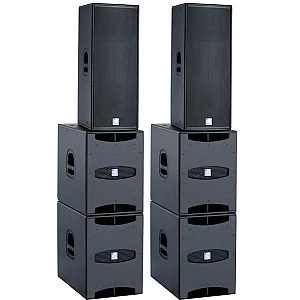

A very efficient and powerful mid-/high-range unit, it was designed to be combined with active subwoofers to construct high-performance PA systems. Loaded with two 12“ woofers, this assertive cabinet throws sounds across considerable distances, performing exceedingly well in the low midrange.

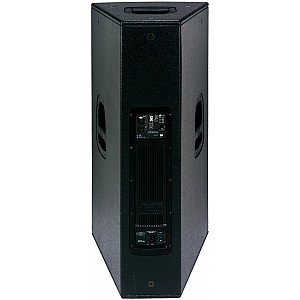

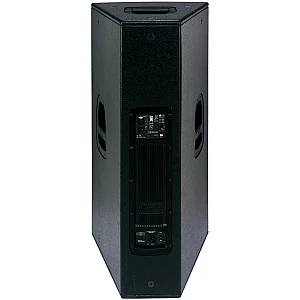

Its excellent directivity comes courtesy of ADC (Acoustical Directivity Control) technology that also allows F212 enclosures to be clustered to achieve wider coverage. The cabinet is driven by two bi-amped digipro® Class-D digital power amps with switched-mode power supplies offering PFC to ensure peak performance even under less-thanperfect live conditions.  A custom-engineered, array-enabled 60° x 40° CD horn, coupled to a next-generation 1“ neodymium compression driver, delivers assertive, high-definition response throughout the upper frequency range.

Specification

• Speaker Type: Quasi 3-Way Active Speaker
• Acoustical data
• Frequency Response [-10dB]: 50 - 20.000 Hz
• Frequency Response [+/- 3dB]: 65 - 19.000 Hz
• Max SPL: 132 dB
• HF: 1 "
• Type HF: neodymium compression driver
• Directivity: 60 x 40 °
• Horn: CD Horn
• Rotatable Horn: YES
• LF: 2x12" (with phase plug)
• Amplifier
• Amp Technology: Digipro®
• Amp Class: Class D
• Power RMS: 1000 W
• Peak Power: 2000 W
• Processor
• Controller: DSP 24bit/48kHz
• System Presets: Flat, Clustered
• Limiter: Dual Active Peak, RMS, Thermal
• Crossover Frequency LF-HF: 1800 Hz
• Slope LF-HF: 24 dB/Octave
• Input
• Mechanics
• Housing: Multiplex
• Width: 360 mm (14.4 in)
• Height: 930 mm (37.2 in)
• Depth: 500 mm (20 in)
• Weight: 31.5 kg (69.45 lbs)
