Celestion

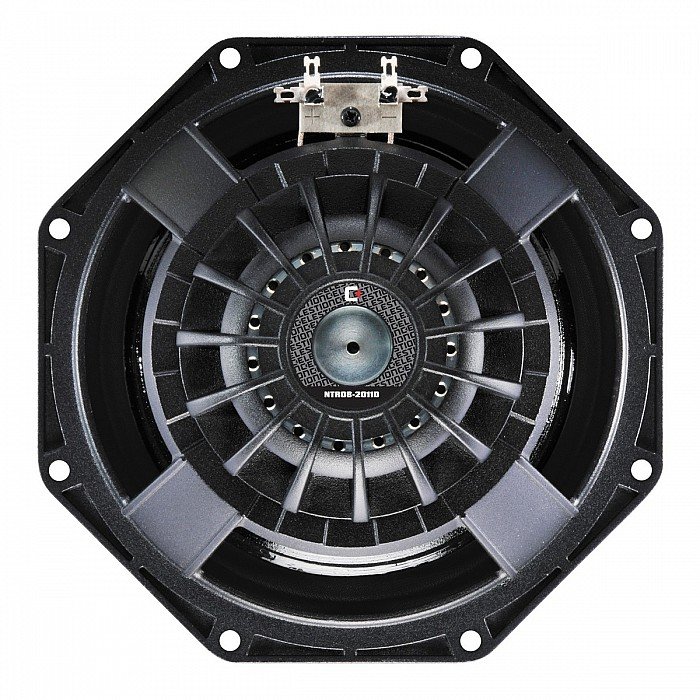

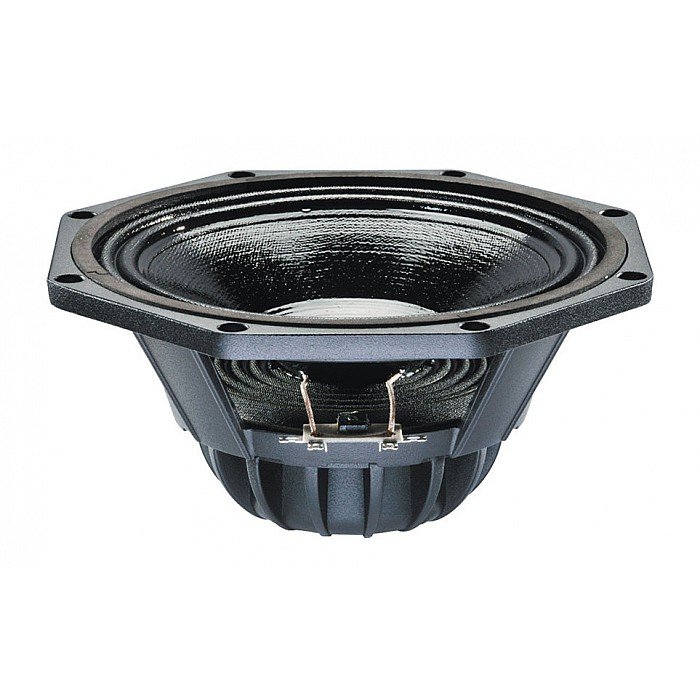

Celestion NTR08-2011D 8" Neodymium Woofer 8 Ohm
Rp.1.300.000,00
Tersedia
Spesifikasi Celestion NTR08-2011D 8" Neodymium Woofer 8 Ohm
Celestion NTR08-2011D 8" Neodymium Woofer 8 Ohm
Celestion NTR08-2011D 8" Neodymium Woofer 8 Ohm
The neodymium NTR08-2011D 8", from Celestion, incorporates a 2" copper voice coil, and a copper-sleeved pole for reduced inductance. An octagonal chassis profile is great for line array applications, while the M-roll cloth surround allows for progressive excursion control, and generates a smooth frequency response. Intelligent heat management built into the motor assembly and chassis enables reduced thermal compression.
Features
- 8" neodymium magnet driver providing 200Wrms (AES standard) power handling and 92dB sensitivity
- 2" high temperature copper voice coil
- Suitable for line array applications, utilizing a space-efficient octagonal chassis profile
- Optimized flux distribution in magnet assembly provides low harmonic distortion
- "M-Roll" surround provides progressive excursion control, generating a smooth frequency response
- Intelligent heat management in both chassis and magnet assembly design offers reduced thermal compression
Specifications
- Nominal Diameter8"Power Handling (RMS)200 Watts
- Power Handling (max)400 WattsImpedance8 ohms
- Frequency Response70 to 6,000 HzSensitivity92 dB 1W/1m
- Voice Coil Diameter2"
Thiele-Small Parameters
- Resonant Frequency (Fs)80.30 HzDC Resistance (Re)5.85 ohms
- Voice Coil Inductance (Le)0.59 mHMechanical Q (Qms)1.33
- Electromagnetic Q (Qes)0.59Total Q (Qts)0.41
- Compliance Equivalent Volume (Vas)0.39 ft.³Mechanical Compliance of Suspension (Cms)0.16 mm/N
- BL Product (BL)11.22 TmDiaphragm Mass Inc. Airload (Mms)25.33g
- Moving Mass Of Diaphragm (Mmd)23.39Maximum Linear Excursion (Xmax)4 mm
Materials of Construction
- Cone MaterialPaper / KevlarSurround MaterialCloth
- Voice Coil Wire MaterialCopperVoice Coil FormerKapton® / Polyimide
- Magnet MaterialNeodymium
Celestion NTR08-2011D 8" Neodymium Woofer 8 Ohm
Harga:
Rp.1.300.000,00
Spesifikasi Celestion NTR08-2011D 8" Neodymium Woofer 8 Ohm
Celestion NTR08-2011D 8" Neodymium Woofer 8 Ohm
Celestion NTR08-2011D 8" Neodymium Woofer 8 Ohm
The neodymium NTR08-2011D 8", from Celestion, incorporates a 2" copper voice coil, and a copper-sleeved pole for reduced inductance. An octagonal chassis profile is great for line array applications, while the M-roll cloth surround allows for progressive excursion control, and generates a smooth frequency response. Intelligent heat management built into the motor assembly and chassis enables reduced thermal compression.
Features
- 8" neodymium magnet driver providing 200Wrms (AES standard) power handling and 92dB sensitivity
- 2" high temperature copper voice coil
- Suitable for line array applications, utilizing a space-efficient octagonal chassis profile
- Optimized flux distribution in magnet assembly provides low harmonic distortion
- "M-Roll" surround provides progressive excursion control, generating a smooth frequency response
- Intelligent heat management in both chassis and magnet assembly design offers reduced thermal compression
Specifications
- Nominal Diameter8"Power Handling (RMS)200 Watts
- Power Handling (max)400 WattsImpedance8 ohms
- Frequency Response70 to 6,000 HzSensitivity92 dB 1W/1m
- Voice Coil Diameter2"
Thiele-Small Parameters
- Resonant Frequency (Fs)80.30 HzDC Resistance (Re)5.85 ohms
- Voice Coil Inductance (Le)0.59 mHMechanical Q (Qms)1.33
- Electromagnetic Q (Qes)0.59Total Q (Qts)0.41
- Compliance Equivalent Volume (Vas)0.39 ft.³Mechanical Compliance of Suspension (Cms)0.16 mm/N
- BL Product (BL)11.22 TmDiaphragm Mass Inc. Airload (Mms)25.33g
- Moving Mass Of Diaphragm (Mmd)23.39Maximum Linear Excursion (Xmax)4 mm
Materials of Construction
- Cone MaterialPaper / KevlarSurround MaterialCloth
- Voice Coil Wire MaterialCopperVoice Coil FormerKapton® / Polyimide
- Magnet MaterialNeodymium
