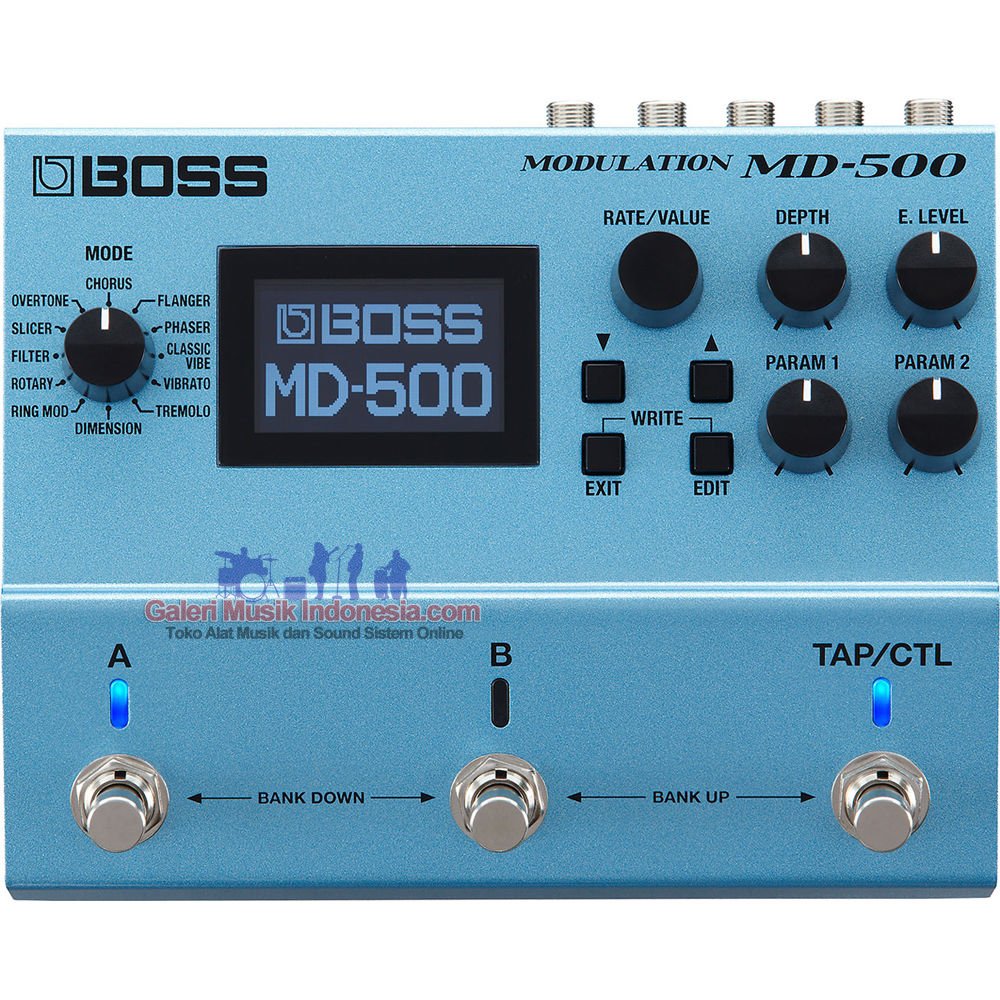

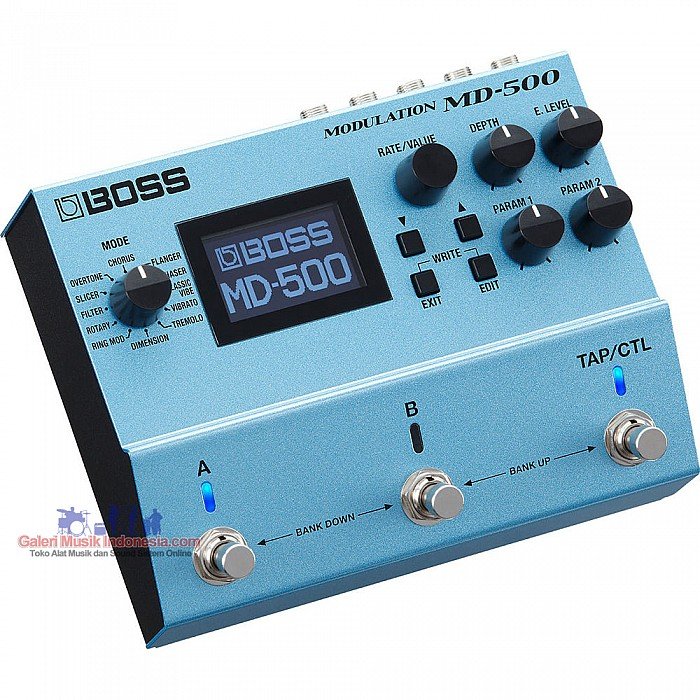

BOSS Boss MD-500 Modulation Effects Pedal Boss MD-500 Modulation Effects Pedal

Spesifikasi Boss MD-500 Modulation Effects Pedal

Boss MD-500 Modulation Effects Pedal

The MD-500 provides its sound using 32-bit AD/DA conversion, 32-bit floating-point processing, and sampling rates of 96 kHz, in order to achieve a large and precise range of expression while maintaining utter transparency, free of unwanted digital artifacts. With a panoply of parameters in every effects type, you’ll find more than enough control for shaping your tone. In addition to dedicated panel knobs for effect depth and level, you’ll also be able to perform extensive editing via the LCD screen and quadrumvirate of push-buttons. A tap tempo/control footswitch offers more in the way of on-the-fly manipulation, while the A and B footswitches provide bank selection tools, as well as multiple instantiation options, such as A/B Simul (two effects patches at once in either series or parallel), or parallel to do different destinations via the stereo outputs on the real panel.

Speaking of I/O, the MD-500 gives you a bevy of possibilities, what with its dual inputs for stereo instruments, dual outputs, expression/control jack, and MIDI I/O. All in all, you’ll find 297 built-in patch memories in the unit itself, though you can also interface via USB with Editor/Librarian software on your computer for remote editing, storing your custom patches, and more. This pedal runs on four AA batteries, or by means of a power adapter, available separately.

A/B Simul Mode and Insert Loop Function Explained

A/B Simul lets you run two patches at once. A selectable series or parallel connection enables all sorts of tone-shaping possibilities, and you can even send each effect to its own separate output if you like. The MD-500 also features an external loop that lets you insert gain and drive pedals, and set the ideal effect order on a per-patch basis. For example, you can place a phaser or classic vibe before a drive pedal in one patch, while putting a flanger after the drive in the next. When you're in A/B Simul mode, it's even possible to position the loop between two different mod effects.

Control Possibilities

The MD-500 offers freely assignable switches and extensive real-time controls. By default, the A, B, and TAP/CTL switches offer control for patch/bank selection and bypass, plus tap tempo or real-time adjustment of one or more parameters. However, the switches can be customized to access three different mod patches, A/B Simul mode, and other functions. Via the rear-panel CTL 1,2/EXP jack, you can plug in up to two footswitches for further control, or an expression pedal to adjust wah, effect rate, and other parameters. MIDI I/O is also included, enabling further creative possibilities with advanced setups.

Key Features at a Glance

  • Effects delivered with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sample rate
  • 12 modes and 28 modulation types, all with extensive editing parameters
  • Classic, though updated, BOSS modulation effects
  • A/B Simul mode for using two patches at once, with your choice of series/parallel connection, mixed, or split A/B output
  • Insert Loop function allows you to use mod effects before, after, or around drive pedals
  • Graphic LCD and intensive real-time control options
  • 297 onboard patch memories and hands-on controls
  • Selectable buffered-bypass or true-bypass operation
  • MIDI I/O for interfacing with MIDI control devices
  • USB-MIDI for connecting to the MD-500 Editor/Librarian or a DAW
  • Runs on four AA-size batteries or PSA-series AC adapter (available separately)

Effect Types

  • Chorus: Prime, CE-1 Chorus, CE-1 Vibrato, and TRI-CHO
  • Flanger: Prime G (for guitar) and Prime B (for bass)
  • Phaser: Prime G (for guitar), Prime B (for bass), and Script
  • Classic Vibe: Chorus (mixed output) and Vibrato (effect-only output)
  • Vibrato: Prime and Scanner (a tonewheel organ-style vibrato)
  • Tremolo: Prime T and Prime P, plus Twin and Deluxe amp-style tremolo
  • Dimension: Models Roland SDD-320 Dimension D rack unit; includes the original four sound modes and a fifth mode new to the lineup, plus a user setting for saving any combination of modes
  • Ring Mod: Classic ring modulation effects, plus Intelligent mode for enhanced clarity when playing scales
  • Rotary: Vintage rotating speaker effect with slow and fast speeds
  • Filter: Auto wah and touch wah (with independent types optimized for guitar and bass), plus pattern filter type
  • Slicer: Original BOSS effect derived from the popular SL-20 Slicer, with programmable options not available in the SL-20 pedal
  • Overtone: Original BOSS effect based on the MO-2 Multi Overtone pedal; uses MDP tech to alter the input signal’s pitch and harmonic characteristics, allowing you to create interesting sound textures



Specs

Sampling Frequency96 kHz
AD/DA Conversion32-bit
Processing32-bit floating point
Modes12x (chorus, flanger, phaser, classic vibe, vibrato, tremolo, dimension, ring mod, rotary, filter, slicer, overtone)
Memory198 (2 x 99 banks, segmented into A and B categories)
297 (3 x 99 banks, segmented into A, B, and C categories)
Nominal Input Level-10 dBu
Maximum Input Level8 dBu
Nominal Output Level-10 dBu
Maximum Output Level8 dBu
ImpedanceInputs: 1 MOhm
Outputs: 2 kOhm
Recommended Load ImpedanceOutputs: 20 kOhms or greater
ControlsA Switch
B Switch
TAP/CTL Switch
DOWN Button
UP Button
EXIT Button
EDIT Button
MODE Knob
RATE/VALUE Knob
DEPTH Knob
E.LEVEL Knob
PARAM 1 Knob
PARAM 2 Knob
BypassBuffered or true (with relays)
DisplayGraphic LCD (128 x 64 dots, backlit LCD)

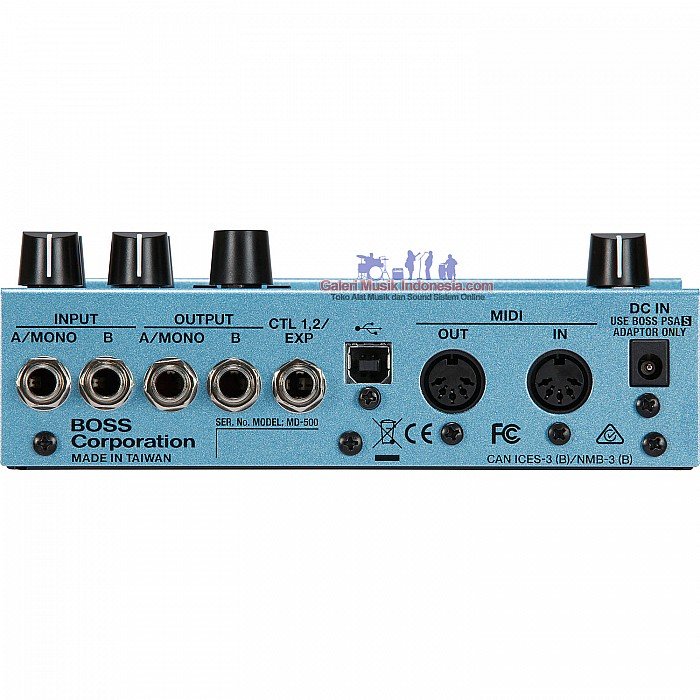

I/O2 x 1/4" Input jack, phone type
2 x 1/4" Output jacks, phone type
1 x 1/4" TRS CTL1, 2/EXP2 jack, phone type
1 x USB Type-B computer port
1 x 5-Pin DIN MIDI Input
1 x 5-Pin DIN MIDI Output
1 x DC input jack for power
Power Supply4 x AA batteries (LR6), AC adapter (available separately)
Current Draw225 mA
Expected Battery LifeAlkaline: approximately 4.5 hours, depending on condition of use
Dimensions (W x D x H)6.7 x 5.4 x 2.4" / 17.0 x 13.8 x 6.2 cm
Weight2.2 lb / 1.0 kg (including battery)
Rp.5.600.000,00Tersedia

Boss MD-500 Modulation Effects Pedal

Merek: BOSS
Kode Produk: Boss MD-500
Ketersediaan: Tersedia
Harga:
Rp.5.600.000,00
