Spesifikasi Boss BCB90X Pedalboard

Boss BCB90X Pedalboard

Create Custom Layouts with Your Favorite Footsteps
Evolved from the famous BOSS BCB-60 pedalboard used by players for nearly two decades, the next generation BCB-90X provides even more versatility for modern pedal tuning. Customizable inserts let you create personalized layouts with a variety of pedal types, including BOSS compacts, GT-1000CORE and 200-/500 series pedals, loop switchers, volume/expression pedals, and more. The rugged molded construction offers great looks, durability and light weight, while the internal junction box makes connection at the show quick and easy.

Lightweight, Durable and Stable

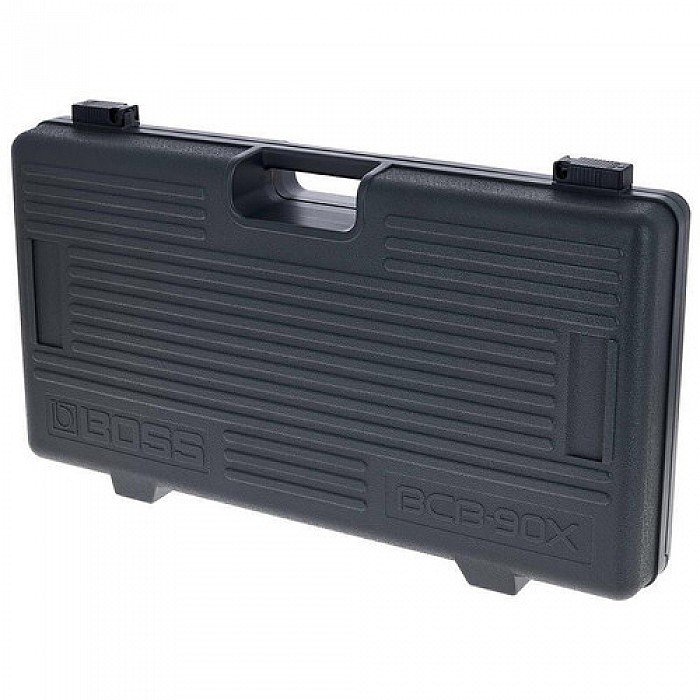

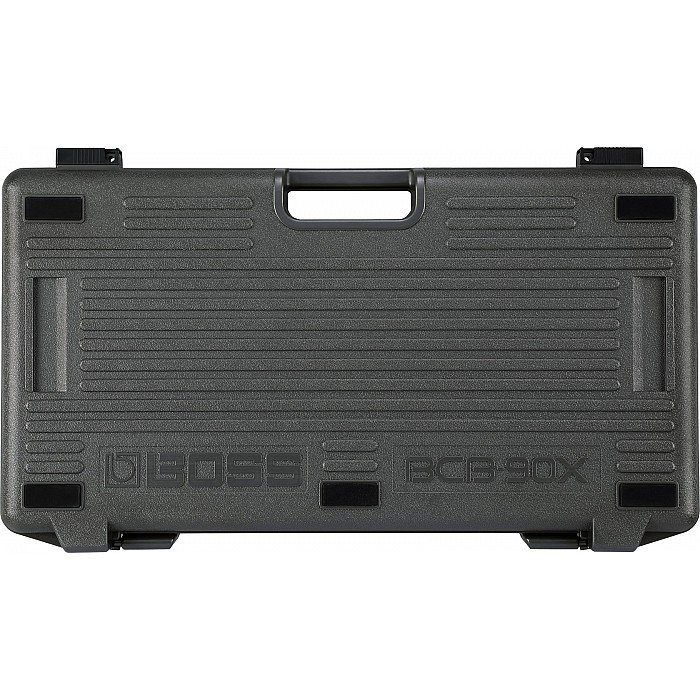

The BCB-90X features the same rugged molded construction as the renowned BCB series, offering maximum protection for your pedals while minimizing weight. The integrated lid locks securely and can be removed in seconds, so you're ready to play in an instant. The foam lining on the inside of the lid protects your pedals on the move, and the rubber feet on the bottom provide a secure grip without scratching the floor.

Features

• Next generation BCB series pedalboards, updated for modern pedal tuning

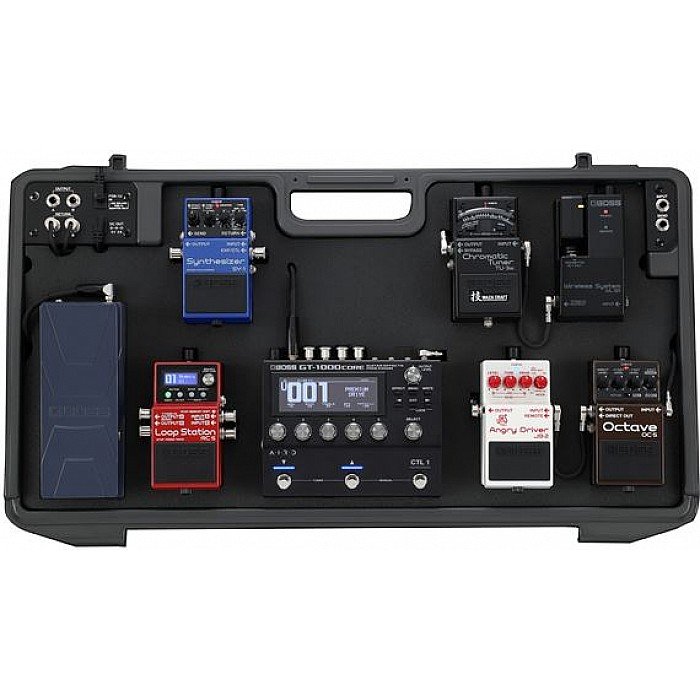

• Accommodates a variety of pedal sizes, including BOSS compacts, GT-1000CORE multi-effect, 200-/500-series pedals, loop switcher, and more
• The adjustable high-density foam insert holds the pedal in place
• Integrated cable guide channels under inserts for neat cabling
• Lightweight and sturdy molded design with removable lid
• Internal junction box for instrument input, mono/stereo output and power
• Includes daisy-chain cable and PSB-1U adapter to power up to ten pedals
•

Specification

Connectors

• INPUT Jack (1/4" phone type)
• SEND Jack (1/4" phone type)
• RETURN A/B Jack (1/4" phone type)
• OUTPUT A/B Jack (1/4" phone type)
• DC IN/OUT Jack
• Power Supply
• DC 9V: AC adaptor

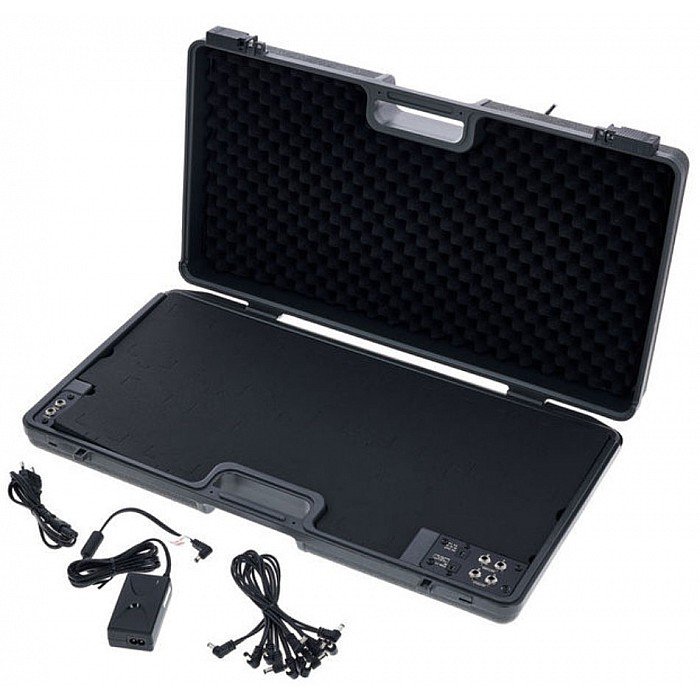

• Accessories
• AC adaptor(PSB-1U + AC Cable Set)
• 10-pin parallel DC cable x 1
• Pre-cut insert pad (thickness:10mm) x 1
•

Owner's Manual

• Option (sold separately)
• AC adaptor (PSB-1U)

*When purchasing an AC adaptor, be sure to specify the adaptor (from the list that follows) that is designed for the region in which it will be used, and the voltage supplied there.

(PSB-120/PSB-120TW/PSB-230EU/PSB-230UK/PSB-240A)

Pre-cut insert pad (thickness:10mm)

SIZE AND WEIGHT

Width 661 mm

26-1/16 inches

Depth 383 mm
15-1/8 inches

Height 113 mm
4-1/2 inches

Weight 3.3 kg
7 lbs. 5 oz.
