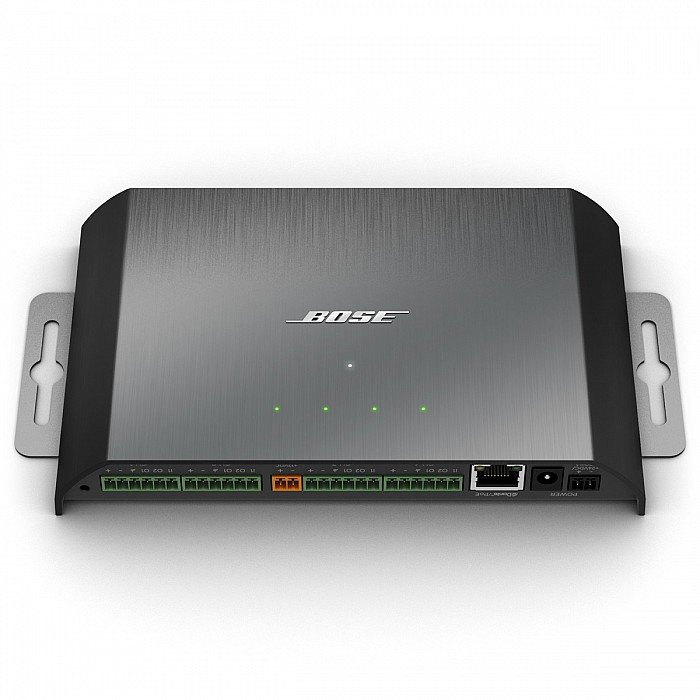

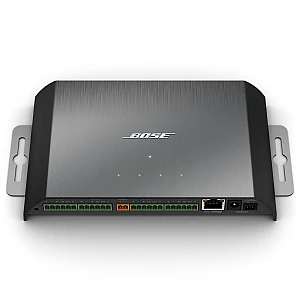

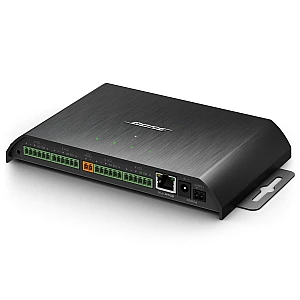

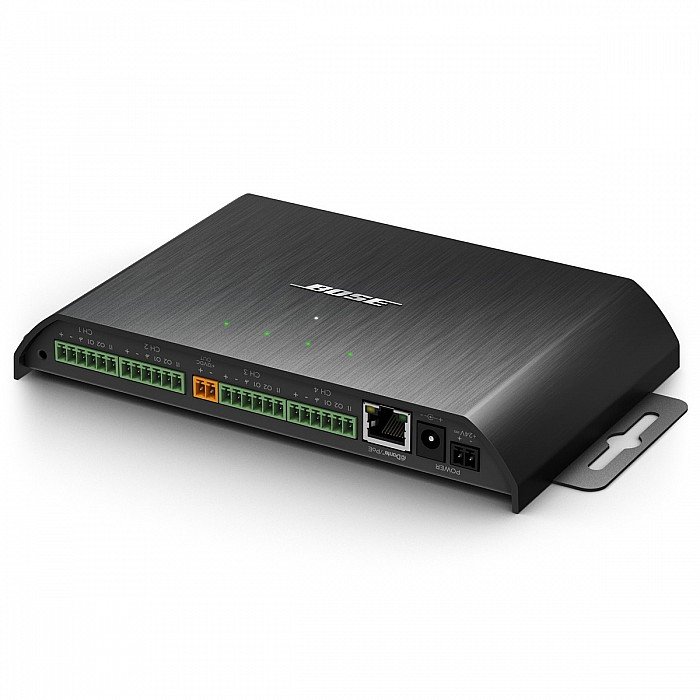

Bose ControlSpace EX 4ML Mic/GPIO Dante Endpoint

Spesifikasi Bose ControlSpace EX 4ML Mic/GPIO Dante Endpoint

Bose ControlSpace EX 4ML Mic/GPIO Dante Endpoint

Optimized for use with the EX-1280C, the EX-4ML Dante™ endpoint, is a convenient, cost effective solution for connecting up to 4 conferencing microphones over a single cat-5/6 cable. Whether used under a conference table, daisy-chained with other EX or endpoints, or standalone in a rack, the EX-4ML adds 4 high-quality microphone/line inputs, 4 GPI, and 8 GPO to your networked audio system. Autodiscovery, drag and drop programming, auto-routing, and simplified logic control in ControlSpace® Designer™ make configuring the EX-4ML easy. Tasks such as configuring microphone LED status and microphone mute actions are greatly simplified within ControlSpace Designer without requiring external control system programming.

Key Features

• One-cable-from-the table connectivity supports PoE+, Dante™ audio networking, logic I/O and LED power to maximize ease of integration
• Broad conference microphone compatibility with 4 high-quality mic/line input channels, each featuring 48V phantom power, 12V LED power, 1 logic input and 2 logic outputs for interfacing with microphone pushbuttons and indicators
• Dante™ audio networking for connection to other Dante-enabled products over Ethernet-based networks
• Dual network and power connectors allow daisy-chaining of multiple EX endpoints
• Rotatable mounting tabs allow for multiple mounting options
• Low-profile aluminum enclosure with integrated LED indicators for unobtrusive under-table mounting
• Simplified software configuration via ControlSpace Designer software. Supports autodiscovery, auto-routing, and logic presets for microphone LEDs and pushbuttons
• Optional installation accessories include a magnetic mounting plate for single-handed under-table mounting, a microphone extension cable, and a 60 W power supply
• Power and signal indicators
