Spesifikasi Beyerdynamic TG I53 Condenser Instrument Microphone (Cardioid)

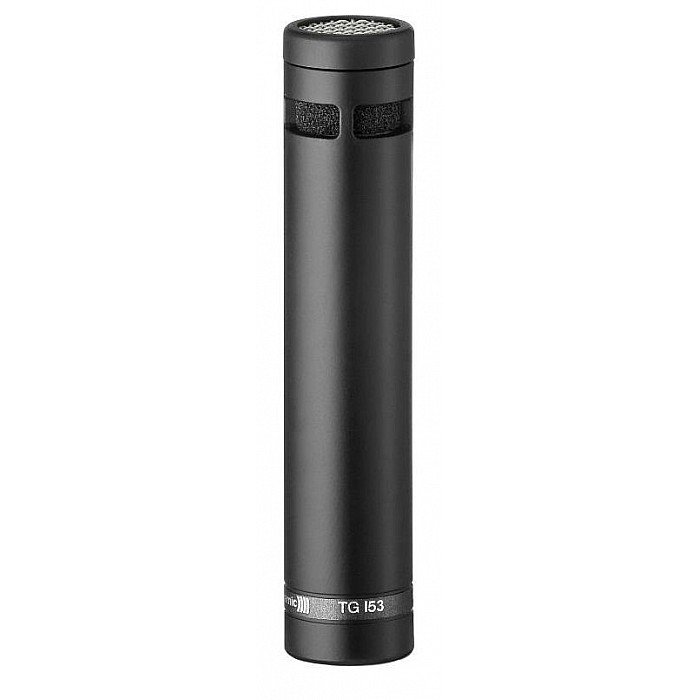

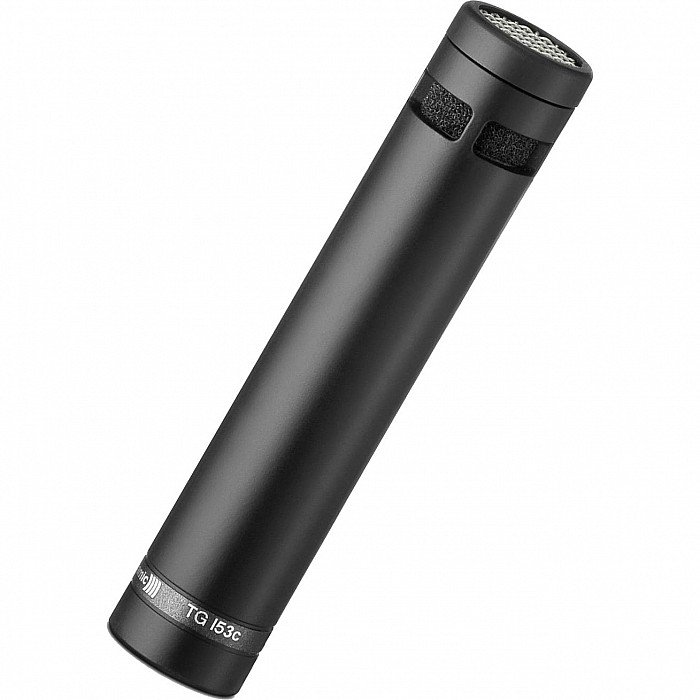

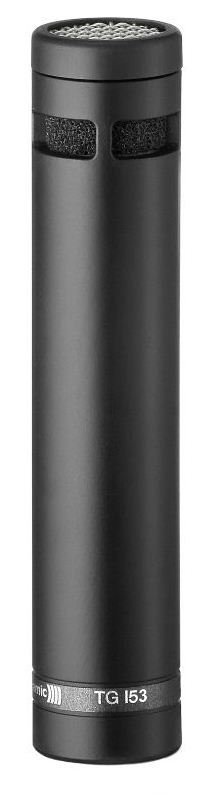

Beyerdynamic TG I53 Condenser Instrument Microphone (Cardioid)

The TG I53c condenser microphone features a wide frequency response that creates a host of possibilities. The Beyerdynamic mic is suitable for miking hi-hats, overheads, percussion, string, brass instruments and even choirs. The TG I53c provides a subtle treble boost with high sensitivity, ideal for larger microphone placement distances. Its lightweight, and robust construction make it easy to mount and is sure to last.

Included In The Box

• 1 x TG I53c Condenser Microphone
• 1 x Microphone Clamp

Features

• Cardioid polar pattern
• High sound pressure level capability
• Carbon fibre casing
• Robust construction
• Slim, unobtrusive design
• Optimally positioned treble resonator
• Frequency independent polar pattern

Specifications

• Transducer Type: Condenser (Back Electret)
• Operating Principle: Pressure Gradient
• Polar Pick-Up Pattern: Cardioid
• Frequency Response
  • Close Miking: 20Hz - 20kHz
  • Distant Miking (Measured At 1 Metre): 35Hz - 20kHz
• Open Circuit Voltage: 6.8 mV/Pa (-43.4 dBV) ± 2.5 dB*
• Nominal Impedance: 200 Ω
• Load Impedance: ≥ 1000 Ω
• Max Sound Pressure Level (SPL) At 24 V & 48 V Phantom Power: 140 dB
• S/N Ratio: 61 dB (CCIR; Q-Peak). 71 dB (A; RMS)
• Equivalent SPL: 23 dB (A; RMS). 33 dB (CCIR; Q-Peak)
• Power Supply: Phantom Power 12 - 48 V (Recommended 48 V)
• Power Consumption: 4.7 mA
• Connection: 3-Pin XLR, Male
• Dimensions: 100 x 19.5 mm
• Weight (Without Cable): 36 g
