The TG Drum Sets offer high-performance drum microphones from the Touring Gear series. Four sets are available -TG Drum Set PRO S and M, such as TG Drum Set PRO L und XL.

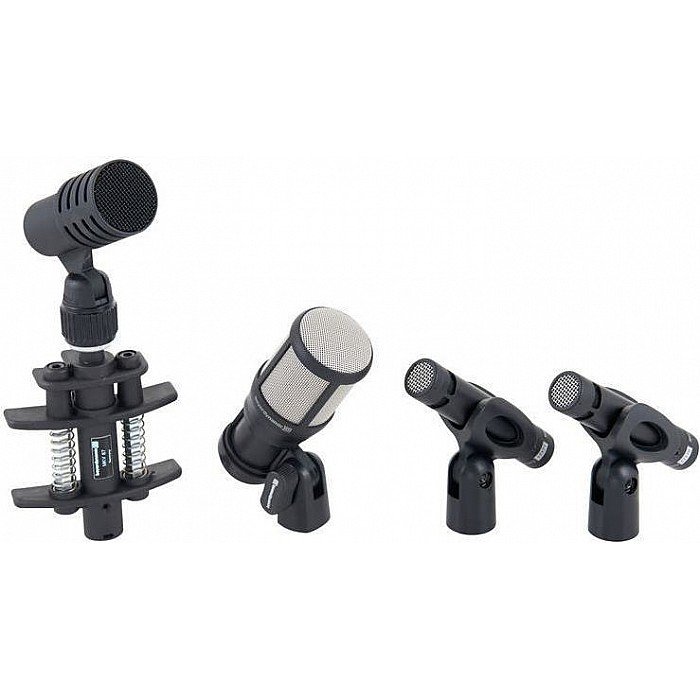

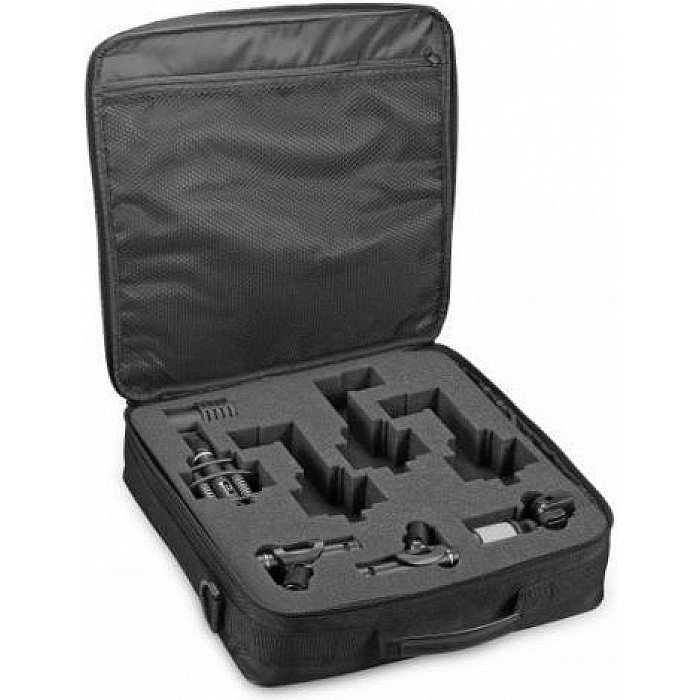

The sets S and M include a durable soft bag which can be equipped with four TG D35d (toms and snare), two TG I53c (overheads), and one TG D50d (bass drum). Microphone clamps are included.
Specifications
| TG D50d | |
| Transducer type | Dynamic |
| Operating principle | Pressure gradient |
| Polar pattern | Cardioid |
| Frequency response | |
| Close miking (switch position LIN) | 50 - 17,000 Hz |
| Close miking (switch position EQ) | 20 - 15,000 Hz |
| Distant miking (switch position LIN, measured at 1 m) | 80 - 17,000 Hz |
| Open circuit voltage | |
| (switch positon LIN) | 2.4 mV/Pa (-52.5 dBV) ±3 dB |
| (switch positon EQ) | 0.9 mV/Pa (-60.9 dBV) ±3 dB |
| Nominal impedance | |
| (switch position LIN) | 600 Ω |
| (switch position EQ) | 200 Ω |
| Load impedance | ≥ 2 kΩ |
| Connection | 3-pin XLR connector, male |
| Length | 104 mm |
| Shaft diameter | 24 mm |
| Head diameter | 41 mm |
| Weight (without clamp) | 134 g |
| Weight (with clamp) | 189 g |
| TG D35d | |
| Transducer type | Dynamic |
| Operating principle | Pressure gradient |
| Polar pattern | Supercardioid |
| Frequency response | |
| Close miking | 50 - 14,000 Hz |
| Distant miking (distance 1 m) | 60 - 14,000 Hz |
| Open circuit voltage | 2.2 mV/Pa (-53 dBV) ±3 dB |
| Nominal impedance | 600 Ω |
| Load impedance | ≥ 2 kΩ |
| Connector | 3-pin XLR, male |
| Dimensions | |
| Length | 72 mm |
| Shaft diameter | 28.5 mm |
| Head diameter | 35 mm |
| Weight (without clamp) | 95 g |
| TG I53c | |
| Transducer type | Condenser (back electret) |
| Operating principle | Pressure gradient |
| Polar pattern | Cardioid |
| Frequency response | |
| Close miking | 20 - 20,000 Hz |
| Distant miking (measured at 1 m) | 35 - 20,000 Hz |
| Open circuit voltage | 6.8 mV/Pa (-43.4 dBV) ±2.5 dB |
| Nominal impedance | 200 Ω |
| Load impedance | ≥ 1 kΩ |
| Max. SPL at 24 V and 48 V phantom power | 140 dB |
| S/N ratio | 61 dB [CCIR; Q-Peak] 71 dB [A; RMS] |
| Equivalent SPL | 23 dB [A; RMS] 33 dB [CCIR; Q-Peak] |
| Power supply | Phantom power: 12 - 48 V (recommended: 48 V) |
| Power consumption | 4.7 mA |
| Connection | 3-pin XLR, male |
| Dimensions | 100 x 19.5 mm |
| Weight (without clamp) | 36 g |
The TG Drum Sets offer high-performance drum microphones from the Touring Gear series. Four sets are available -TG Drum Set PRO S and M, such as TG Drum Set PRO L und XL.
The sets S and M include a durable soft bag which can be equipped with four TG D35d (toms and snare), two TG I53c (overheads), and one TG D50d (bass drum). Microphone clamps are included.
Specifications
| TG D50d | |
| Transducer type | Dynamic |
| Operating principle | Pressure gradient |
| Polar pattern | Cardioid |
| Frequency response | |
| Close miking (switch position LIN) | 50 - 17,000 Hz |
| Close miking (switch position EQ) | 20 - 15,000 Hz |
| Distant miking (switch position LIN, measured at 1 m) | 80 - 17,000 Hz |
| Open circuit voltage | |
| (switch positon LIN) | 2.4 mV/Pa (-52.5 dBV) ±3 dB |
| (switch positon EQ) | 0.9 mV/Pa (-60.9 dBV) ±3 dB |
| Nominal impedance | |
| (switch position LIN) | 600 Ω |
| (switch position EQ) | 200 Ω |
| Load impedance | ≥ 2 kΩ |
| Connection | 3-pin XLR connector, male |
| Length | 104 mm |
| Shaft diameter | 24 mm |
| Head diameter | 41 mm |
| Weight (without clamp) | 134 g |
| Weight (with clamp) | 189 g |
| TG D35d | |
| Transducer type | Dynamic |
| Operating principle | Pressure gradient |
| Polar pattern | Supercardioid |
| Frequency response | |
| Close miking | 50 - 14,000 Hz |
| Distant miking (distance 1 m) | 60 - 14,000 Hz |
| Open circuit voltage | 2.2 mV/Pa (-53 dBV) ±3 dB |
| Nominal impedance | 600 Ω |
| Load impedance | ≥ 2 kΩ |
| Connector | 3-pin XLR, male |
| Dimensions | |
| Length | 72 mm |
| Shaft diameter | 28.5 mm |
| Head diameter | 35 mm |
| Weight (without clamp) | 95 g |
| TG I53c | |
| Transducer type | Condenser (back electret) |
| Operating principle | Pressure gradient |
| Polar pattern | Cardioid |
| Frequency response | |
| Close miking | 20 - 20,000 Hz |
| Distant miking (measured at 1 m) | 35 - 20,000 Hz |
| Open circuit voltage | 6.8 mV/Pa (-43.4 dBV) ±2.5 dB |
| Nominal impedance | 200 Ω |
| Load impedance | ≥ 1 kΩ |
| Max. SPL at 24 V and 48 V phantom power | 140 dB |
| S/N ratio | 61 dB [CCIR; Q-Peak] 71 dB [A; RMS] |
| Equivalent SPL | 23 dB [A; RMS] 33 dB [CCIR; Q-Peak] |
| Power supply | Phantom power: 12 - 48 V (recommended: 48 V) |
| Power consumption | 4.7 mA |
| Connection | 3-pin XLR, male |
| Dimensions | 100 x 19.5 mm |
| Weight (without clamp) | 36 g |
