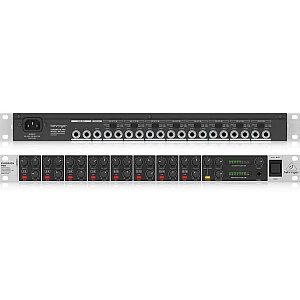

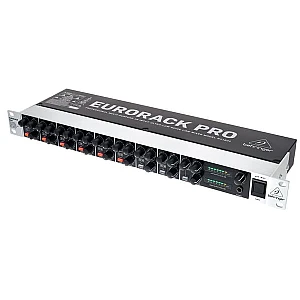

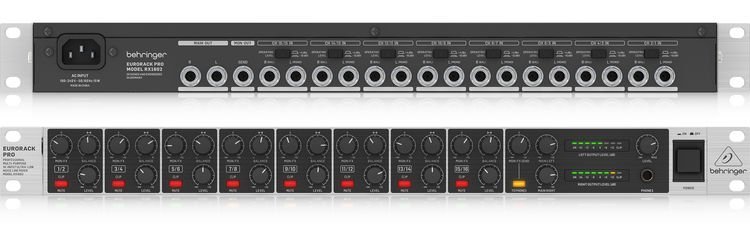

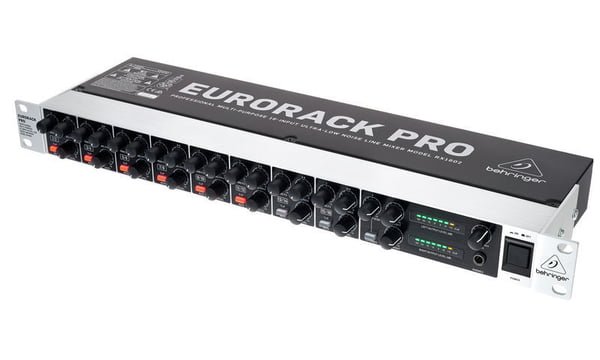

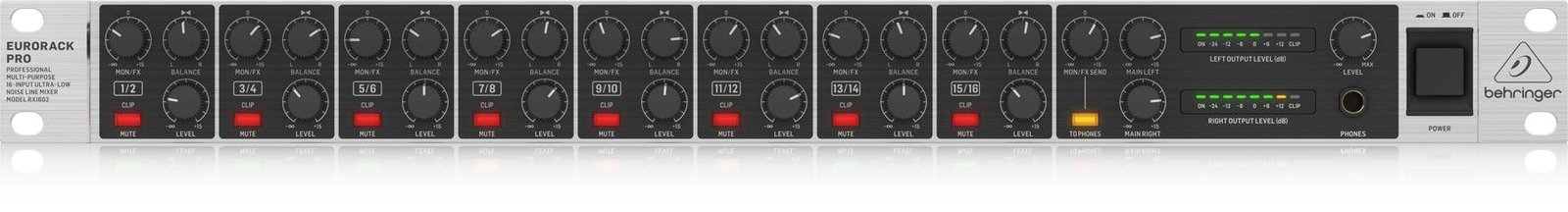

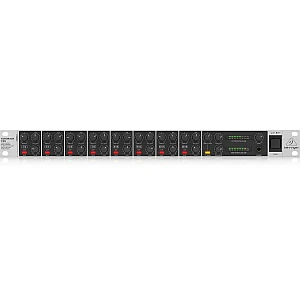

Behringer RX1602 V2 Rackmount Line Mixer

Super-flexible Multipurpose Line Mixer

The Behringer EURORACK PRO RX1602 V2 is a super-flexible, multipurpose line mixer. It’s ideal for submixing, multitrack monitoring, level matching, and a whole lot more. Its 16 balanced, high-headroom line inputs accommodate eight stereo or 16 mono sources. Each channel includes dedicated Balance and Level controls, along with a +4/-10 level selector, ensuring compatibility with a broad range of professional- and consumer-level gear. Flexible monitoring is yours with the RX1602 V2, thanks to a Monitor/FX Send control for each section, plus a global master send control.

For added versatility, the Monitor/FX signal is also assignable to your headphones. You also get an illuminated double-function Mute button/clip indicator for each section, which supplies at-a-glance input source/level information. The RX1602 V2 includes two 7-segment LED level meters and high-quality detented rotary controls. Everybody needs a line mixer — they’re invaluable in many situations — and the Behringer 1602 V2 gives you a lot of bang for your buck.

16 balanced, high-headroom line inputs
The EURORACK PRO RX1602 V2 comes loaded with 16 high-headroom Inputs that accommodate individual line-level instruments or component outputs. And thanks to the RX1602 V2’s Ultra-Low Noise (ULN) design, you can run all 16 inputs — at high levels — without sonic degradation. The RX1602 V2 delivers transparent results with minimal distortion — in short, it sounds great!

Loads of useful features
Each of the Behringer EURORACK PRO RX1602 V2’s dual-input channels boasts individual Balance and Level controls, along with an illuminated, double-function Mute button/clip indicator to ensure proper signal levels. A +4/-10 level selector on each channel ensures compatibility with both professional- and consumer-level gear. Dual 7-segment LED level meters and individual Left and Right Main level controls are also on tap. You also get a Monitor/FX Send control for each section for flexible monitoring, and you can assign the Monitor/FX signal to your headphones.

Features:

• Super-flexible, multipurpose 16-channel line mixer
• Ideal for submixing, multitrack monitoring, level matching, and a whole lot more
• 16 balanced, high-headroom line inputs accommodate 8 stereo or 16 mono sources
• Dedicated Balance and Level controls for each channel
• +4/-10 level selector on each channel ensures compatibility with both professional- and consumer-level gear
• Monitor/FX Send control for each section, plus a global master send control, for flexible monitoring
• Monitor/FX signal is also assignable to your headphones for added versatility
• Individual Left and Right Main level controls for balancing your output
• Double-function Mute button/clip indicator for each section supplies at-a-glance input source/level information
• Dual 7-segment LED level meters for keeping an eye on your levels
• High-quality detented rotary controls
•

Specs

• 16 Balanced jack inputs for stereo or mono use
• Large headroom
• Monitor / FX send control per section with global master control
• Monitor / FX signal via headphone output
• 2x 7-Segment LED level meters
• 6.3 mmJack headphone output on front panel
• Integrated switching power supply (100 - 240 V ~)
• Max. output level: +22 dBu
• Bandwidth: 20 Hz - 20 kHz ±0.2 dB
• Frequency range: 10 Hz - 200 kHz, ±3 dB
• Signal-to-noise ratio: < -97 dB
• THD: 0.003% @ +4 dBu
• Power consumption: 15 W
• Dimensions (H x W x D): 44 x 483 x 149 mm
• Weight: 1.8 kg
