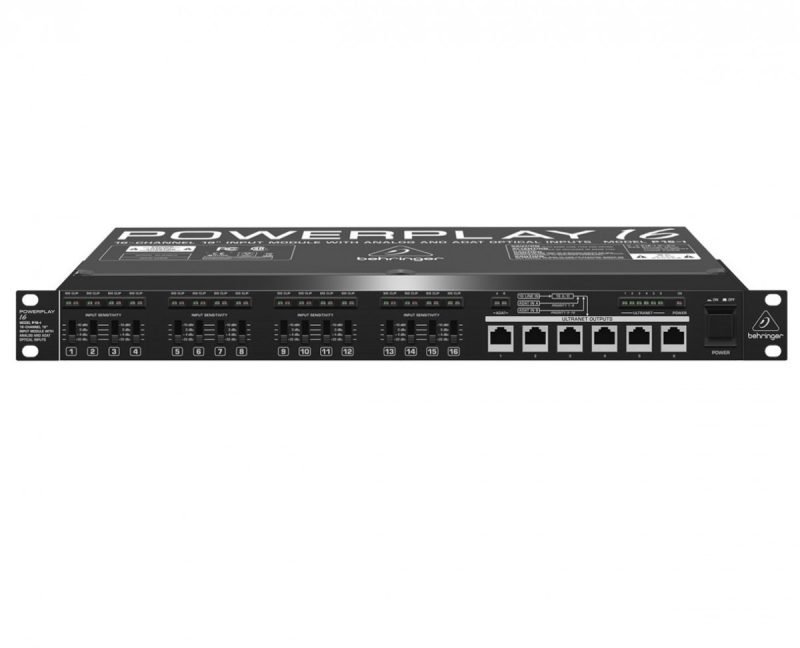

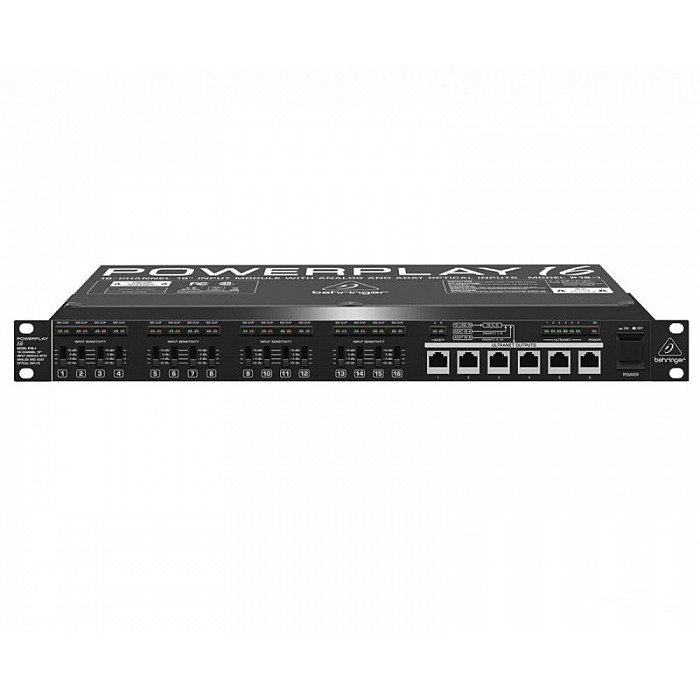

Behringer P16-I 16-channel Input Module

puts can be used to send audio from analog outputs to your P16-M mixers. An onboard switch allow you to choose from 4 gain positions per channel, while status LEDs on each channel provide at-a-glance monitoring.

Intuitive Installation

A basic installation consists of one P16-I input module which connects to the main mixing console and up to six P16-M personal mixers. All of the equiment can be connected together using standard audio cables and CAT 5e cables.

Features

• Converts 16 analog inputs into 24-bit digital audio to be transmitted via standard CAT5e cable
• 2 x 8-channel ADAT optical inputs with auto detect and priority select
• 16 balanced, high-headroom TRS audio inputs
• State-of-the-art 24-bit A/D converters for premium audio quality
• 4-position gain switch per channel
• Digital inputs support 44.1 and 48 kHz sample rates
• Ultra-low system latency of less than 1 millisecond
• Signal Present and Clip LEDs per channel plus ADAT status LEDs
• Standard CAT5e connection delivers power and signals for up to 6 Personal Mixers
• 6 ULTRANET expansion network connectors (RJ45)
• Internal switch mode power supply (100V - 240V)
• Designed and engineered in Germany

• Specifications

• A/D Conversion: 24-Bit, 44.1kHz/48kHz Sampling Rate
• Converter Type: 24-Bit, Delta-Sigma
• Latency: <0.9ms (From P16-I to P16-M)
• Frequency Response: 20Hz - 20kHz, +0dB/-3dB
• Dynamic Range: 92dB, Typical
• Power Supply: 220V - 240V
• Power Consumption: 35W
• Mains Connection: Stanard IEC Receptacle
• Dimensions: 44mm x 482mm x 190mm (H x W x D)
• Weight: 2.1kg

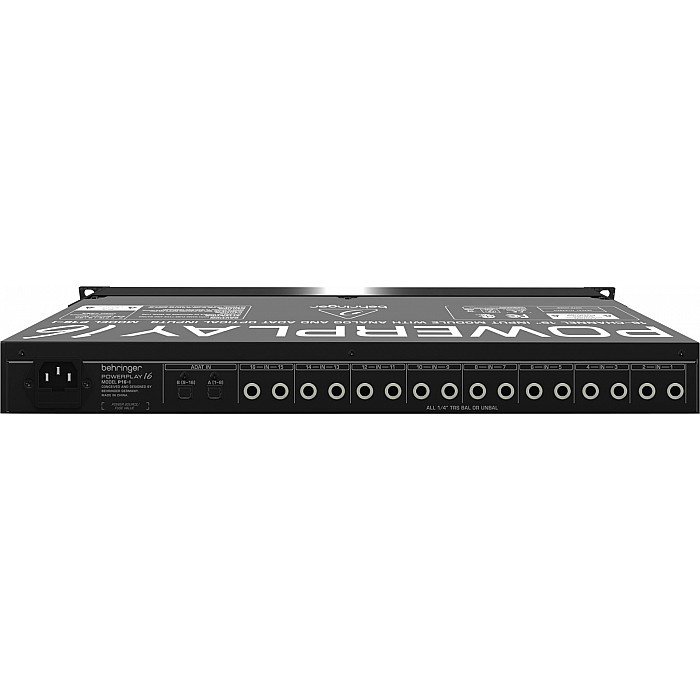

• Analog Inputs

• Connectors: 16 x 1/4'' TRS, Balanced, Line-Level
• Input Level: +4dBu Optimal / +22dBu Maximal
• Input Gain: -10dBV / 0dBV / +4dBu / +22dBu, Adjustable
• Gain Selector: 4-Position Switch (Per Channel)

• Digital Inputs

• Connectors: 2 x Optical
• Input Format: ADAT, 16-Bit/20-Bit/24-Bit, 44.1kHz/48kHz Sample Rate, 8 Channels
• Synchronisation: From ADAT Input A Only (External Clock)
• Indicators: 2 x LEDs
• Input Selection: Auto Select for Channels 1-8 / 9-16

• Digital Outputs

• Type: ULTRANET
• Connectors: 6 x RJ45
