Spesifikasi Audix VX10 Handheld Cardioid Condenser Microphone

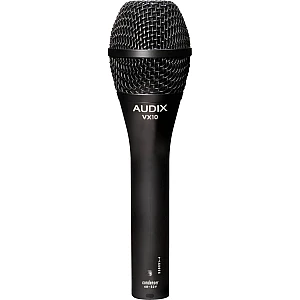

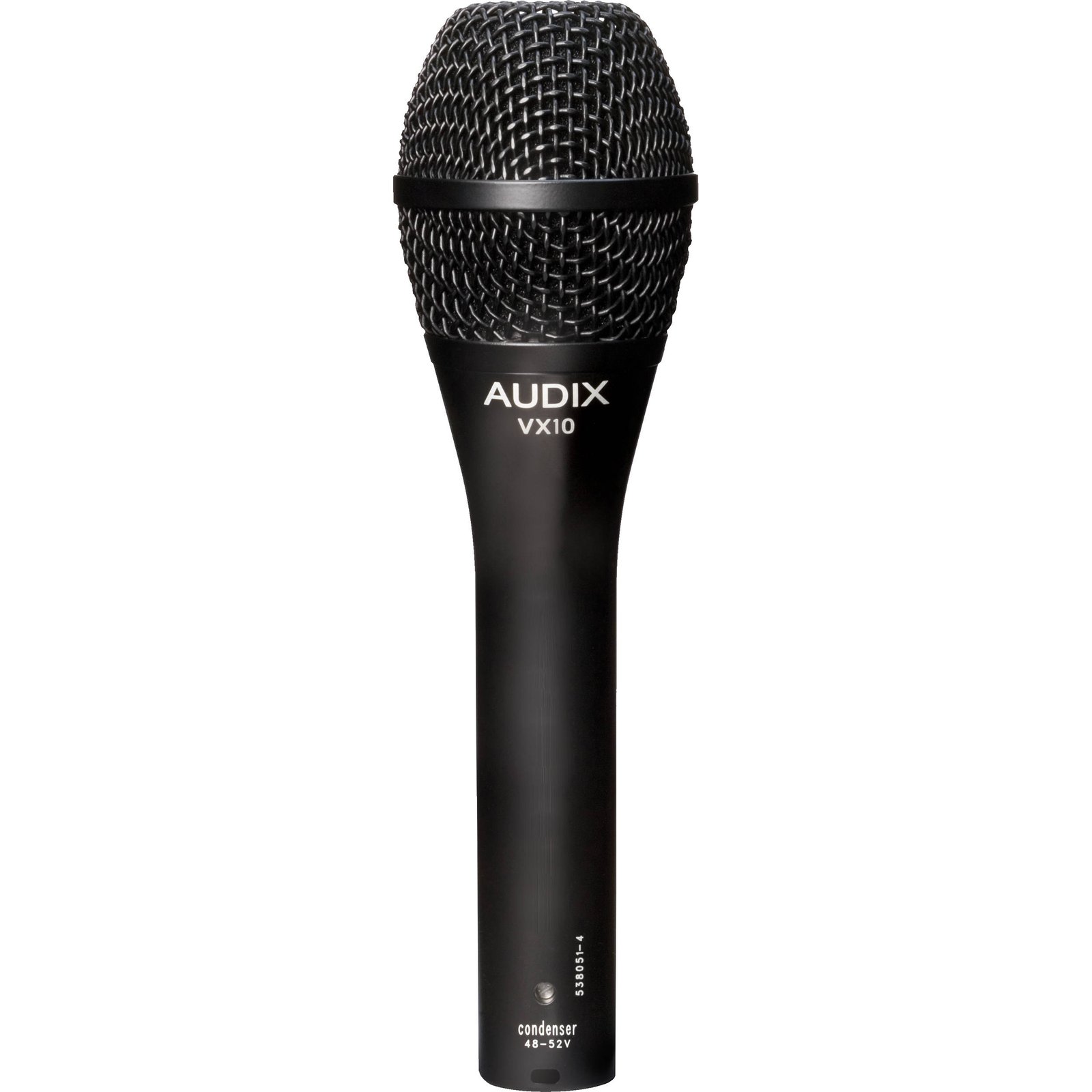

Audix VX10 Handheld Cardioid Condenser Microphone

The Audix VX-10 is a professional handheld condenser microphone designed for stage performances and broadcast applications. The wide frequency response of 40Hz to 20kHz enables the microphone to accurately reproduce signals with great detail. The result is the clarity necessary for professional performances without unwanted low frequency noise.

The cardioid polar pattern effectively rejects signal at the sides of the capsule, minimizing ambient noise and reducing feed-back. The VX-10 operates on 48V to 52V phantom power and low noise electronic circuitry with balanced output prevent interference from radio frequencies. The rugged enclosure is designed to withstand the rigors of heavy use.

Wide Frequency Response

• The wide frequency response provides detailed signal reproduction and minimizes noise and unwanted "boominess".
• Cardioid Polar Pattern
• The cardioid polar pattern provides a focused pick up pattern and eliminates noise and audio at the off-axis sections of the microphone.
•

• Transducer Condenser
• Polar Pattern Cardioid
• Frequency Response 40Hz to 20kHz
• Dynamic Range (Typical) Not Specified by Manufacturer
• Signal-to-Noise Ratio 73dB
• Maximum Input Sound Level 138dB
• Power Requirements 48V to 52V Phantom Power
• Output Impedance 250 Ohms
• Output Connectors 3-pin XLR male
• Pad No
• Low Frequency Roll-Off No
• Dimensions 7.7 x 1.97" (180 x 50mm) (Length x Diameter)
• Weight 11.24oz (318.6g)
• Packaging Info
• Package Weight 2.1 lb
• Box Dimensions (LxWxH) 9.6 x 5.8 x 3.9"
