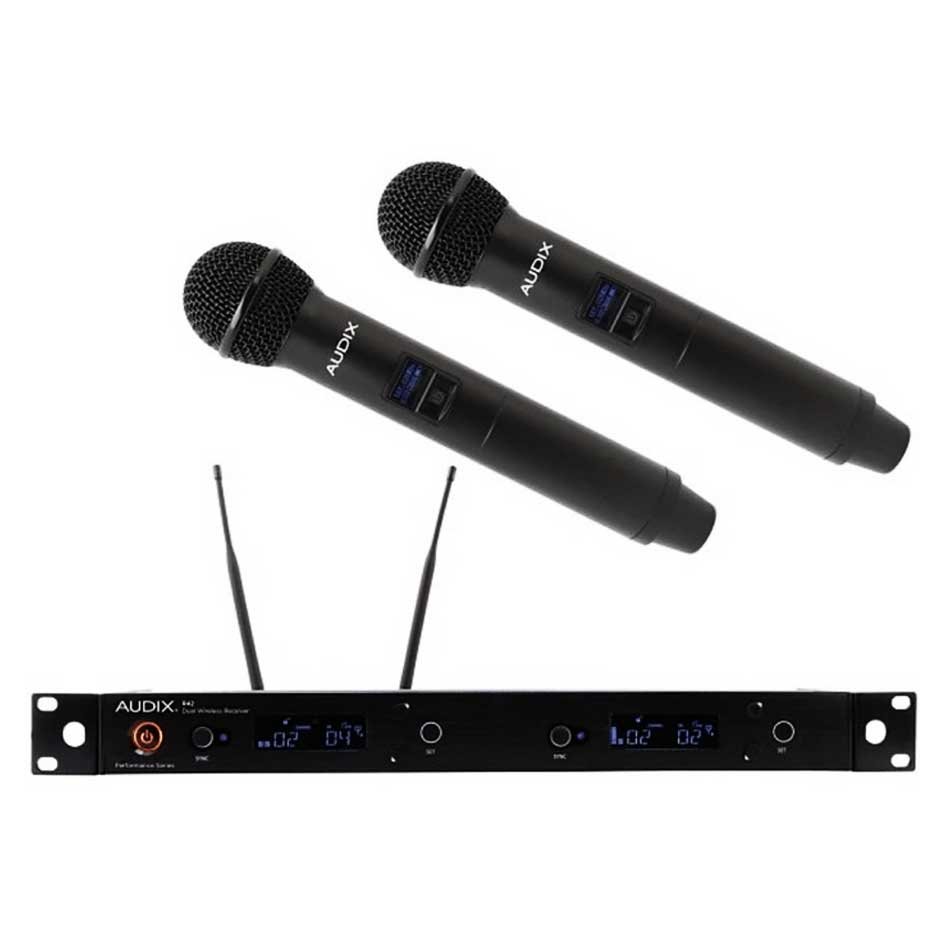

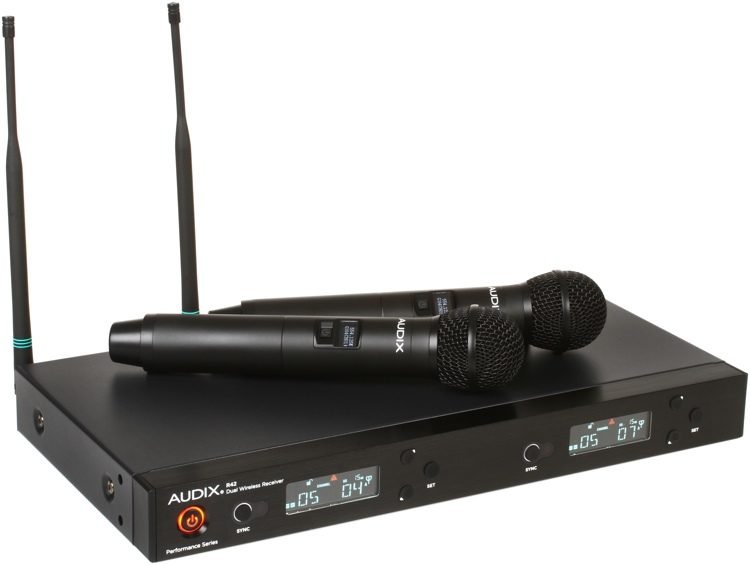

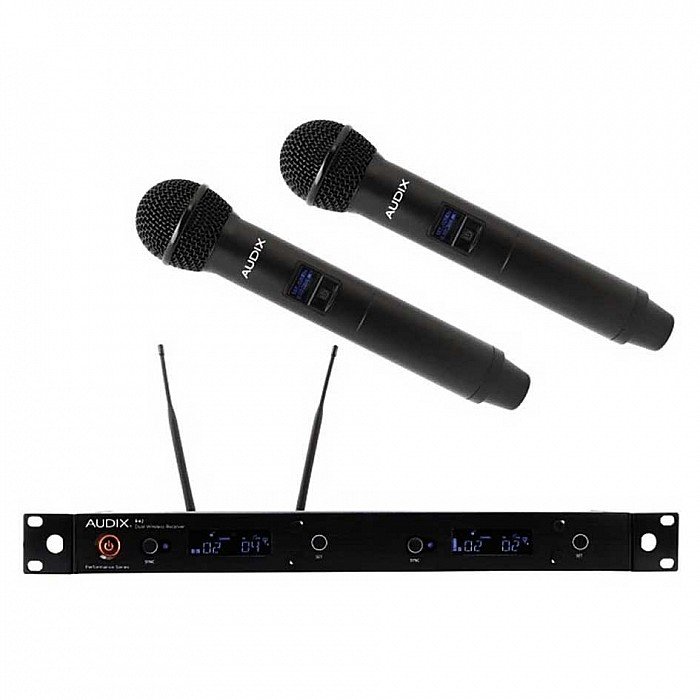

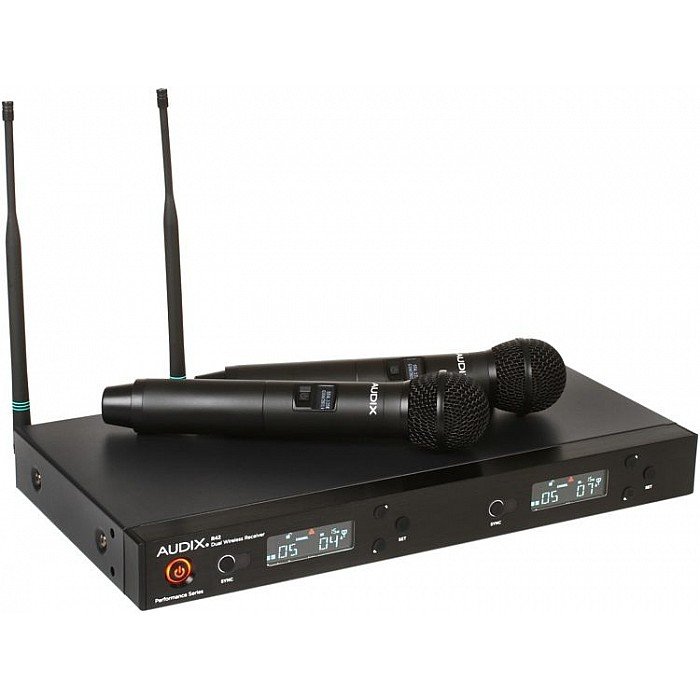

Audix AP42 VX5 Dual Handheld Wireless Microphone System

Spesifikasi Audix AP42 VX5 Dual Handheld Wireless Microphone System

Audix AP42 VX5 Dual Handheld Wireless Microphone System

• 1x R42 32 MHz Two Channel Diversity Receiver
• 1x H60 Handheld Transmitter with VX5 Capsule Module
• 2x Antennas
• 1x Audio Cable
• 1x Clip
• 1x Pouch
• 4x AA Batteries
• 1x Power Supply
• 1x User Guide
• 1x Rackmount Hardware
• 2x BNC Cables

• Frequency Band 522 to 554 MHz
• Bandwidth 32 MHz
• # Of Simultaneous Systems Up to 8
• Switchable Frequencies 106 pre-coordinated frequencies
• Wireless Range Up to 300' / 91 m
• Antenna Connector 2 x BNC (8 VDC, 150 mA)
• Outputs 2 x XLR 3-pin balanced
• 2 x 1/4" TS unbalanced
• Audio Output Level XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
• 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
• Audio Level Control -12 to +9 dB in 3 dB steps
• Frequency Response 45 Hz to 18 kHz
• Compander 2:1
• Pilot Tone 32 kHz
• Receiving System Single tuner, antenna diversity
• Signal to Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion (THD) ≤0.7% (33 kHz deviation at 1 kHz)
• Sensitivity 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Power Requirement 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
• Dimensions 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm
• Weight 4.8 lb / 2.2 kg

• Type Condenser
• Polar Pattern Supercardioid
• Frequency Response 40 Hz to 16.5 kHz
• Maximum SPL ≥140 dB
• Impedance 150 Ohms
• Sensitivity 5 mV/Pa at 1 kHz
• Off-Axis Performance Rejection >20 dB
• Equivalent Noise Level 26 dBA
• Signal to Noise Ratio 68 dB
• RF Power Output 10/30 mW
• Bandwidth 64 MHz
• Gain Adjustment 0 dB, -6 dB, -12 dB
• Battery Life Approximately 14 hours
• Current Consumption 110 mA typical
• Power Requirement 2 x AA 1.5 V batteries
• Dimensions 2.1 x 10.4" / 53 x 265 mm
• Weight 11 oz / 312 g without batteries
