Spesifikasi Audix ADX40 Hypercardioid Overhead Condenser Microphone

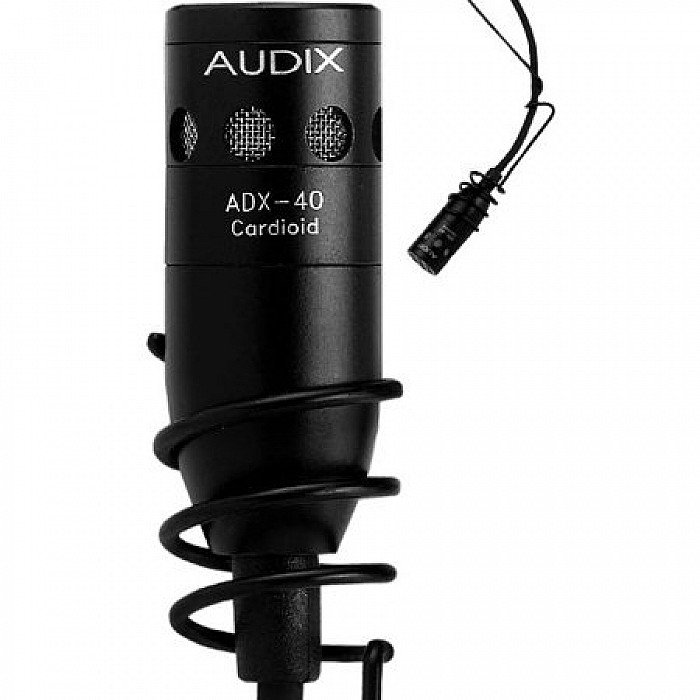

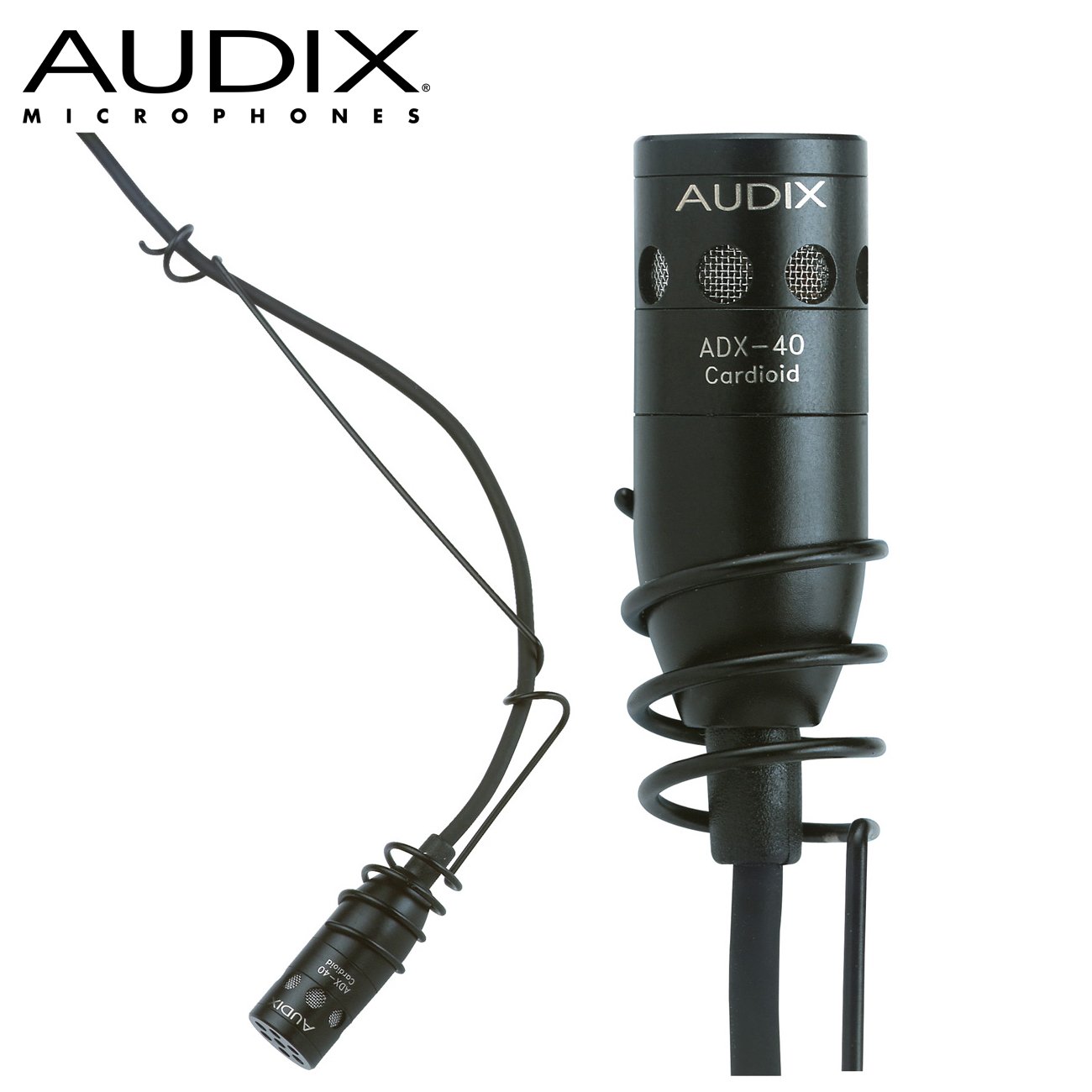

Audix ADX40 Hypercardioid Overhead Condenser Microphone

The Audix ADX40 overhead microphone is a professional solution for capturing stage performances, choirs, live bands, worship gatherings, presentations, etc. The miniature pre-polarized condenser capsule features a modular element design. This model ships with a hypercardioid element although cardioid and omnidirectional are available as options.

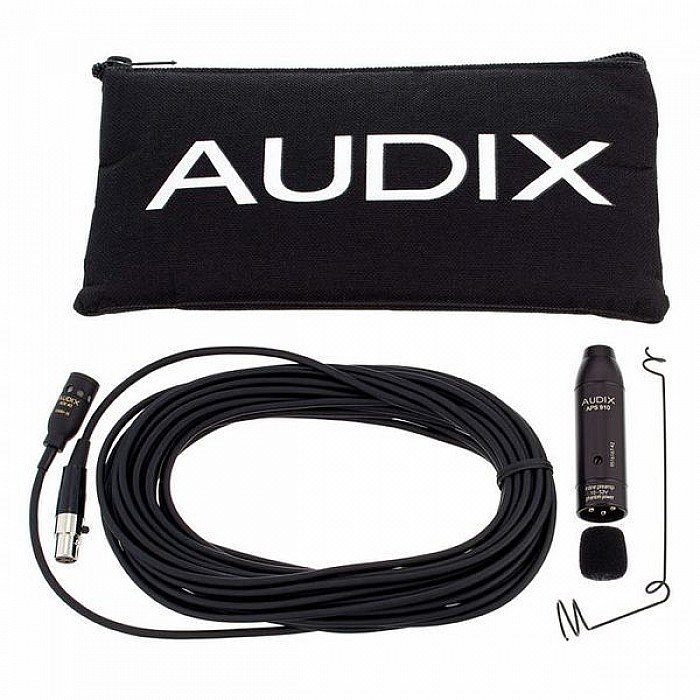

The cardioid polar pattern is ideal for general sound reinforcement applications, as it provides a generous pick up area while minimizing off-axis noise and feedback. The wide frequency response and low signal-to-noise ratio ensure accurate signal reproduction throughout the entire range. The ADX40 is designed to hang from an overhead position and includes the MC40 wire hanger, 30 foot cable and APS910 preamplifier / power supply.

• Interchangeable Elements

The ADX40 features a pre-polarized condenser capsule with a modular element design. Cardioid, hypercardioid and omnidirectional capsule are interchangeable for added flexibility.

• Hypercardioid Polar Pattern

This model ships with a hypercardioid element providing a focused pick up area and maximum rejection of off-axis residual noise that can cause feedback.

• Wide Frequency Response

The wide, linear frequency response provides accurate signal reproduction throughout the spectrum.

• Miniature Profile

The miniature profile allows the ADX40 to remain easily concealed from view.

• External Preamplifier / Power Module

The APS910 provides a standard XLR output, preamplifier and 9 to 52V phantom power from an external source.

• Microphone
• Capsule Electret Condenser
• Polar Pattern Hypercardioid
• Pad None
• High-Pass Filter None
• Performance
• Frequency Range 40 Hz to 20 kHz
• Maximum SPL 130 dB SPL
• Impedance 250 Ohms (Balanced)
• Signal-to-Noise Ratio 65 dB
• Connectivity
• Output Connectors (Analog) 1 x XLR 3-Pin (on Preamp)
• Cable Length 30' / 9.1 m
• Power
• Operating Voltage 9 to 52 V (Phantom Power)
• Physical
• Color Black
• Dimensions ø: 0.47 x L: 1.46" / ø: 12 x L: 37.2 mm (Capsule)
• ø: 0.75 x L: 3.39" / ø: 19 x L: 86.2 mm (Power Supply)
• Weight 4 oz / 110 g
• Packaging Info
• Package Weight 0.7 lb
• Box Dimensions (LxWxH) 8.9 x 4.2 x 2.5"
