Spesifikasi Ashdown Evo Bass Lite 15 220 EVO III Bass Combo Amp

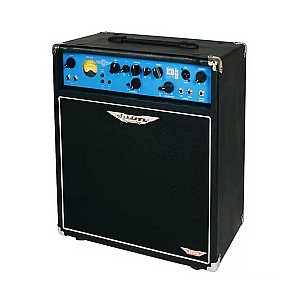

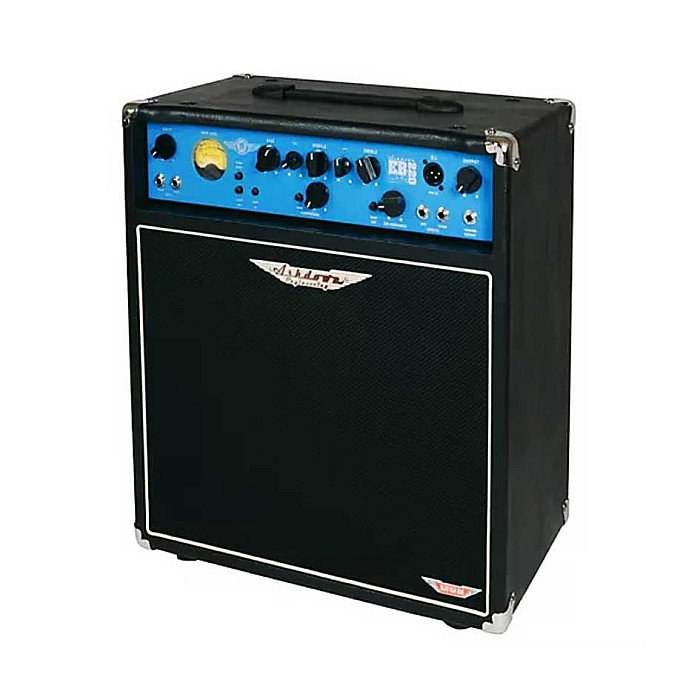

Ashdown Evo Bass Lite 15 220 EVO III Bass Combo Amp

An affordable high-performance 1x15" combo that's true to the legendary sound of Ashdown.
Ashdown Electric Blue bass amplification loads legendary Ashdown tone into an affordable high-performance, high-value combo.

The EB LITE 15-220 1 x 15" combo uses a 220 Watts RMS fan-cooled fast-transient power stage, and a fully-featured bass preamp with inputs for both active and passive instruments, an illuminated VU meter, 5 band EQ with Bright and Deep switches for total tonal control, a front panel-mounted balanced DI output for connection to a PA or recording console, an FX loop, a tuner/line output and the classic Ashdown sub-harmonic generator.

Consistent with its EVO III status, the combo also includes a built-in compressor to provide an exceptional level of sonic control for a bass amp of this size and cost.

A high-performance Ashdown 'Blueline' speaker ensures exceptional attack, clarity and low-end performance, while an extension speaker output can be used to connect an additional cabinet for use in larger venues. The cabinet is finished in a tough, retro-style vinyl covering with metal protected corners.


Features
220W Power output
230 /115v Power requirement
1 - 15" BlueLine speaker
-3dB at 33Hz and 25KHz Frequency response
2 x Jack Outputs
8 ohm Impedance
Minimum 4 ohm output impedance

Specifications:

• High Instrument Input: Impedance 3.9MOhms / Input range 150mV - 20V p-p
• Low Instrument Input: Impedance 10KOhms / Input range 300mV - 40V p-p
• Line Input: Impedance 22k Ohms / Input level 0dBu nominal
• DI Output: 600 Ohms balanced / Level -20dBu nominal
• Tuner Output: Impedance 22k Ohms / Level 0dBu nominal
• Signal to noise Better than 80dB (EQ flat)
• EQ: Bass +/-15dB @ 100Hz
• Lo Mid +/-15dB @ 220Hz
• Middle +/-15dB @ 660Hz
• Hi Mid +/-15dB @ 1.6kHz
• Treble +/-15dB @ 7kHz shelving
• Deep +8dB @ 50Hz
• Bright +10dB @ 10kHz
• Effects Send: Impedance 22k Ohms / Level 0dBu nominal
• Effects Return: Impedance 22k Ohms / Level 0dBu nominal
• Distortion: Less than 0.5% THD
• Dimensions (W x H x D): 18.7" x 22.9" x 11.8"
• Weight: 57.3 lb/25kgs
