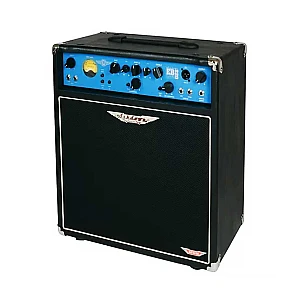

Ashdown Evo Bass Lite 15 220 EVO III Bass Combo Amp

Spesifikasi Ashdown Evo Bass Lite 15 220 EVO III Bass Combo Amp

Ashdown Evo Bass Lite 15 220 EVO III Bass Combo Amp

An affordable high-performance 1x15" combo that's true to the legendary sound of Ashdown.
Ashdown Electric Blue bass amplification loads legendary Ashdown tone into an affordable high-performance, high-value combo.

The EB LITE 15-220 1 x 15" combo uses a 220 Watts RMS fan-cooled fast-transient power stage, and a fully-featured bass preamp with inputs for both active and passive instruments, an illuminated VU meter, 5 band EQ with Bright and Deep switches for total tonal control, a front panel-mounted balanced DI output for connection to a PA or recording console, an FX loop, a tuner/line output and the classic Ashdown sub-harmonic generator.

Consistent with its EVO III status, the combo also includes a built-in compressor to provide an exceptional level of sonic control for a bass amp of this size and cost.

A high-performance Ashdown 'Blueline' speaker ensures exceptional attack, clarity and low-end performance, while an extension speaker output can be used to connect an additional cabinet for use in larger venues. The cabinet is finished in a tough, retro-style vinyl covering with metal protected corners.


Features
220W Power output
230 /115v Power requirement
1 - 15" BlueLine speaker
-3dB at 33Hz and 25KHz Frequency response
2 x Jack Outputs
8 ohm Impedance
Minimum 4 ohm output impedance

Specifications:

• High Instrument Input: Impedance 3.9MOhms / Input range 150mV - 20V p-p
• Low Instrument Input: Impedance 10KOhms / Input range 300mV - 40V p-p
• Line Input: Impedance 22k Ohms / Input level 0dBu nominal
• DI Output: 600 Ohms balanced / Level -20dBu nominal
• Tuner Output: Impedance 22k Ohms / Level 0dBu nominal
• Signal to noise Better than 80dB (EQ flat)
• EQ: Bass +/-15dB @ 100Hz
• Lo Mid +/-15dB @ 220Hz
• Middle +/-15dB @ 660Hz
• Hi Mid +/-15dB @ 1.6kHz
• Treble +/-15dB @ 7kHz shelving
• Deep +8dB @ 50Hz
• Bright +10dB @ 10kHz
• Effects Send: Impedance 22k Ohms / Level 0dBu nominal
• Effects Return: Impedance 22k Ohms / Level 0dBu nominal
• Distortion: Less than 0.5% THD
• Dimensions (W x H x D): 18.7" x 22.9" x 11.8"
• Weight: 57.3 lb/25kgs
