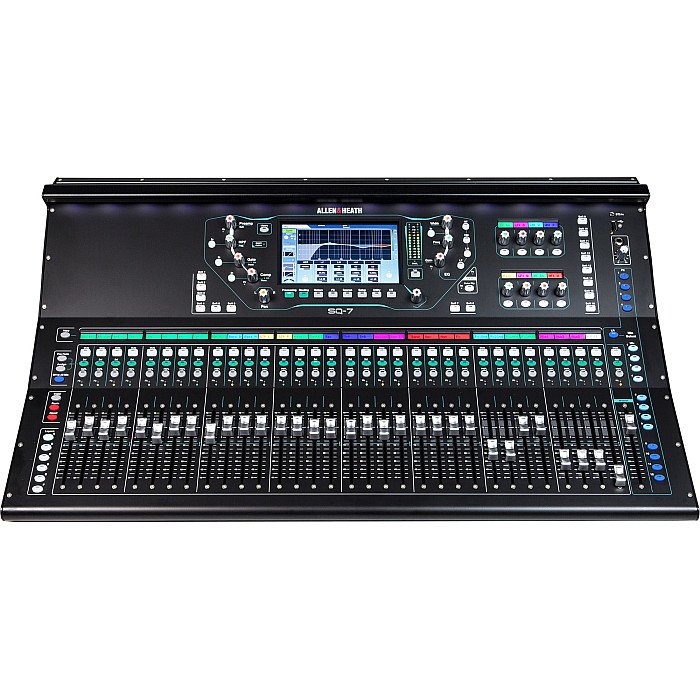

A capable mixer that's ready to expand

Right out of the box, the SQ-7 digital mixer offers 48 input channels. You have 33 faders for hands-on mixing, arranged in six fader layers for

managing larger mixes. The SQ-7 also offers an SLink port for remote audio and expansion. And a 64-channel I/O port is ready for network audio

integration.

Manage large mixes easily with Automatic Mic Mixing

When you're mixing a multi-mic setup, you'll find the SQ-7's Automatic Mic Mixing capabilities to be a huge help. It's also a fantastic "safety net"

when relying on inexperienced volunteers to manage the sound system. With Automatic Mic Mixing, you can be sure that you'll never experience

an excessive imbalance between mic levels in large multi-mic applications.

Built-in audio interface and comprehensive I/O

Multitrack recording is made simple with the Allen & Heath SQ-7, with its built-in 32 x 32 USB audio interface. Engineers also appreciate the

convenience of direct recording to a USB drive. A 64-channel I/O port is also present for connecting to network audio. And an SLink port allows

for remote audio and I/O expansion.

Features:

• 48-input digital mixer with 96kHz FPGA processing
• Best-in-class audio quality, with less than 0.7ms latency
• 33 faders for hands-on mixing, with 6 fader layers
• Create up to 12 stereo mixes in addition to the main LR mix
• 3 stereo matrices
• 8 stereo FX engines with dedicated effects returns
• 7" capacitive touchscreen for navigation

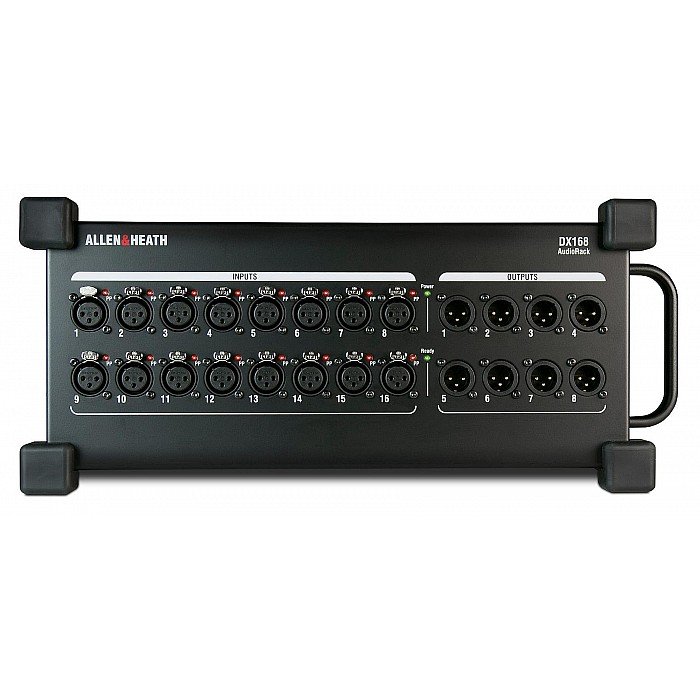

• SLink port for remote audio and I/O expansion
• 64-channel I/O port for network audio
• Built-in 32 x 32 USB audio interface for multitrack recording
• SQ-Drive allows for direct recording to a USB drive
• Dedicated physical controls, plus 8 assignable SoftKeys
• Automatic Mic Mixing makes it easy to manage large multi-mic setups
• AES digital output
• Rack-mountable

Tech Specs

• Type:Digital Mixer
• Channels:48

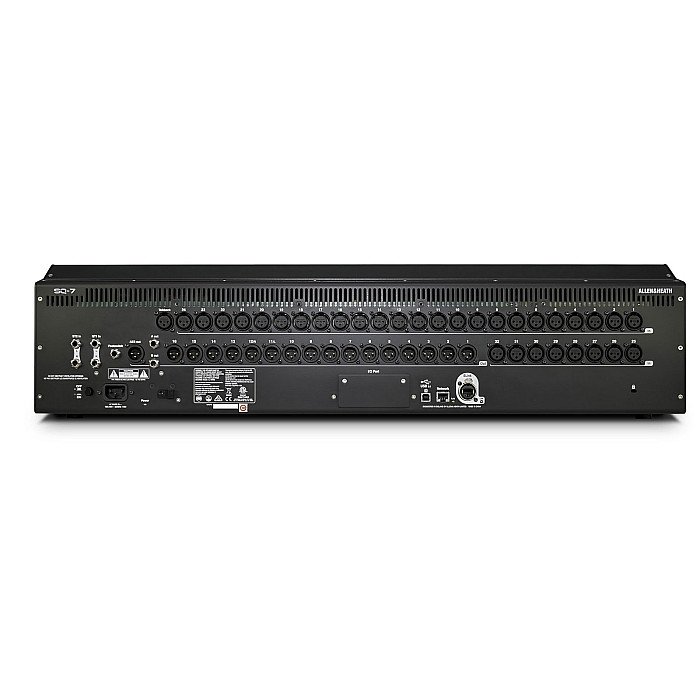

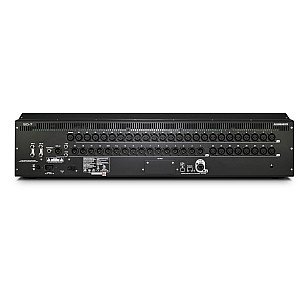

• Inputs - Mic Preamps:32 x XLR
• Phantom Power:32 channels, Talkback
• Inputs - Line:32 x XLR (mic/line)
• Inputs - Other:2 x 1/4" (Stereo 1), 2 x 1/4" (Stereo 2)
• Outputs - Main:2 x XLR, 2 x 1/4" (A out, B out)
• Outputs - Other:16 x XLR (stereo mixes, L/R)
• Outputs - Digital:1 x XLR (AES)
• Busses/Groups:36 Bus
• Inserts:Internal Pre EQ/Compressor
• Talkback:1 x XLR
• MIDI I/O:USB (control)
• Data I/O:1 x EtherCon (dSnake, DX mode, gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
• Remote:1 x 1/4" (footswitch)
• USB:1 x Type B, 1 x Type A
• Computer Connectivity:USB (32 x 32), Ethernet
• I/O Expansion Slots:1 x Option card port (Dante, Waves)
• Headphones:1 x 1/4"
• Faders:33 x 100mm motorized
• A/D Resolution:24-bit/96kHz
• EQ Bands:Parametric EQ, 28-band Graphic, HPF
• Effects:Delay, Reverb, Chorus, Flanger, Phaser (8 x RackFX engine)
• Signal Processing:Compressor, Gate
• DAW Control:MIDI DAW control via USB
• Screen:7" color touch screen
• Storage:USB Type A (16 x 16)
• Software:Wireless Remote Mixing app iPad/Android (network router not included)
• Power Source:Standard IEC AC connector
• Height:7.8"
• Depth:20.3"
• Width:31.7"
• Weight:23.1 lbs.
