Spesifikasi Allen & Heath SQ-5 32 Channel Digital Mixer

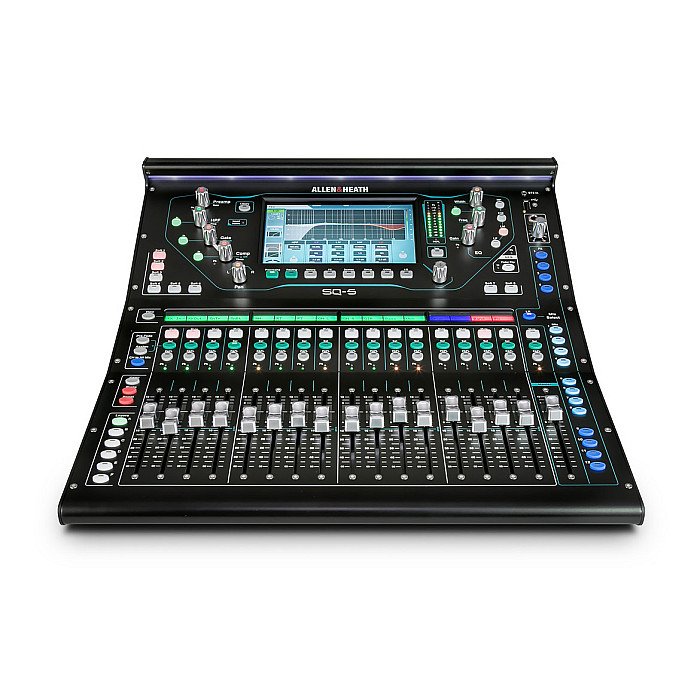

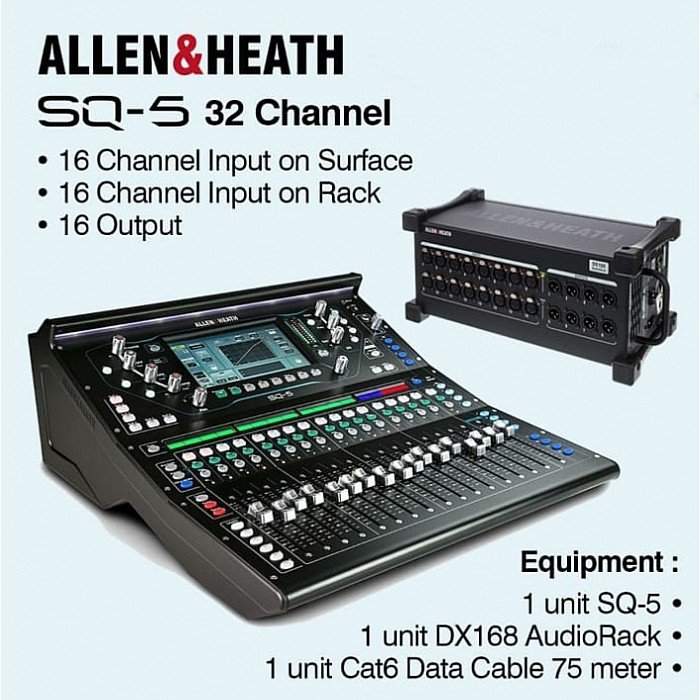

Allen & Heath SQ-5 32 Channel Digital Mixer

Based on Allen & Heath's acclaimed XCVI 96kHz FPGA audio engine, the SQ-5 digital mixer delivers extensive

live sound mixing capabilities. Even with its powerful processing, the SQ-5 delivers best-in-class audio quality with

less than 0.7ms of latency. You'll have a lot of flexibility when it comes to creating monitor mixes, with up to 12 stereo

mixes (groups or auxes) in addition to the main LR out. Eight stereo FX engines provide studio-quality effects, with

dedicated returns. Complete with a 32 x 32 USB audio interface, and dedicated controls for mixing convenience,

the Allen & Heath SQ-5 is a smart mixing solution for live music, worship sound, and educational facilities.

Allen & Heath SQ-5 Digital Mixer Features:

• 48-input digital mixer with 96kHz FPGA processing
• Best-in-class audio quality, with less than 0.7ms latency
• 17 faders for hands-on mixing, with 6 fader layers
• Create up to 12 stereo mixes in addition to the main LR mix
• 3 stereo matrices
• 8 stereo FX engines with dedicated effects returns
• 7" capacitive touchscreen for navigation
• SLink port for remote audio and I/O expansion
• 64-channel I/O port for network audio
• Built-in 32 x 32 USB audio interface for multitrack recording
• SQ-Drive allows for direct recording to a USB drive
• Dedicated physical controls, plus 8 assignable SoftKeys
• Automatic Mic Mixing makes it easy to manage large multi-mic setups
• AES digital output
• Rackmountable

Tech Specs

• Type:Digital
• Channels:48
• Inputs - Mic Preamps:16 x XLR
• Phantom Power:16 channels, Talkback
• Inputs - Line:16 x XLR (mic/line)
• Inputs - Other:2 x 1/4" (ST1), 2 x 1/4" (ST2), 1 x 1/8" (ST3)
• Outputs - Main:2 x 1/4" (A out, B out), 2 x XLR (L,R)
• Outputs - Other:12 x XLR (stereo mixes, L/R)
• Outputs - Digital:1 x XLR (AES)
• Busses/Groups:36 bus
• Inserts:Internal Pre EQ/Compressor
• Talkback:1 x XLR
• MIDI I/O:USB (control)
• Data I/O:1 x EtherCon (dSnake, DX mode, gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
• Remote:1 x 1/4" (footswitch)
• USB:1 x Type B, 1 x Type A
• Computer Connectivity:USB (32 x 32), Ethernet
• I/O Expansion Slots:1 x Option card port (Dante, Waves)
• Headphones:1 x 1/4"
• Faders:17 x 100mm motorized
• A/D Resolution:24-bit/96kHz
• EQ Bands:Parametric EQ, 28-band Graphic
• Effects:Delay, Reverb, Chorus, Flanger, Phaser (8 x RackFX engine)
• Signal Processing:Dynamics
• DAW Control:MIDI DAW control via USB
• Screen:7" color touch screen
• Storage:USB Type A (16 x 16)
• Software:Wireless Remote Mixing app iPad/Android (network router not included)
• Rackmountable:Yes (kit sold separately)
• Power Source:AC Adapter
• Height:7.8"
• Depth:20.3"
• Width:17.3"
• Weight:23.1 lbs.​

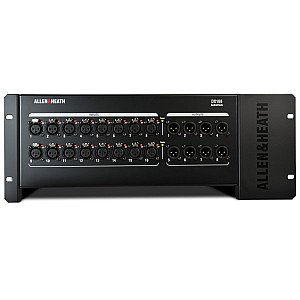

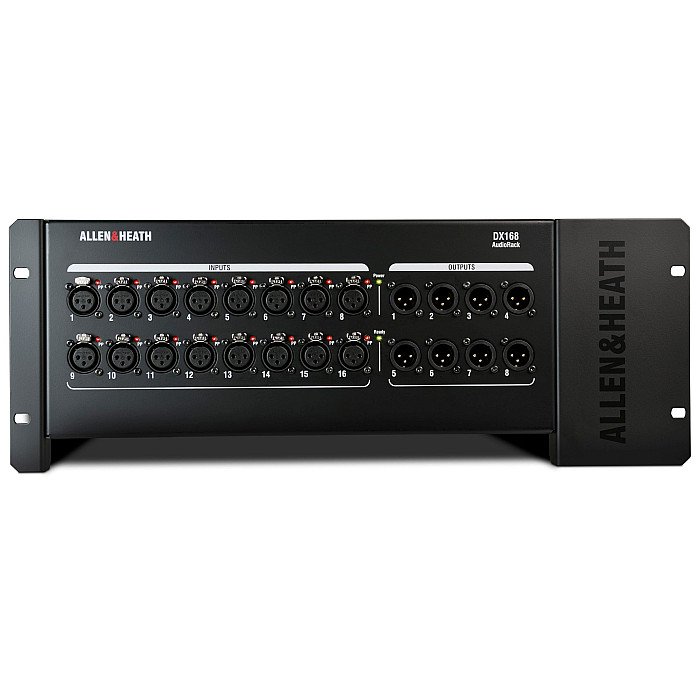

Allen & Heath DX168 Features:

• 16-in/8-out portable DX Expander for dLive systems
• Connect up to 6 units for a total of 96 inputs and 48 outputs
• Includes 16 great-sounding mic preamps
• Plug and Play design for easy setup (no IP addressing required)
• Compatible with Cat 5e cables of up to 100m
• Lightweight design and integrated carry handle for easy transport
• Durable construction with rubber bumpers for extra protection
• Works with both S Class and C Class dLive systems
• Redundant DX connection to dLive S Class hardware
• Optional 19-inch rack mount kit is available (sold separately)

Tech Specs

• Type:DX I/O Expander
• Compatibility:dLive S/C Class Systems
• Channels:16 x 8
• Inputs - Mic Preamps:16 x XLR
• Phantom Power:16 channels
• Outputs - Main:8 x XLR (line outs)
• Data I/O:2 x EtherCon (Cat5e DX ports)
• Rackmountable:Yes (kit sold separately)
• Power Source:Standard IEC AC cable
