Yamaha VXS5 Surface Mount Speaker (Pair)

Spesifikasi Yamaha VXS5 Surface Mount Speaker (Pair)

Yamaha VXS5 Surface Mount Speaker (Pair)

Description
The pursuit of the best sound for installation
We developed the VXC and VXS Series speakers to address the growing demand in the installation market for speakers capable of delivering outstanding music reproduction and clear announcements for public address applications. Both series feature newly adapted transducers with hefty magnetic circuits that increase propulsion and braking power substantially, as well as custom tweeter diaphragms and speaker cone paper made from a carefully crafted blend of materials that help optimize sound reproduction. The cabinet is robustly built to meet the demands of a variety of commercial environments, constructed from selected plastics with the proper tensile strength, and designed with optimized bass-reflex tuning to offer a tight, tight low-end. From the network components and materials used for wiring and soldering, to the optimal placement of acoustic absorption materials, great care has been paid to even the smallest details of the series' design.

Highly adaptable surface mount speaker

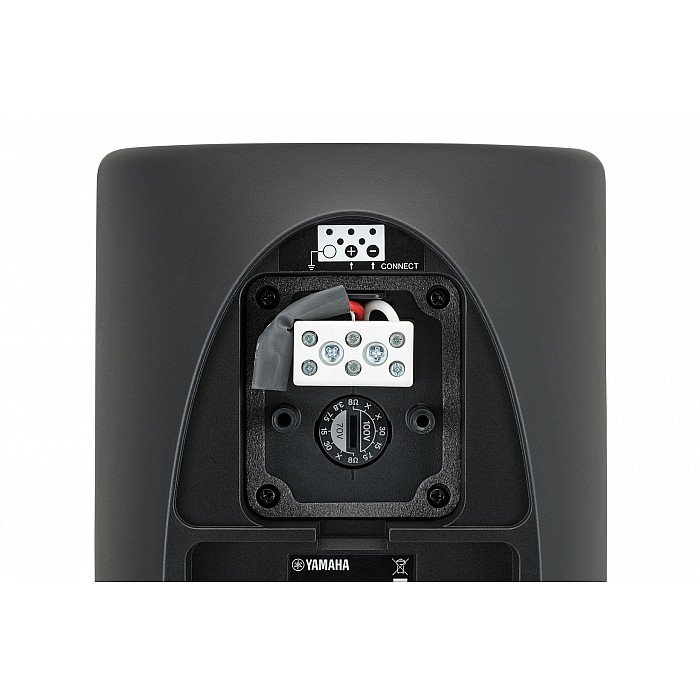

The VXS Series range has 2 models and 4 variations, allowing you to choose the optimal model for a particular application. The VXS series is equipped with an internal transformer that allows them to operate at high or low impedance by simply changing the tap on the back of the speaker. These models also offer protection rated IP35, ensuring worry-free use in outdoor applications.

Flexible installation for easier configuration

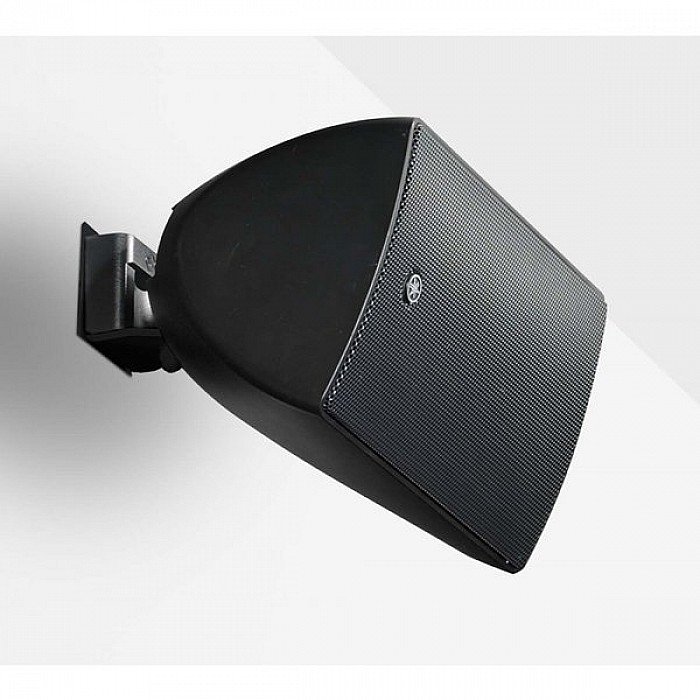

VXS speakers come with special brackets for safe and trouble-free installation of the speakers. The speakers can be temporarily mounted, freeing your hands to adjust the mounting angle, which can now be configured consistently with ease thanks to gear guides in the bracket connector. Additionally, the bracket base allows VXS Series speakers to be mounted on both walls and ceilings without the need to prepare a different bracket.

Speaker Design
Several aspects of these speaker designs reflect the strong emphasis on functionality as well as the aesthetic features of their construction — effectively enhancing the sound quality and performance of the speakers without compromising the interior decoration of the installation. This concept is evident in the hexagonal design featured on the speaker grille of both series which actually improves sound clarity by increasing the aperture ratio. Likewise, the smooth curves of the surface-mount cabinet's simple-advanced design allow the speaker to be mounted tightly to a wall-while still being fully capable of panning and tilting to the target service area. Even the innovative design of the VXC tweeters improves sound clarity by providing seamless woofer movement.

Paintable speakers for your unique room design
The VXS series comes with paintable speaker bodies, grilles and brackets. Not only does it fill your room with premium sound, the VXS series elevates interior design by painting the grilles any color you like whether it's a light color, a deep color, or the color that best matches your décor.

EN54-24 certified version with uncompromised performance
We also offer a “VA” version that adds EN54-24 sound alarm system standard compliance while retaining the outstanding sonic quality and ease of installation provided by VXS series speakers; therefore a single speaker can optimally handle the functions of music reproduction and emergency broadcasts. The VA version uses fire-resistant materials for the cabinet and baffles, ceramic for the speaker terminal support, and clamps the cover on the rear panel to meet the requirements of EN54-24 heat and humidity standards. 2 models and 4 variations of the VXS-VA version are available.

1. *Frequency range: Half space
2. *Nominal coverage: 500Hz – 4kHz Average
3. *Power rating: IEC
4. *Satellite impedance: Impedance lower limit (per satellite output) VXS10S/10SW: 4Ω, VXS10ST/10STW: 8Ω
5. *Environmental: IP34 when installing the speaker to the ceiling vertically
