AKG C 535 EB Stage Microphone

Spesifikasi AKG C 535 EB Stage Microphone

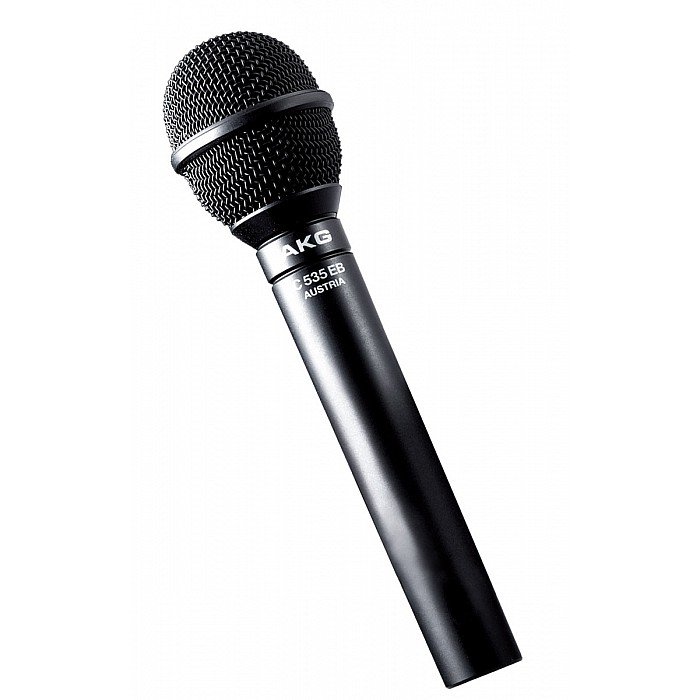

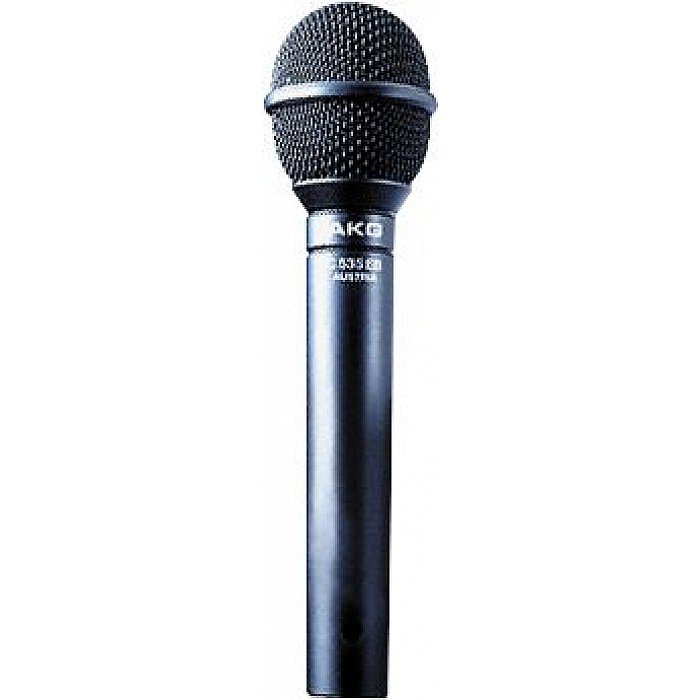

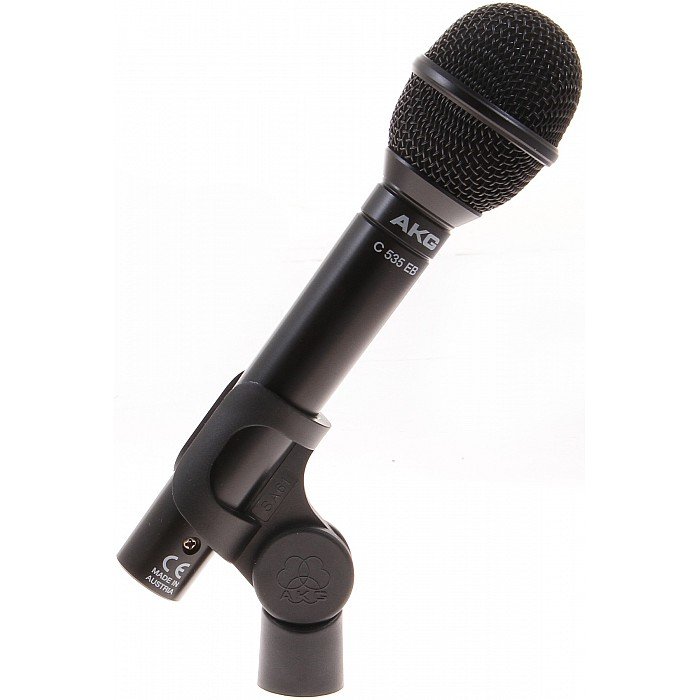

AKG C 535 EB Stage Microphone

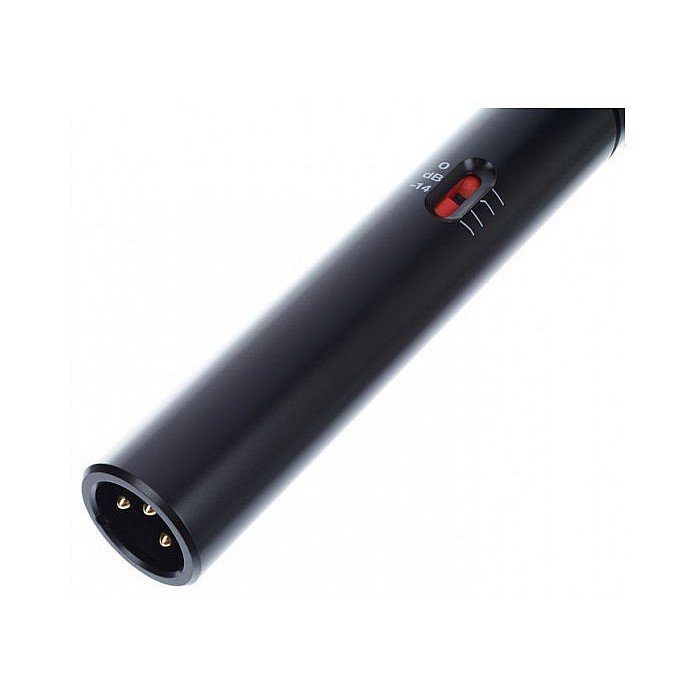

The AKG C 535 EB microphone has the clean, open characteristics of AKG's best studio condenser mics, enhanced by a 2dB boost between 7 and 12kHz that projects vocals to the front of the mix. An integral 4-position switch tailors output level and bass roll-off for a variety of uses and situations. A sharp LF cut at the full output level reduces pops and handling noise for stage vocal use, and a more gradual roll off at reduced output is ideal for many instrument applications. Cardioid polar pattern. Frequency range: 20Hz to 20kHz. Requires 9 to 52V phantom power.

Specification

• General
• Audio Frequency bandwidth
• 20 to 20000 Hz
• Sensitivity
• 7 mV/Pa
• Equivalent Noise Level
• 21 dB-A
• Signal to Noise
• 73 dB-A
• Preattenuation Pad
• -14 dB
• Bass Cut Filter
• 100 Hz
• Electrical Impedance
• 200 Ohms
• Recommended Load Impedance
• 600 Ohms
• Polar Patterns
• Cardioid
• Powering Interface
• Voltage    9 to 52 V
• Current    2.5 mA
• Audio Output
• Type
• Balanced XLR
• Gender    Male
• Contacts
• 3-pin
• Design
• Body    metal
• Finish    matte black
• Dimensions / Weight
• Height
• 184 mm
• Diameter
• 46 mm
• Net Weight
• 300 g
