AKG C 519 MicroMic Brass Microphone

Spesifikasi AKG C 519 MicroMic Brass Microphone

AKG C 519 MicroMic Brass Microphone

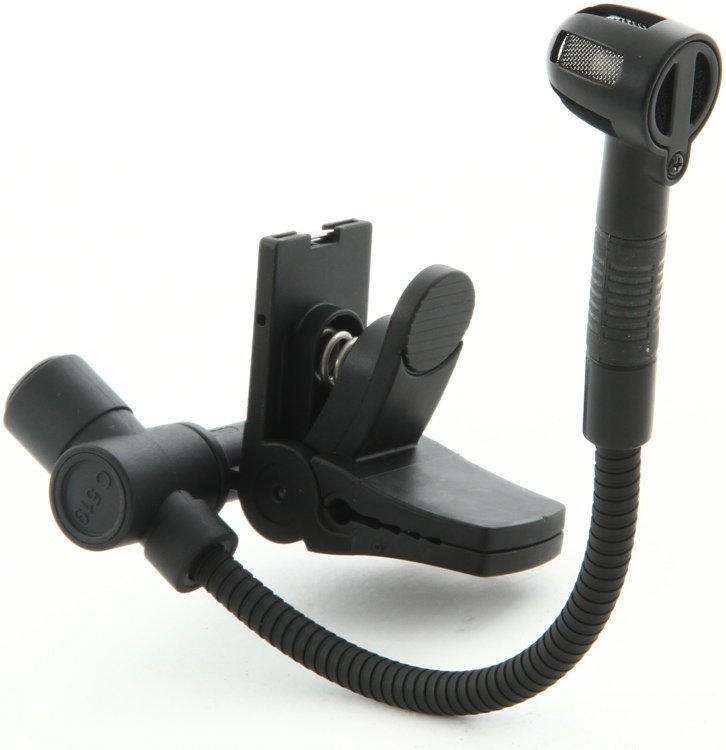

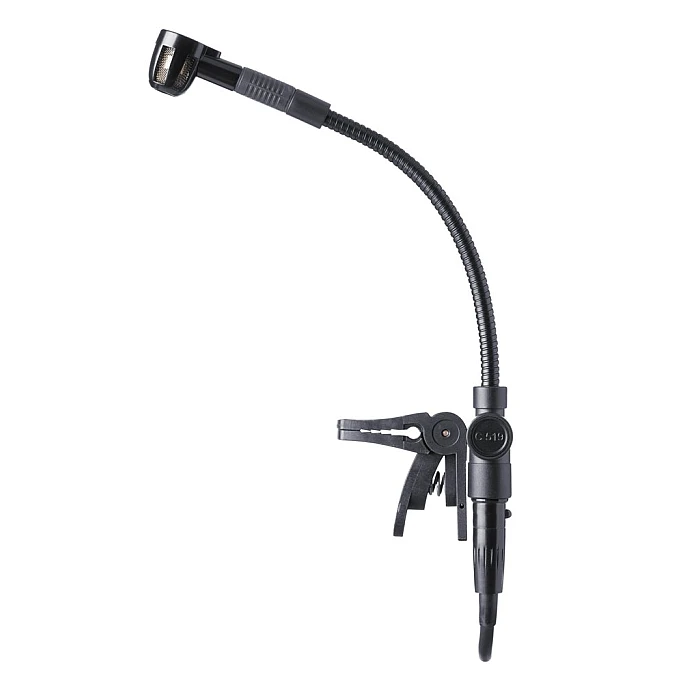

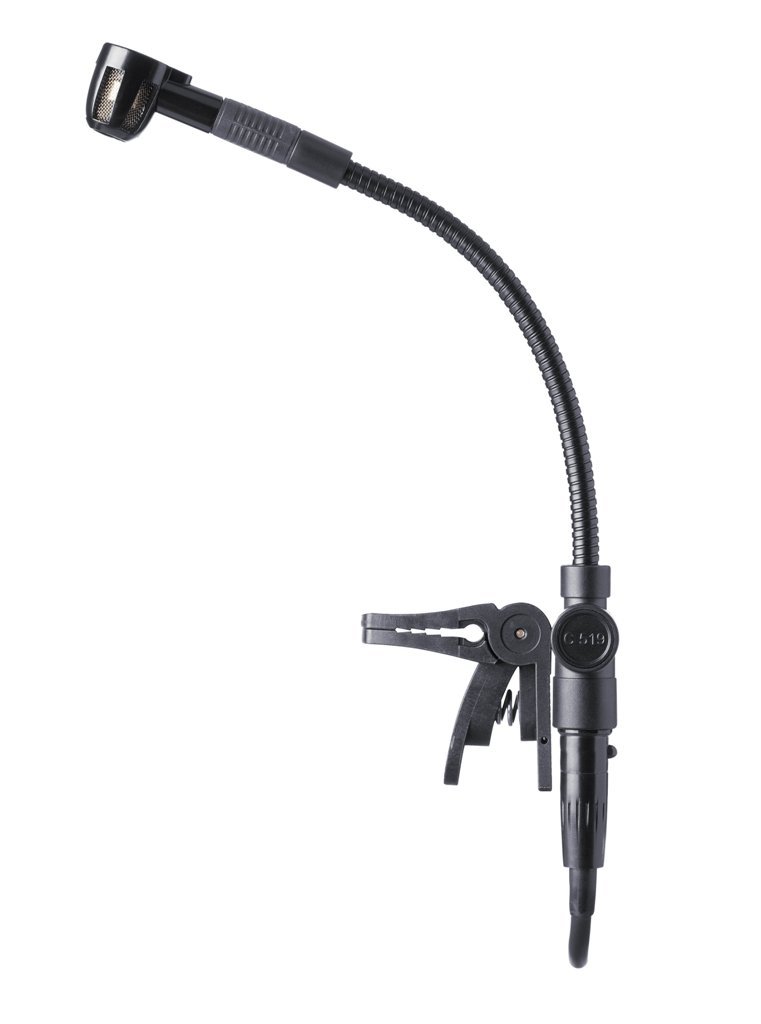

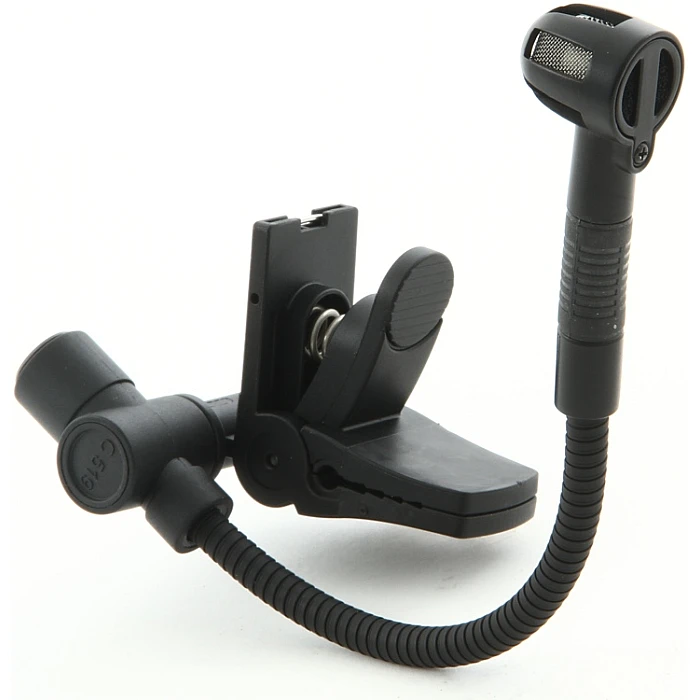

The C 519 clips onto the bell of a trumpet, saxophone, trombone, tuba, or any other wind instrument (e.g. didgeridoo). Room to move for the wind section at last! Its tight cardioid polar pattern makes the C 519 an ideal tool for use near monitor wedges, and its flat frequency response delivers a natural, powerful, and clear sound.

C 519 ML with mini XLR connector for use with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering.

Features

Miniature condenser clip-on microphone for wind instruments, drums, and percussion

Miniature goose-neck for accurate microphone alignment

Including wireless direct adapter for easy use with AKG pocket transmitters

Detachable microphone cable

Transducer shock mount for high mechanical-noise rejection


Specifications:

Polar pattern
cardioid

Frequency range
60 Hz to 20 kHz

Sensitivity
5 mV/Pa (-46 dBV)

Max. SPL
130/132 dB SPL (for 1 %/3 % THD)

Equivalent noise level
31 dB(A)

Signal/noise ratio (A-weighted)
63 dB

Impedance
<= 200 ohms

Recommended load impedance
>= 2000 ohms

Current consumption
<= 2 mA

Power requirement
B 29 L battery power supply, MPA V L phantom adapter, AKG WMS bodypack transmitters

Connector
3-pin mini XLR

Cable
1.5 m (5 ft.)

Finish
matte black

Dimensions
Length: 213 mm (8.4 in.) (microphone only); max. width: 47 mm (1.9 in.)

Net weight
C 519 M: 195 g (6.9 oz.)
C 519 ML: 85 g (3 oz.)
(microphone and cable)

Shipping weight
C 519 M: 430 g (15.2 oz.)
C 519 ML: 310 g (11 oz.)

Dimensions and Weight in Packaging

Shipping Weight: 1 lbs

Shipping Dimensions: 8 x 6 x 3 in
