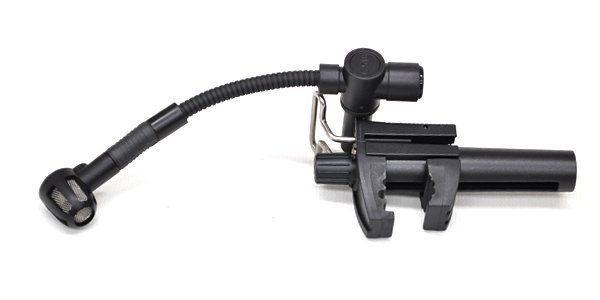

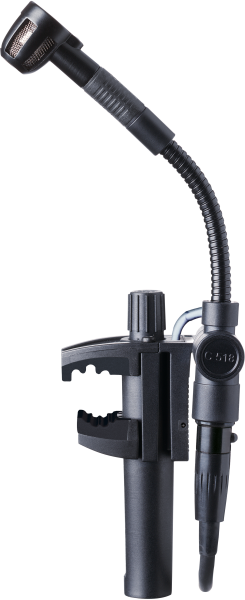

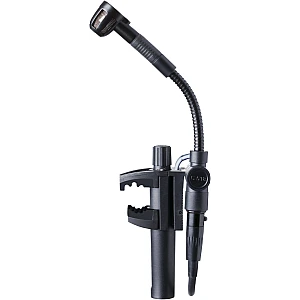

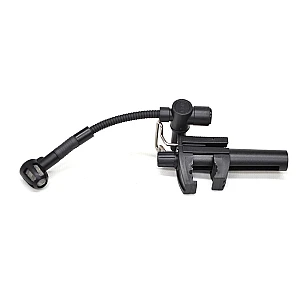

AKG C 518 M MicroMic Drum Microphone

Spesifikasi AKG C 518 M MicroMic Drum Microphone

AKG C 518 M MicroMic Drum Microphone

The ultimate miniature condenser microphone for drums and percussions. Its cardioid polar pattern rejects overspill from nearby instruments. A continuously adjustable vise-type clamp makes it easy to fix the microphone securely on the top hoop of most drums or percussion instruments. An external shock mount provides high mechanical-noise rejection. A special snap-on stabilizer knee will keep the gooseneck bent at a defined angle. The C 518 M features an integrated, switchable bass cut for adjusting the microphone's frequency response to your instrument's sound.

The unique adapter plate A 400 allows easy attachment of the AKG pocket transmitters.

Versions:

C 518 M for external phantom powering.

C 518 ML for use with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering.

Features

Miniature cardioid condenser clamp-on microphone with shock mounted capsule

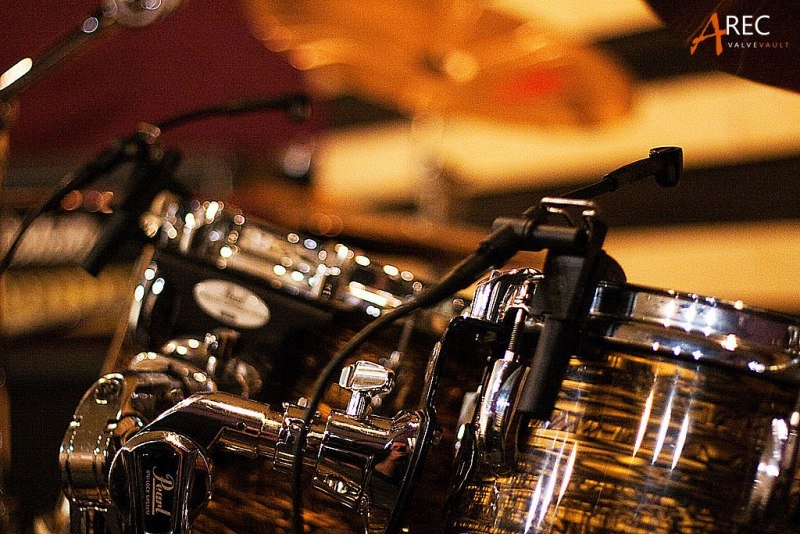

Ideal for miking drums and percussion

Including wireless direct adapter for easy use with AKG pocket transmitters

Detachable microphone cable

Integrated gooseneck


Specifications:

Polar pattern
cardioid

Frequency range
60 Hz to 20 kHz

Sensitivity
5 mV/Pa (-46 dBV)

Max. SPL
130/132 dB SPL (for 1%/3% THD)

Equivalent noise level
31 dB(A)

Signal/noise ratio (A-weighted)
63 dB

Impedance
<= 200 ohms

Recommended load impedance
>= 2000 ohms

Current consumption
<= 2 mA

Power requirement
B 29 L battery power supply, MPA V L phantom adapter, AKG WMS bodypack
transmitters

Connector
3-pin mini XLR

Cable
1.5 m (5 ft.)

Finish
matte black

Dimensions
Length: 200 mm (7.9 in.) (microphone only); max. width: 47 mm (1.9 in.)

Net weight
C 518 M: 220 g (7.8 oz.)
C 518 ML: 110 g (3.9 oz.)
(microphone and cable)

Shipping weight
C 518 M: 450 g (15.9 oz.)
C 518 ML: 330 g (11.7 oz.)

Dimensions and Weight in Packaging

Shipping Weight: 1 lbs

Shipping Dimensions: 8 x 6 x 3 in
