ADAM Audio T5V 5 inch Powered Studio Monitor, UK Plug
Professional ADAM Monitoring for the Budget-conscious Studio
Junior partner in the T Series, ADAM Audio’s affordable line of professional 2-way active studio monitors, the T5V features a 5" polypropylene low-frequency driver that delivers bass extension down to 45Hz, while the company's U-ART accelerated-ribbon tweeter provides pristine highs extended up to 25kHz – quite remarkable for a monitor in this price range. The tweeter's broad, uniform dispersion pattern is assisted by a precision waveguide modeled on the High Frequency Propagation (HPS) waveguide used in ADAM’s premium S Series studio monitors, which provides an impressively wide sweet spot that liberates you from being constrained to a rigid listening position.

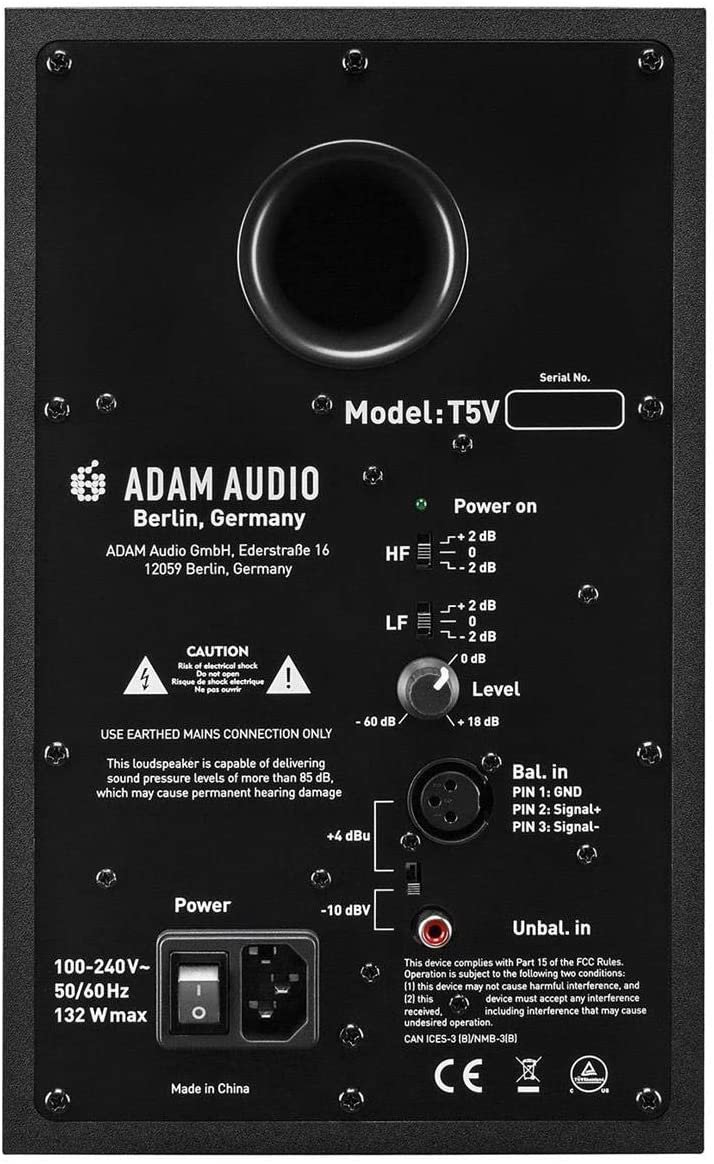

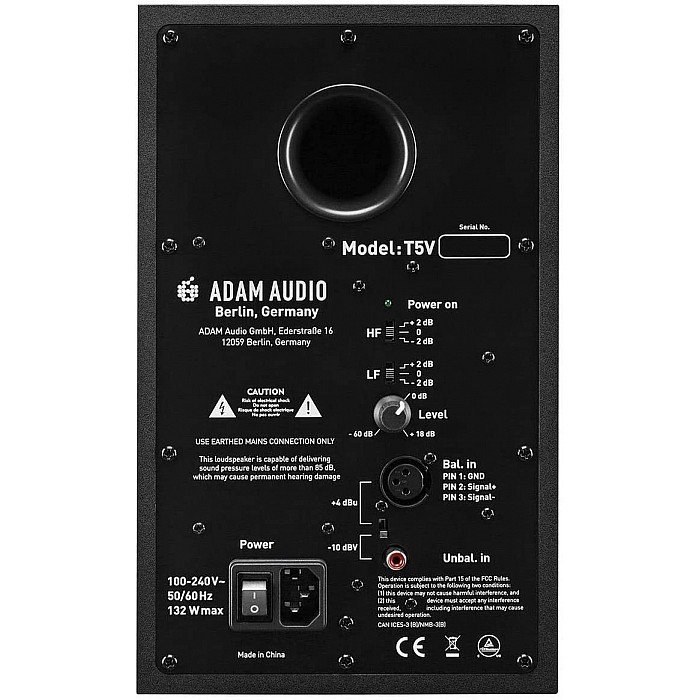

The T5V’s beveled cabinet features a rear-firing bass reflex port affixed to a thick metal backplate that houses the analog input connections and DSP-controlled driver crossovers and equalization. The woofer's 50W Class D amplifier, in combination with the 20W Class D tweeter amp, enables a pair of T5Vs to achieve a maximum SPL of 106dB at one meter. The T5V’s extended frequency response, robust dynamic range, exemplary transient response, broad sweet spot, and compact footprint make it ideally suited for use in small control rooms for music production, video post, and broadcast applications. It's a perfect monitoring solution, considering the modest budgets that many facilities have to work with.
5" polypropylene low-frequency driver
The drivers in ADAM Audio studio monitors benefit from years of in-house research and development and take advantage of the latest advances in technology and materials science. The woofer in the T5V is engineered to deliver optimized low-frequency reproduction with extended dynamic range and freedom from coloration. It incorporates a rigid, yet low-mass polypropylene driver cone; a highly efficient magnet assembly and precisely aligned voice coil; and an optimized driver chassis/basket design. The T5V's 5" woofer extends response down to 45Hz, making the speaker a suitable choice for nearfield monitoring in small control rooms, with or without a subwoofer. If more low-end extension is desirable, ADAM Audio's Sub8 and Sub7 subwoofers pair perfectly with the T5V.
The U-ART accelerated-ribbon tweeter
Instead of producing sound with a piston-like diaphragm like most loudspeakers, ADAM Audio's U-ART accelerated-ribbon tweeter uses a pleated diaphragm that prevents distortion by moving air four times faster than the folds themselves are moving. Built to the tightest tolerances, the U-ART tweeter delivers ultra-low distortion and extends the frequency range up to 25kHz, enriching the soundfield with stunning detail and faithfully conveying every nuance of the source material so you can work over long periods without listening fatigue.
- Vertical 2-way system with 1 x 5" polypropylene woofer and U-ART tweeter
- U-ART accelerated-ribbon tweeter with precision HPS waveguide
- Large rear-firing bass reflex port
- Highly efficient 70W Class D bi-amplification
- Linear frequency response of 45Hz–25kHz
- Maximum peak sound pressure per pair at 1m ≥ 106dB
- Analog XLR and RCA inputs
- 2-year warranty; optional extension to 3 years with product registration
- Sold individually
- Powered: Yes
- Power Configuration: Bi-amped
- LF Driver Size: 5" woofer
- LF Driver Type: Polypropylene
- HF Driver Size: 1.9" U-ART tweeter
- LF Driver Power Amp: 50W
- HF Driver Power Amp: 20W
- Frequency Response: 45Hz-25kHz
- Crossover Frequency: 3000Hz
- Maximum Peak SPL: ≥106dB SPL @ 1m
- Input Types: 1 x XLR, 1 x RCA
- Enclosure Type: Rear ported
- Height: 11.7"
- Width: 7"
- Depth: 11.7"
- Weight: 12.6 lbs/453.592Gr
