Spesifikasi ADAM A5X Powered Monitor (Pair)

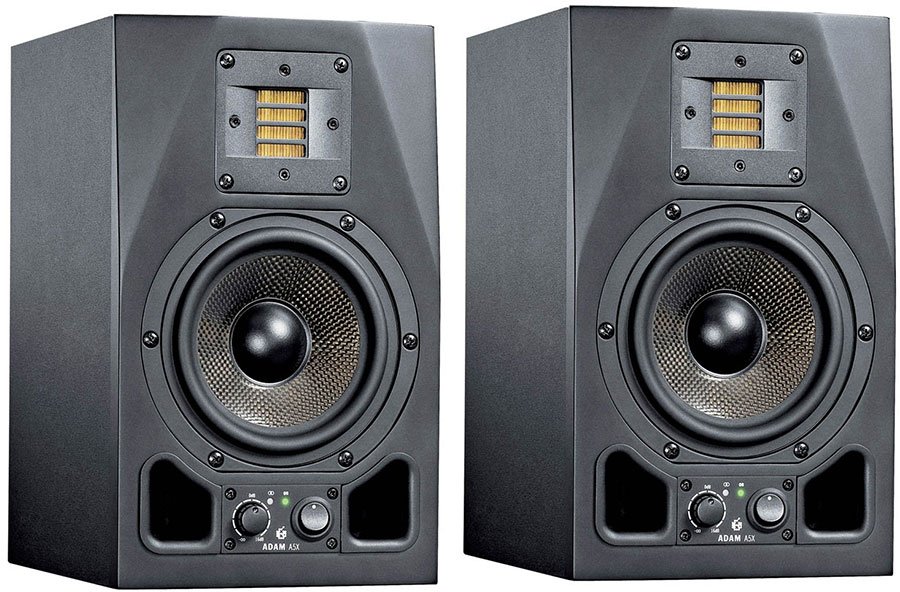

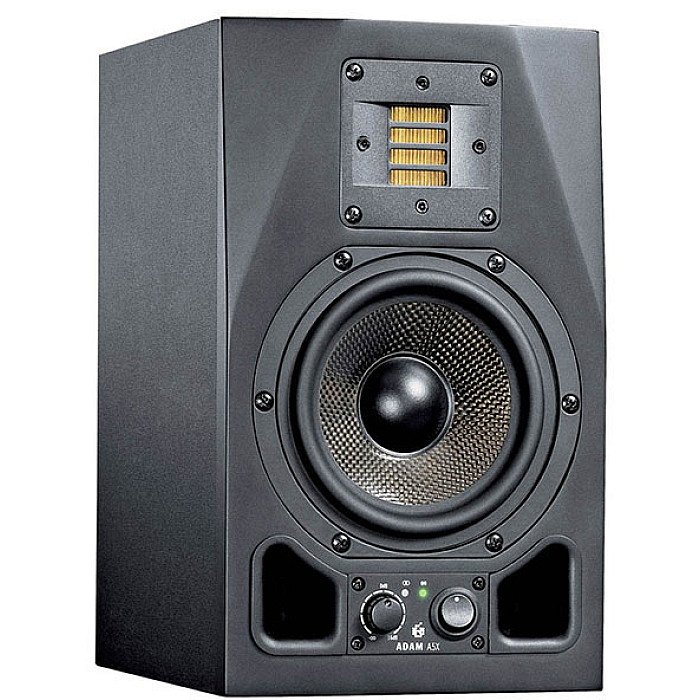

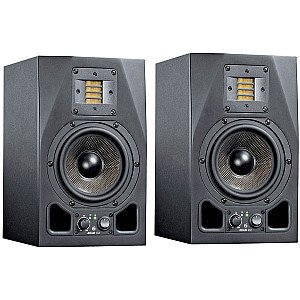

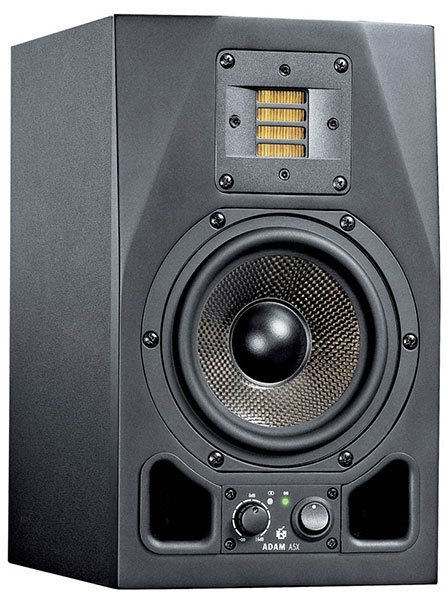

ADAM A5X Powered Monitor (Pair)

The small but acclaimed A5 managed to make itself a big name in both professional environments as well as in computer or desktop applications - now, the AX5 takes small-scale monitoring to the next level.

Evolution:

The similar dimensions and name could lead one believe that the A5X is nothing more than a new version of the A5. A quick listening however leaves no doubt that the A5X is much more than that thanks to

X-ART Technology

Like all other models of the AX-Series it features the proprietary X-ART tweeter. The very data of this technology shows that it is at the forefront of what tweeters can accomplish. Numerous listening tests have confirmed this.

A 5.5" Midwoofer reproduces the frequencies below 2.5kHz. The diaphragm is made from Carbon fiber/Rohacell/Glass fiber, which is the same composite structure shared in the next two bigger models. This material with minimum weight and maximum rigidity prevents break up resonances, resulting in an outstanding dynamic behaviour and impeccable sound characteristics.

Stereolink

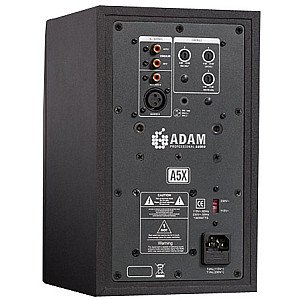

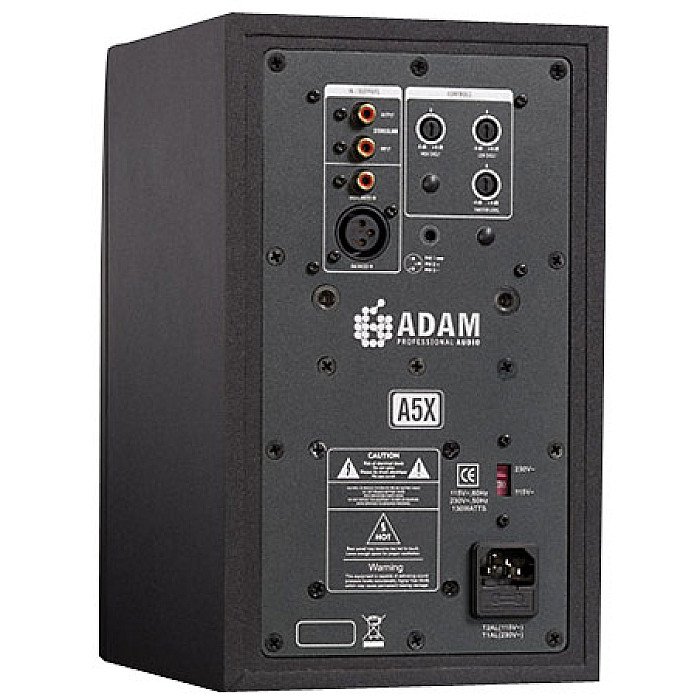

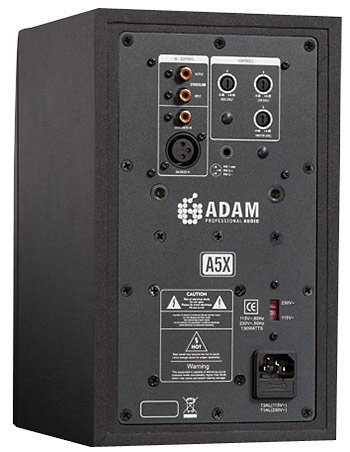

A very handy and exclusive feature found in the two smaller AX monitors is the Stereolink. This is accomplished by a pair of additional RCA connections that allow for a bypass of the second stereo channel to the other speaker.

This new technology connects two A5X speakers in such a manner as to allow the user the option to control the overall stereo volume of the system from either speakers gain control. This makes the A5X a natural for "mixer-less" desktop applications where overall system volume needs to be adjusted easily.

Reviews

"A sparkling and lively desktop monitor with an open, powerful character. Good filters and practical ergonomics as well as useful equipment make ADAMs A5X an ideal partner in multimedia nearfield sound." Stereo

Features/Specifications:

• Mid-Woofer: 5.5", 50W/75W (RMS/Peak)
• Tweeter: 4", 50W/75W (RMS/Peak), Type A/B
• Frequency Response: 50 Hz - 50 kHz
• THD 90dB/1m > 100 Hz: <0.6
• Input Sensitivity: 0 to +14 dB
• Low shelve > 5 kHz: ±6 dB
• High shelve < 300 Hz: ±6 dB
• Tweeter gain: ±4 dB
• Long term output: > 102 dB
• Max. peak: > 110 dB
• Crossover frequencies: 2500 Hz
• Input impedance: 30 KOhm
• Weight: 14.6 lb (6.6 kg)
• Magnetically shielded: No
• Dimensions: Height x Width x Depth: 280 mm x 170 mm x 220 mm
