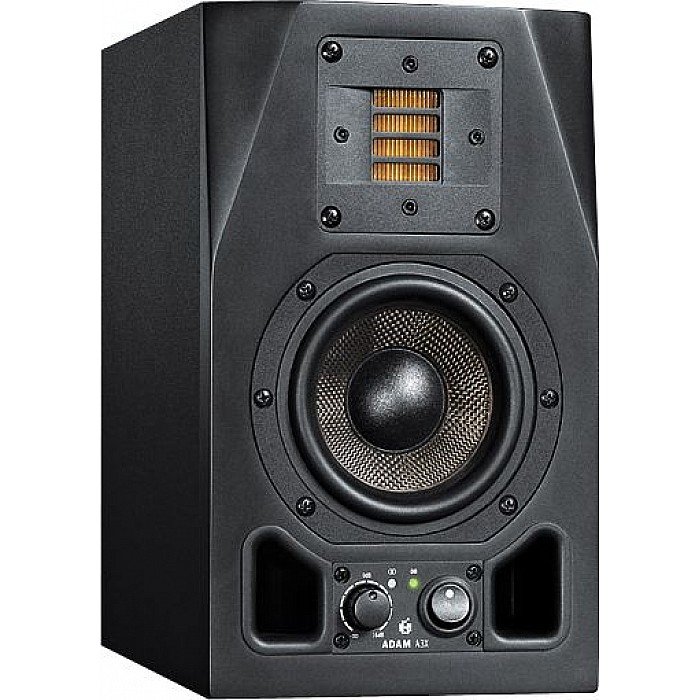

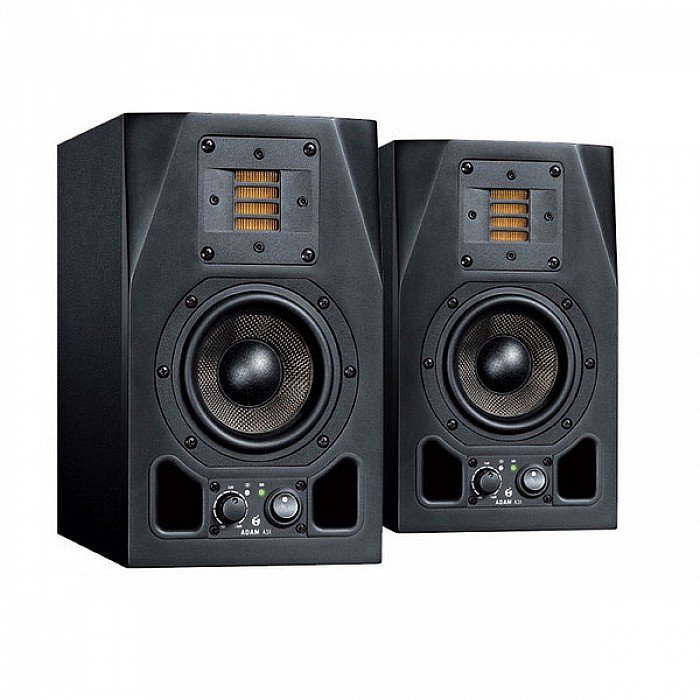

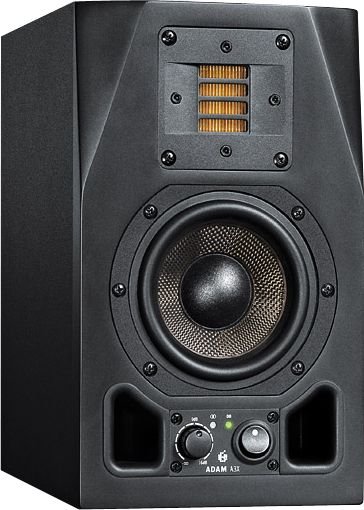

ADAM A3X Powered Monitor (Pair)

Spesifikasi ADAM A3X Powered Monitor (Pair)

ADAM A3X Powered Monitor (Pair)

The smallest 'big' sound ever:

With the A3X, ADAM Audio present their smallest monitor to date, making it perfectly suited for all environments - particularly where space is limited, but sound shouldn?t be sacrificed.

X-ART Technology:

Like all other models of the AX-Series, the A3X features the proprietary X-ART tweeter. The very data of this technology shows that it is at the forefront of what tweeters can accomplish. Numerous listening tests have confirmed this.

The new X-ART ('X' for eXtended frequency response) features an even higher degree of efficiency, higher sound pressure levels, and another extension of the frequency response.

Stereolink:

A very handy and exclusive technology found in the two smaller AX monitors is the Stereolink. This is accomplished by a pair of additional RCA connections that allow for a bypass of the second stereo channel to the other speaker.

This new technology connects two A3X speakers in such a manner as to allow the user the option to control the overall stereo volume of the system from either speaker?s gain control. This makes the A3X a natural for 'mixer-less' desktop applications where overall system volume needs to be adjusted easily.

Controls and Connectors:

The front of the A3X sports dual ports for surprisingly low frequency response down to 60Hz. The front panel also has power and gain controls. The rear panel includes a tweeter gain control as well as balanced (XLR) jacks and unbalanced (RCA) jacks, allowing for greater connection flexibility.

Features/Specifications:

• Mid-Woofer: 4.5", 50W/75W (RMS/Peak)
• Tweeter: 4", 25W/40W (RMS/Peak), Type A/B
• Frequency Response: 60 Hz - 50 kHz
• THD 90dB/1m > 100 Hz: <0.6
• Input Sensitivity: 0 to +14 dB
• Tweeter gain: ±4 dB
• Long term output: > 98 dB
• Max. peak: > 106 dB
• Crossover frequencies: 2800 Hz
• Input impedance: 10 KOhm
• Weight: 10.1 lb (4.6 kg)
• Magnetically shielded: No
• Dimensions: Height x Width x Depth: 10" (252 mm) x 6" (150 mm) x 7.5" (185 mm)
