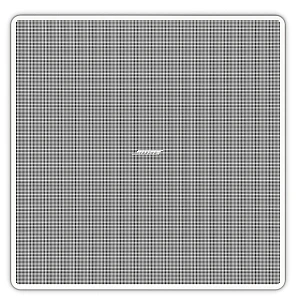

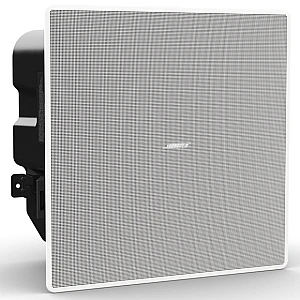

Bose Bose EdgeMax EM180 Loudspeaker Bose EdgeMax EM180 Loudspeaker

Spesifikasi Bose EdgeMax EM180 Loudspeaker

Bose EdgeMax EM180 Loudspeaker

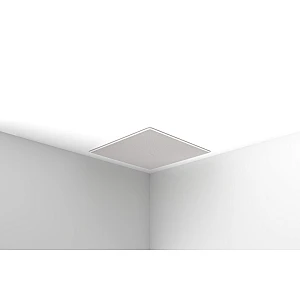

Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.



FEATURES

PhaseGuide technology – provides unique asymmetrical vertical pattern for room-filling coverage when mounting near wall-ceiling boundary

Provides improved room visual appearance – for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers

Nominal 180° horizontal coverage – designed for in-ceiling mounting along wall coverage zones

High-frequency compression driver – for best-in-class audio quality with superior frequency response and coverage consistency versus typical dome tweeters

8-inch woofer – with wall-boundary loading provides extended bass impact

2-way passive crossover with 70/100V transformer

New auto-hold, spring-loaded mounting arms – for fast, easy installs

Magnetically attached grill – for quick access to wiring and tap settings

UL1480A listing – for air-handling (plenum) space installation



SPECS

Technical Summary

Frequency Response (+/-3 dB)
50 Hz - 18 kHz


Frequency Range (-10 dB)
45 Hz - 20 kHz

Nominal Dispersion
75° Vertical
180° Horizontal

Long-Term Power Handling
125 W (500 W peak)

Sensitivity (SPL / 1 W @ 1 m)
93 dB SPL


Maximum SPL @ 1 m
114 dB SPL (120 dB SPL peak)

Transducers
1 x 8-inch woofer
1 x compression driver

Nominal Impedance
8 Ω (transformer bypassed)

Rp.12.700.000,00Tersedia

Bose EdgeMax EM180 Loudspeaker

Merek: Bose
Kode Produk: Bose EdgeMax EM180
Ketersediaan: Tersedia
Harga:
Rp.12.700.000,00
Home Credit Instan Kredit Proses Hanya 30 menit.
Mau cicilan tanpa kartu kredit sekarang ANDA BISA...Cukup bawa Fc Ktp / Sim . Kunjungi kami sekarang..
  • 6x Rp.2.453.247,86
  • 9x Rp.1.760.737,65
  • 12x Rp.1.421.675,22
  • 18x Rp.1.098.495,02
  • AeonUp to
    24x
  • BCAUp to
    24x
  • MandiriUp to
    24x
  • MastercardUp to
    12x
  • Visa (2006-2014)Up to
    12x

Spesifikasi Bose EdgeMax EM180 Loudspeaker

Bose EdgeMax EM180 Loudspeaker

Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.



FEATURES

PhaseGuide technology – provides unique asymmetrical vertical pattern for room-filling coverage when mounting near wall-ceiling boundary

Provides improved room visual appearance – for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers

Nominal 180° horizontal coverage – designed for in-ceiling mounting along wall coverage zones

High-frequency compression driver – for best-in-class audio quality with superior frequency response and coverage consistency versus typical dome tweeters

8-inch woofer – with wall-boundary loading provides extended bass impact

2-way passive crossover with 70/100V transformer

New auto-hold, spring-loaded mounting arms – for fast, easy installs

Magnetically attached grill – for quick access to wiring and tap settings

UL1480A listing – for air-handling (plenum) space installation



SPECS

Technical Summary

Frequency Response (+/-3 dB)
50 Hz - 18 kHz


Frequency Range (-10 dB)
45 Hz - 20 kHz

Nominal Dispersion
75° Vertical
180° Horizontal

Long-Term Power Handling
125 W (500 W peak)

Sensitivity (SPL / 1 W @ 1 m)
93 dB SPL


Maximum SPL @ 1 m
114 dB SPL (120 dB SPL peak)

Transducers
1 x 8-inch woofer
1 x compression driver

Nominal Impedance
8 Ω (transformer bypassed)
