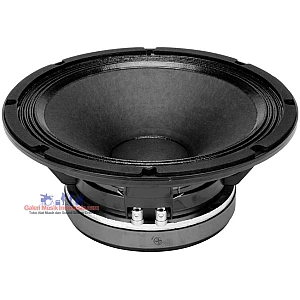

Beyma 12 MI 100 12 Inch Midrange Speaker
Kode Produk: 12 MI 100
Ketersediaan: Tersedia
Ketersediaan: Tersedia
Harga:
Rp.3.100.000,00
Spesifikasi Beyma 12 MI 100 12 Inch Midrange Speaker
Beyma 12 MI 100 12 Inch Midrange Speaker
- BEYMA 12Mi100 12" MID-BASS SPEAKER HANDLES 450 WATTS AES & 900 WATTS PROGRAM POWER HANDLING
- ACCURATE & EXTREMELY CLEAN SMOOTH MIDRANGE
- VERY HIGH EFFICIENCY OF 5.1%, EXTREMELY LINEAR FREQUENCY RESPONSE
- DESIGNED FOR THE HIGHEST QUALITY MID-BASS REPRODUCTION IN A 3 OR 4-WAY SPEAKER SYSTEM
- ONE OF THE BEST SOUNDING MID-BASS 12" SPEAKERS YOU'LL FIND ANYWHERE!
|
Specifications |
|
|
Nominal Basket Diameter |
12" / 300mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
450 Watts |
| Program Power | 900 Watts |
|
Frequency Response |
40Hz - 4.0kHz |
|
Sensitivity (1W/1m) |
100dB |
|
Voice Coil Diameter |
3" / 77mm |
| Recom. Enclosure Volume | .07-1.75 ft3 / 20-50 Liters |
| Voice Coil Length | 13.5 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 24 mm |
| BL Factor | 21.6 N/A |
| Magnetic Assembly Weight | 14.2 lb. / 6.5 kg. |
|
Mounting Information |
|
| Overall Diameter | 12.28" / 312mm |
| Bolt Circle Diameter | 11.6" / 294.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 10.9" / 277.5mm |
| - Rear Mount | 11.02" / 280mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.19 ft3 / 5.5 Liters |
| Overall Depth | 5.47" / 139mm |
| Net Weight | 15.8 lb. / 7.2 kg. |
| Shipping Weight | 17.6 lb. / 8 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Aluminum Wire |
| Magnet | High Currie Temperature Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 58 Hz |
| Impedance (Re) | 6.3 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 5.54 |
| Electrical Factor(Qes) | .23 |
| Total Q (Qts) | .22 |
| Comp. Equivalent Vol. (Vas) | 2.26 ft3 / 64 Liters |
| Voice Coil Overhang (Xmax) | 2.0 mm |
| Diaphragm Mass (Mms) | 47 Grams |
| Surface Area of Cone (Sd)m2 | 0.0530m2 |
| Reference Efficiency | 5.1% |
| Displacement Volume (Vd) | 159 cm3 |
|
LOW FREQ. RESPONSE: BASS REFLEX CABINET Vb=30L, Fb=94HZ |
|
 |
|
|
FREQUENCY RESPONSE & IMPEDANCE GRAPH |
|
 |
|
| MOUNTING INFORMATION | |
 |
|
