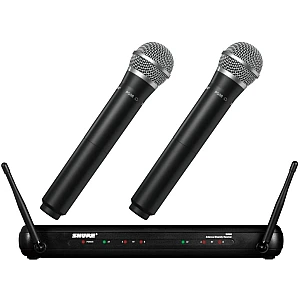

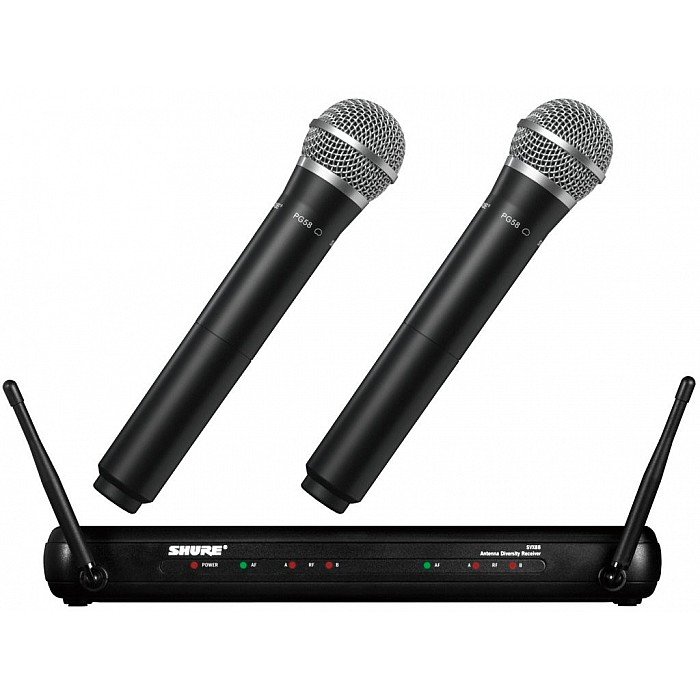

Shure SVX288/PG58 Dual Vocal Wireless System

Spesifikasi Shure SVX288/PG58 Dual Vocal Wireless System

Shure SVX288/PG58 Dual Vocal Wireless System

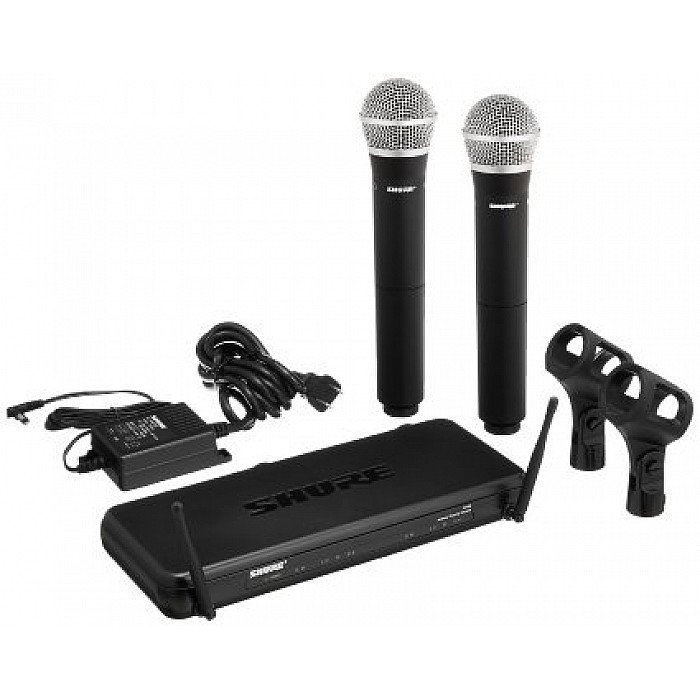

Components

•

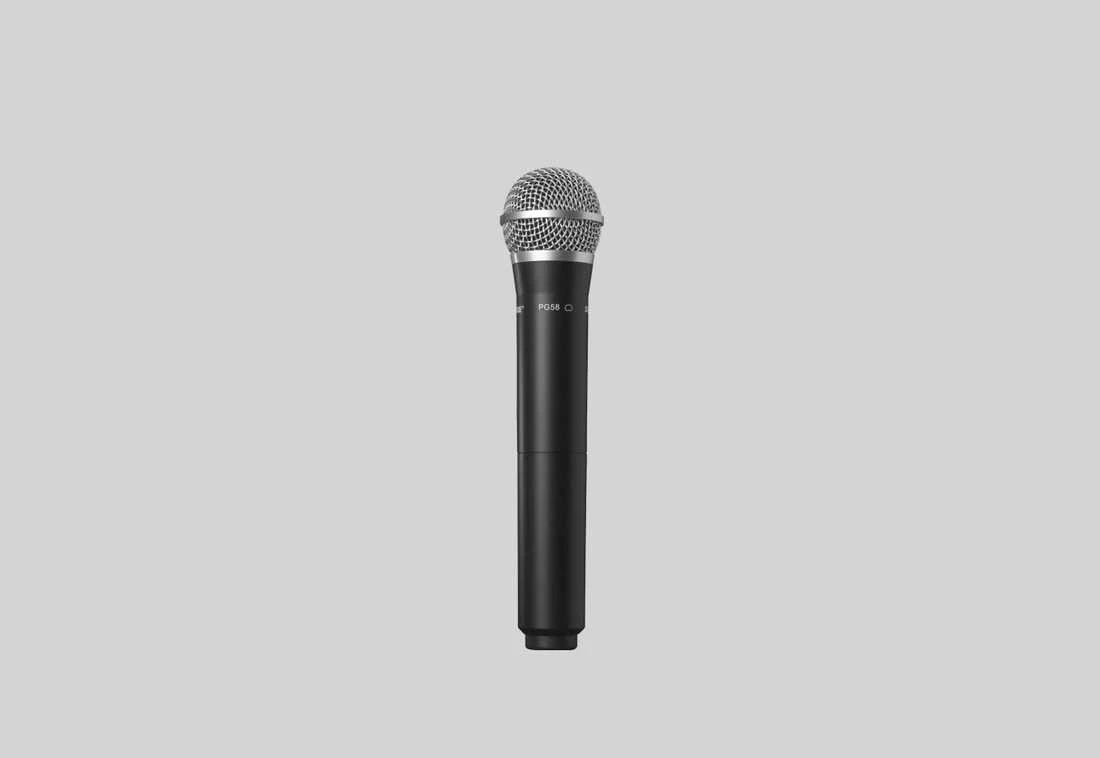

• PG58 with SVX2 Wireless Handheld Transmitter

Features

    RF Level Switch between 1mW and 10mW
    2 “AA” batteries
    Up to 10 hours of battery life
    Bottom on/off switch design
    Anti-rolling ring on grille for PG28
    Power and battery status LED
    6 color rings for microphone identification

Tech Specs

    Transmitter Type: Handheld
    Dimensions: 254 mm X 51 mm diameter
    RF Output Power: 1
    Battery, endurance: 10 h
    Weight: 270 g

Further Technical Specs

    Audio Input Level: –20 dBV maximum
    Input Impedance: 22 kΩ
    RF Output (dependent on applicable country regulations):
    HI power mode: 10 mW maximum
    LO power mode: 1 mW maximum
    Weight: 270 g (10.2 oz.)(without batteries)
    Housing: Molded ABS
    Power Requirements: 2 “AA” size alkaline or rechargeable batteries

•

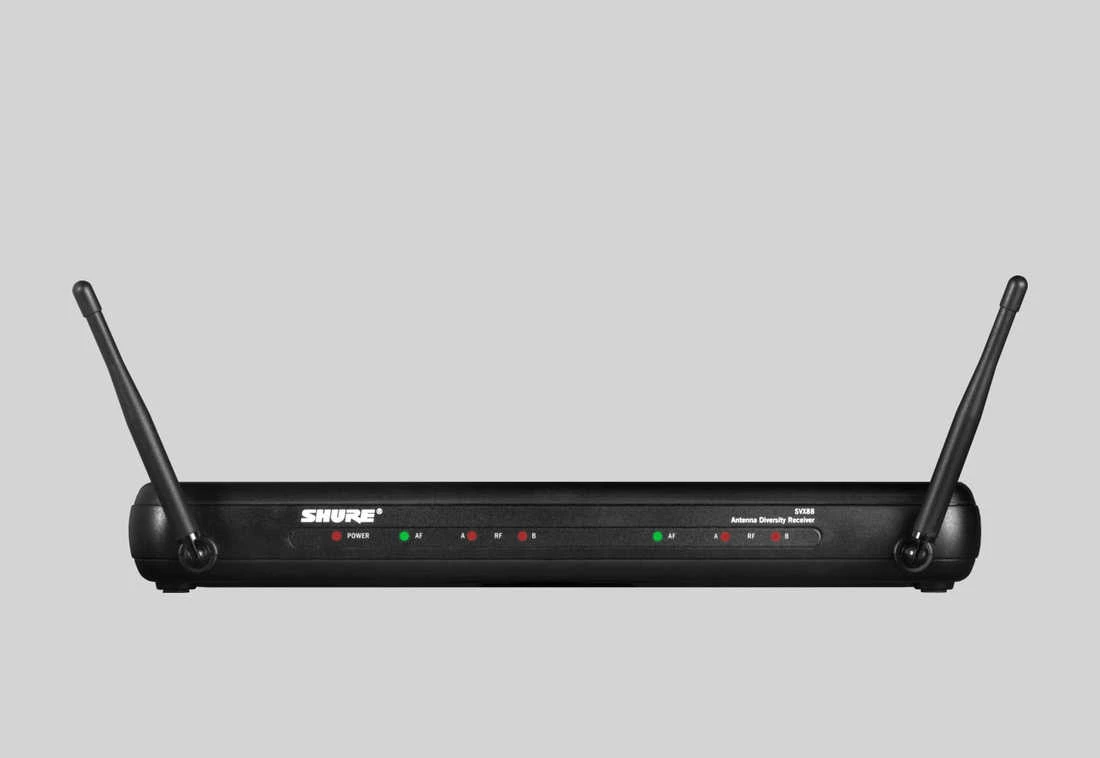

• SVX88 Dual Channel Diversity Receiver.

Features

    Up to 8 selectable channels
    Up to 4 compatible systems*
    Antenna Switching Diversity
    Adjustable Squelch Level
    1/4" and XLR output
    Available with Handheld and Lavalier system packages

Tech Specs

    Power Supply: 12 to 18 V DC @ 220 mA, supplied by external power supply
    Maximum Output Level: XLR connector into 100 kΩ load: -16 dBV, 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV mW

Further Technical Specs

    Dimensions: 32 mm X 168 mm X 104.5 mm (1.26 in. x 6.625 in. x 4.2 in.)
    Weight: 245 g (11.5 oz.)
    Housing: Molded ABS
    Audio Output Level (Ref. ±48 kHz deviation with 1 kHz tone):
    XLR connector into 100 kΩ load: -16 dBV (MIC)
    6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV (MIC)
    Output Impedance:
    XLR connector: 600 Ω
    6.35 mm (1/4”) connector: 600 Ω
    Sensitivity: –105 dBm for 12 dB SINAD, typical
    Image Rejection: >50 dBm, typical
    Power Requirements: 12 to 18 V DC @ 130 mA, supplied by external power supply
