Yamaha SPX2000 Digital Effects Processor

Yamaha SPX2000 Digital Effects Processor

Overview

Yamaha SPX2000 adalah digital multi-effects processor profesional yang menghadirkan kualitas efek kelas studio dengan REV-X Reverb, berbagai efek klasik seri SPX, serta pemrosesan audio 24-bit/96 kHz. Cocok digunakan untuk live sound, studio recording, broadcast, dan instalasi audio profesional.

Spesifikasi Utama

Tipe: Digital Multi-Effects Processor
Model: SPX2000
Brand: Yamaha
Channel: 2 Channel Stereo

Input:

• 2 × XLR Balanced
• 2 × 1/4″ TRS Balanced

Output:

• 2 × XLR Balanced
• 2 × 1/4″ TRS Balanced

Digital I/O:

• AES/EBU (XLR)

Processing: 32-bit Internal DSP
A/D & D/A Converter: 24-bit
Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz
Frequency Response: 20 Hz – 40 kHz
Dynamic Range: 106 dB
THD: <0.05%
Power Supply: AC 100–240V, 50/60Hz
Power Consumption: 25 W
Rack Size: 1U Rack Mount

Fitur

• REV-X Reverb berkualitas studio.
• 24-bit/96 kHz digital processing.
• 32-bit internal DSP.
• Preset, Classic, dan User Memory.
• AES/EBU Digital I/O.
• USB untuk editor software.
• MIDI In/Out/Thru.
• Word Clock Input.

Performa

Menghasilkan efek reverb, delay, modulation, pitch, dan multi-effects dengan kualitas tinggi serta latensi rendah. Sangat cocok untuk aplikasi live sound, studio recording, broadcast, dan produksi audio profesional.

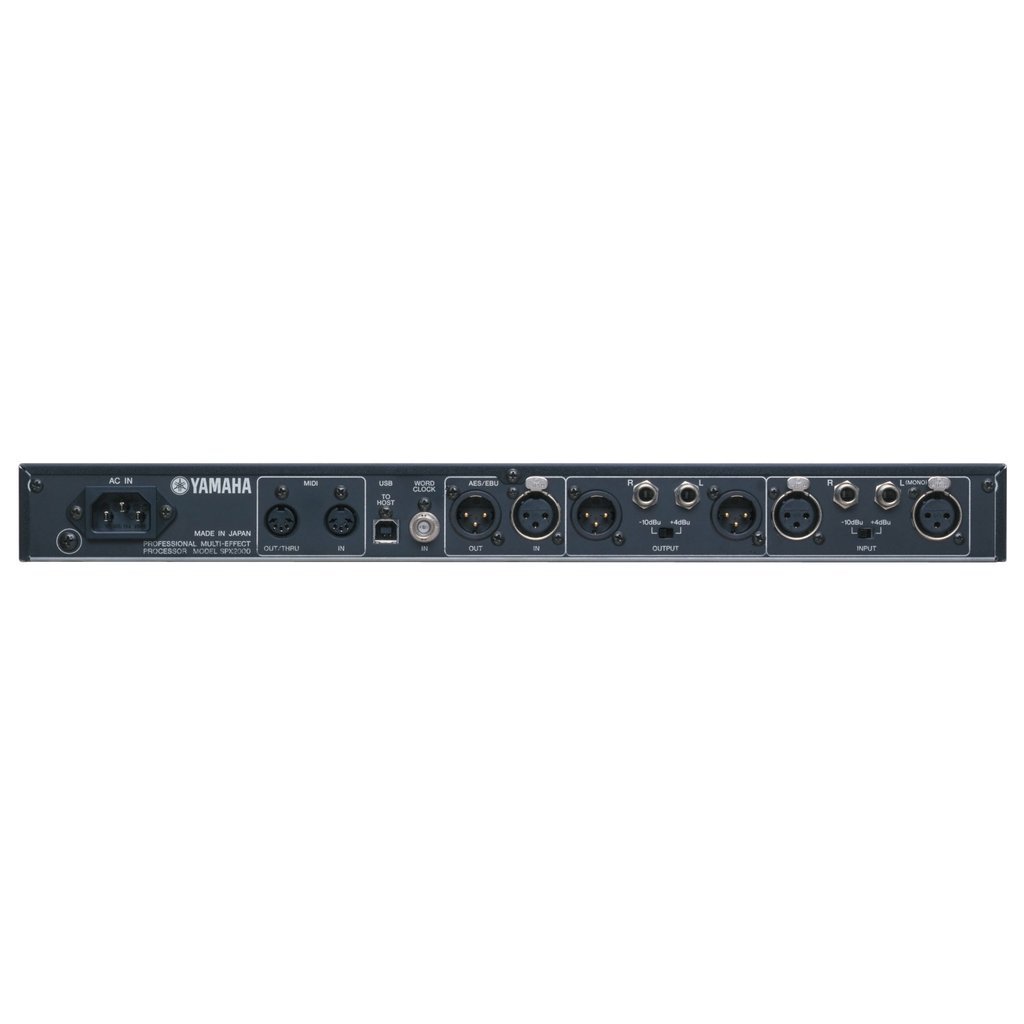

Konektivitas

• 2 × XLR Balanced Input
• 2 × 1/4″ TRS Input
• 2 × XLR Balanced Output
• 2 × 1/4″ TRS Output
• AES/EBU Digital I/O
• MIDI In / Out / Thru
• USB
• Word Clock In

Control Panel

• LCD Display
• Parameter Encoder
• Effect Select
• Memory Recall
• Utility Menu
• Input Level Meter

Kelengkapan

• 1 Unit Yamaha SPX2000 Digital Effects Processor
• Kabel Power AC
• User Manual
