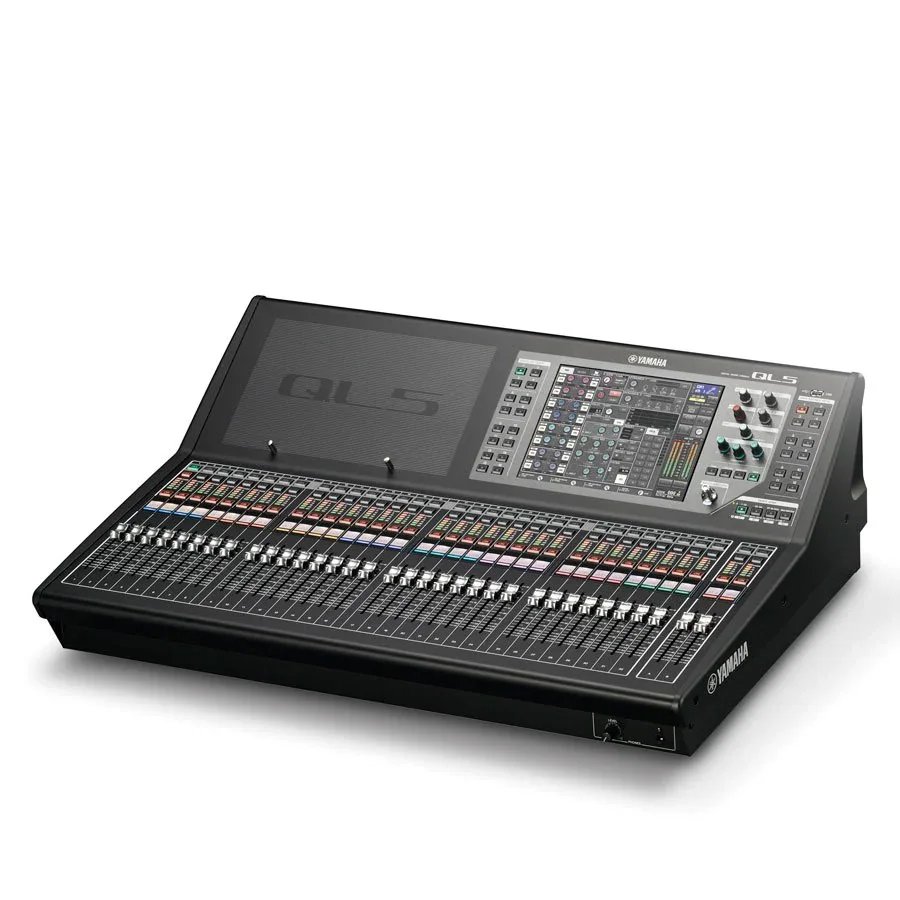

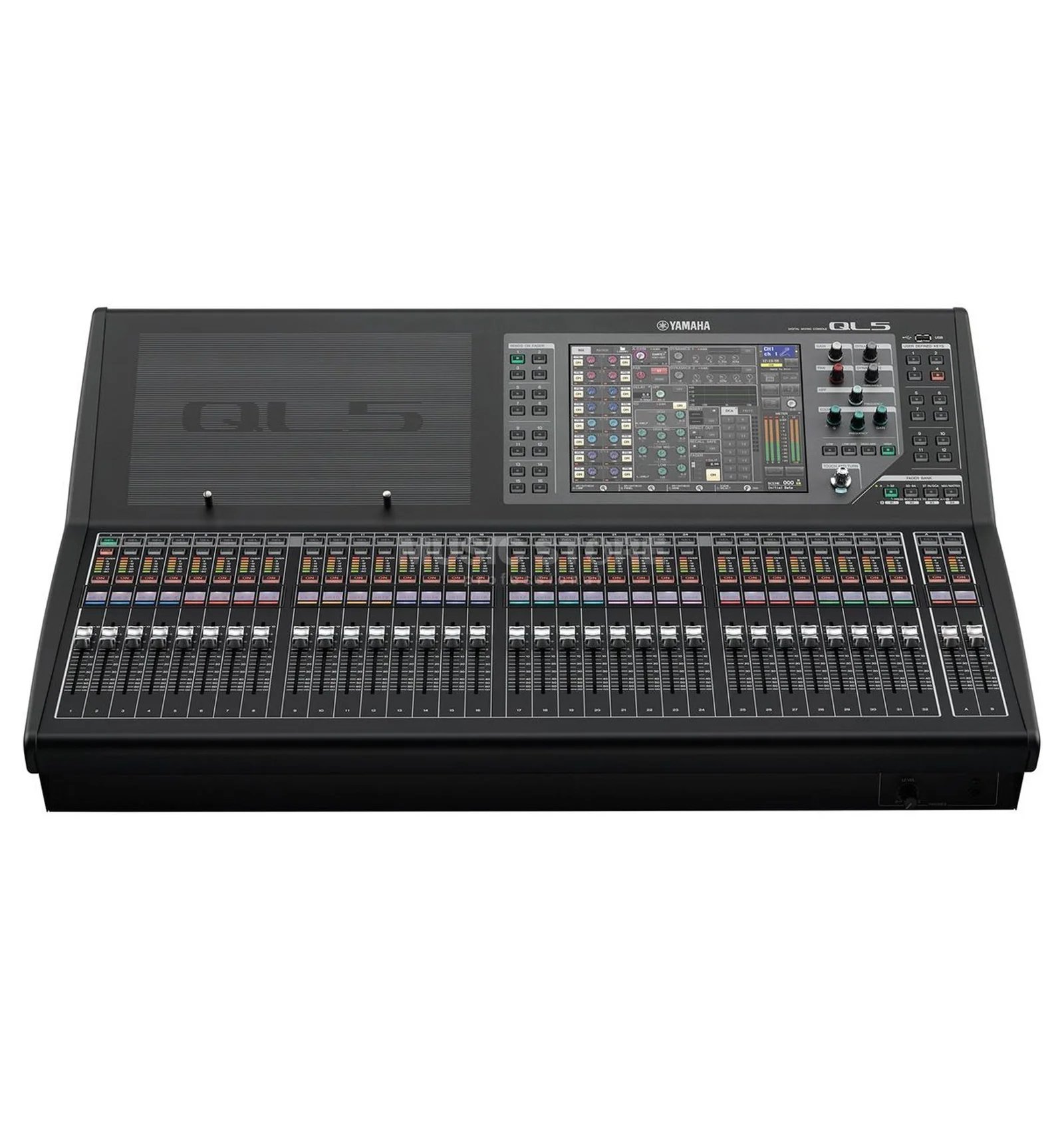

Yamaha QL5 64 Channel Digital Mixer

Yamaha QL5 64 Channel Digital Mixer

Spesifikasi Utama

Type: Digital Mixing Console
Model: QL5
Brand: Yamaha
Mix Channels: 64 Mono + 8 Stereo
Mic/Line Input: 32 XLR
Analog Outputs: 16 XLR
Bus: 16 Mix, 8 Matrix, Stereo, Mono
Motorized Fader: 32 Channel + 2 Master (34 × 100 mm)
Display: 10.1″ Color Touchscreen
Processing: Virtual Circuitry Modeling (VCM) Effects
Dante: Built-in 64 × 64 Dante I/O @ 48 kHz
Expansion: 2 × Mini-YGDAI Card Slots
Recording: USB Stereo Recording & Dante Virtual Soundcard Support
Dimensions: ±828 × 272 × 563 mm
Weight: ±21,8 kg

Fitur

• 64 mono + 8 stereo mixing channels.
• Built-in Dante 64×64.
• 34 motorized fader 100 mm.
• Layar sentuh warna 10,1 inci.
• Virtual Circuitry Modeling (VCM) Effects.
• Premium Rack dan GEQ.
• 2 Mini-YGDAI expansion slots.
• USB stereo recording.
• Mendukung Yamaha StageMix dan QL Editor.
• Scene Memory hingga 300 scene.

Performa

Yamaha QL5 menghadirkan kualitas audio profesional dengan latency kurang dari 2,5 ms, pemrosesan DSP yang stabil, serta integrasi Dante yang andal. Sangat ideal untuk aplikasi live, broadcast, teater, dan instalasi profesional yang membutuhkan fleksibilitas routing serta kontrol yang cepat.

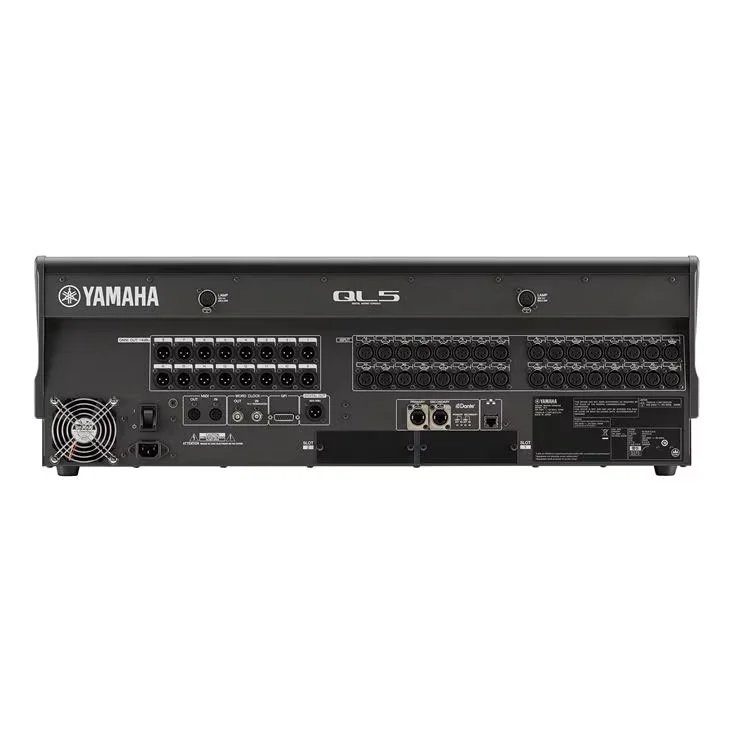

Konektivitas

• 32 × XLR Mic/Line Input
• 16 × XLR Output
• Dante Primary & Secondary (EtherCON)
• AES/EBU Digital Output
• 2 × Mini-YGDAI Expansion Slot
• USB Host
• MIDI In/Out
• Word Clock In/Out
• GPI I/O
• RJ45 Network
• Headphone Output

Kelengkapan

• 1 Unit Yamaha QL5
• Power Cable
• Dust Cover
• User Manual
• DVS License
• Nuendo Live License
