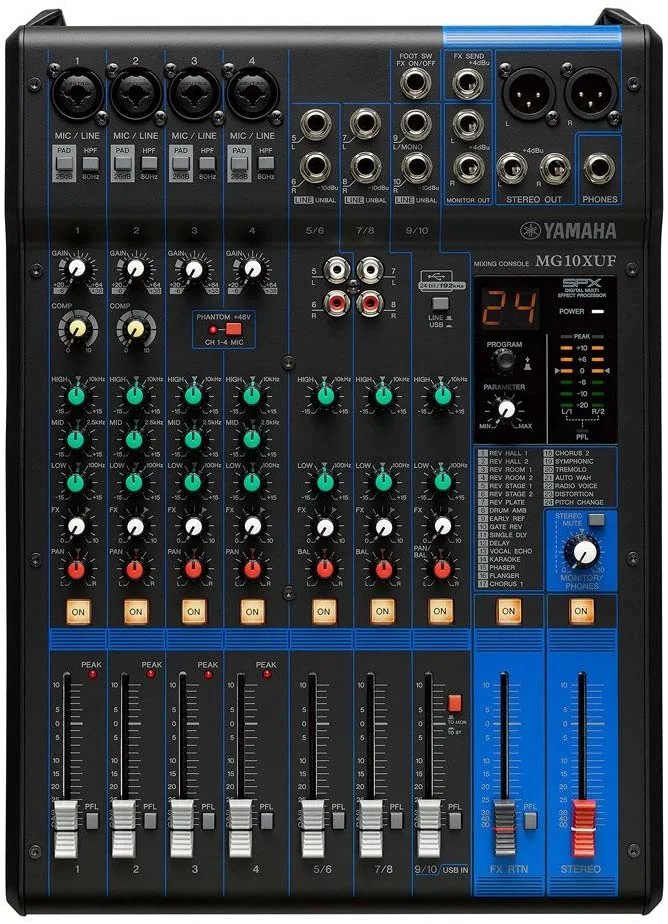

Yamaha MG10XUF 10 Channel Analog Mixer

Yamaha MG10XUF 10 Channel Analog Mixer

Spesifikasi Utama

• Type: Analog Mixing Console with USB
• Model: MG10XUF
• Brand: Yamaha
• Channels: 10 Channel
• Mic Inputs: 4 × Mic / Line (XLR Combo)
• Line Inputs: 10 Input (4 Mono + 3 Stereo)
• Preamps: D-PRE Class-A Microphone Preamps
• Compressor: 1-Knob Compressor (CH 1–2)
• DSP: SPX Digital Effects (24 Preset)
• USB Audio: 2-In / 2-Out, 24-bit / 192 kHz
• Phantom Power: +48V
• Frequency Response: 20 Hz – 48 kHz (+0.5 dB / -1.5 dB)
• THD: 0.03%
• Power Consumption: 22.9W
• Dimensions: 275 × 110 × 390 mm
• Weight: 3.3 kg

Fitur

• 10-channel analog mixer.
• D-PRE Class-A microphone preamps.
• SPX Digital Effects dengan 24 preset.
• USB Audio Interface 24-bit/192 kHz.
• 1-Knob Compressor pada channel 1–2.
• 3-band EQ pada channel mono.
• +48V Phantom Power.
• Fader dan Mute Switch untuk kontrol yang lebih presisi.
