Yamaha HS5 Powered Studio Monitor (Single Piece)

Overview

Yamaha HS5 Adalah Active Studio Monitor 2-Way Profesional Yang Dirancang Untuk Recording, Mixing, Mastering, Podcast Production, Broadcast, Content Creation, Dan Home Studio Monitoring. Sebagai Bagian Dari Seri HS Yang Terkenal, HS5 Menghadirkan Karakter Monitoring Flat Dan Akurat Dengan Woofer 5 Inch Dan Tweeter 1 Inch, Menjadikannya Salah Satu Referensi Studio Monitor Paling Populer Di Dunia.

Speaker Configuration

• 2-Way Bi-Amplified Powered Studio Monitor
• 5-Inch Cone Woofer
• 1-Inch Dome Tweeter
• Bass Reflex Cabinet Design
• Dedicated LF & HF Amplification
• Nearfield Monitoring System
• Single Speaker Configuration (1 Piece)

Driver System

Low Frequency Driver

• 5-Inch Cone Woofer
• High Efficiency Magnetic Structure
• Accurate Bass Reproduction
• Fast Transient Response
• Controlled Low-End Performance
• Optimized For Nearfield Monitoring

High Frequency Driver

• 1-Inch Dome Tweeter
• High Definition Treble Reproduction
• Extended Frequency Response Up To 30 kHz
• Wide Dispersion Characteristics
• Detailed High Frequency Monitoring

Amplifier System

Bi-Amplified Design

• Total Power Output: 70 Watts
• LF Amplifier: 45 Watts
• HF Amplifier: 25 Watts
• Dedicated Amplification Per Driver
• High Headroom Performance
• Low Distortion Operation

Audio Performance

• Frequency Response: 54 Hz – 30 kHz (-10 dB)
• Frequency Response: 74 Hz – 24 kHz (-3 dB)
• Maximum Accuracy Monitoring Design
• Wide Dynamic Range
• Detailed Midrange Reproduction
• Precise Stereo Imaging
• Flat Reference Sound Signature

Acoustic Features

Cabinet Design

• Bass Reflex Ported Enclosure
• Low Resonance MDF Cabinet
• Three-Way Mitered Joint Construction
• Reduced Cabinet Vibration
• Optimized Acoustic Response

Noise Reduction Technology

• Advanced Port Design
• Reduced Air Turbulence
• Lower Port Noise
• Improved Bass Clarity
• Enhanced Monitoring Accuracy

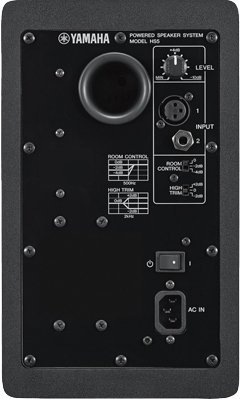

Room Tuning Controls

Room Control

• 0 dB
• -2 dB
• -4 dB
• Helps Reduce Excessive Bass Build-Up Near Walls
• Optimized Small Room Performance

High Trim

• +2 dB
• 0 dB
• -2 dB
• Fine Adjustment Of High Frequencies
• Flexible Room Adaptation

Connectivity

Audio Inputs

• 1 × XLR Balanced Input
• 1 × 1/4″ TRS Balanced Input
• Balanced & Unbalanced Signal Compatible
• Audio Interface Compatible
• Mixer Compatible
• Keyboard Compatible

Applications

Studio Production

• Recording Studio Monitoring
• Mixing Applications
• Mastering Reference
• Audio Editing
• DAW Production

Content Creation

• Podcast Production
• Voice Over Recording
• YouTube Content Creation
• Streaming Setup
• Multimedia Editing
