Yamaha DBR 15 Active Speaker

Yamaha DBR 15 Active Speaker

Spesifikasi

• Produk: Yamaha DBR15
• Jenis: Active / Powered PA Speaker 2-Way
• Sistem: Bi-Amp Powered, Bass-Reflex
• Woofer: 15″ Cone
• LF Voice Coil: 2,5″
• HF Driver: 1″ Throat Compression Driver
• HF Diaphragm: 1,4″
• Magnet: Ferrite
• Output Power Dynamic: 1.000 W
  • LF: 800 W
  • HF: 200 W
• Output Power Continuous: 465 W
  • LF: 400 W
  • HF: 65 W
• DSP: FIR-X Tuning™ dengan Linear Phase FIR Filter
• DSP Preset: D-CONTOUR — FOH/Main, Monitor, Off
• HPF: Off, 100 Hz, 120 Hz
• Input 1: 1× XLR/Phone Combo
• Input 2: 1× XLR/Phone Combo + 2× RCA
• Output: 1× XLR — Parallel Through atau CH1+CH2 Mix
• Amplifier: Class-D
• Cooling: Fan Cooling, 4 Speed
• A/D Conversion: 24-bit / 48 kHz
• Proteksi: Clip Limiting, Integral Power Protection, DC-Fault Protection
• Pole Socket: 35 mm
• Rigging Points: 3 titik, kompatibel dengan M8 Eyebolts

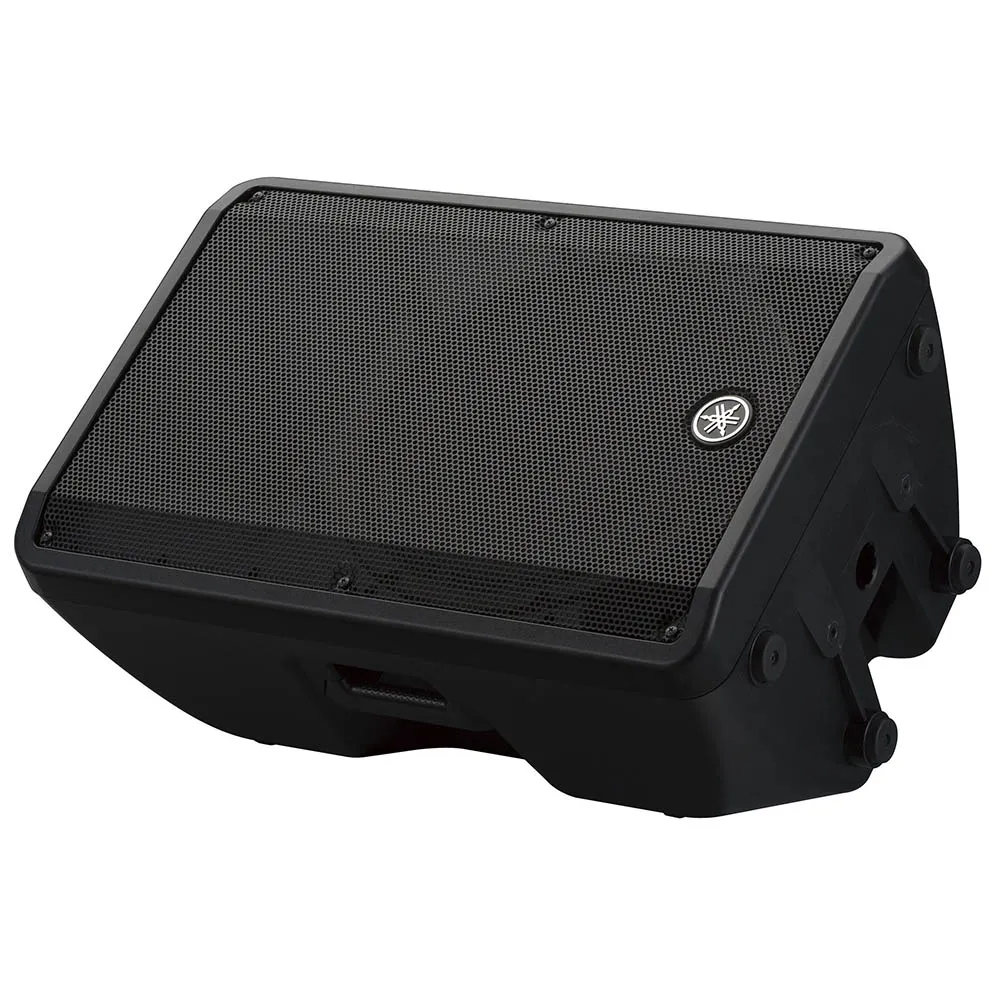

• Floor Monitor: 50° symmetrical
• Cabinet: Plastic, warna Black

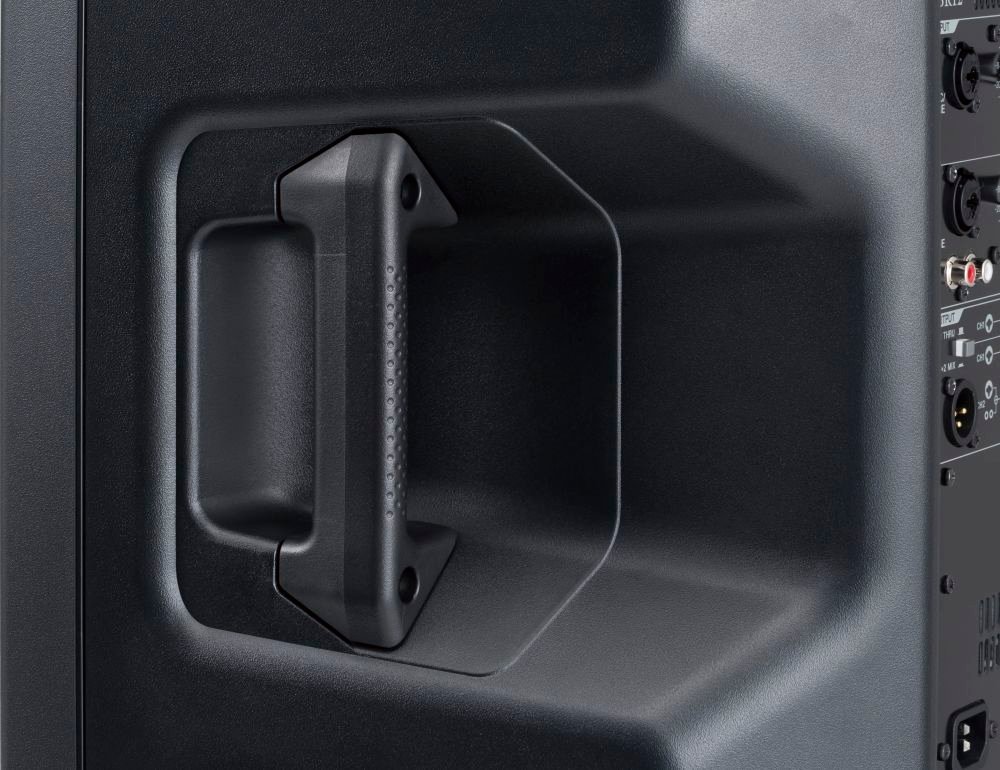

• Handle: 2× Side Handle
• Dimensi (W × H × D): 455 × 700 × 378 mm
• Berat: 19,3 kg
