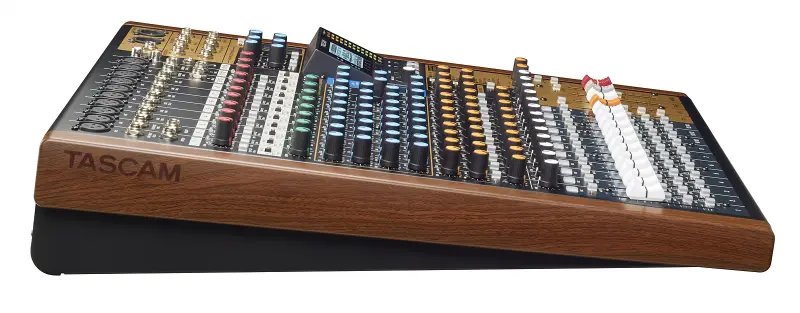

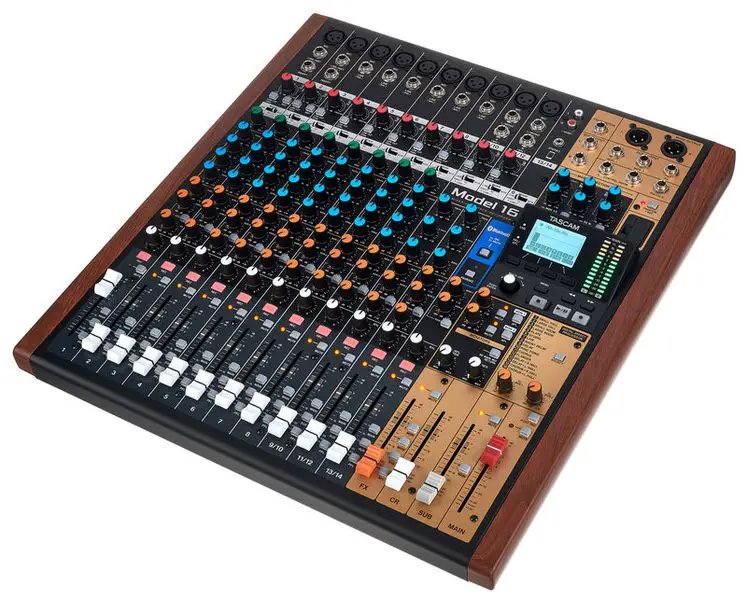

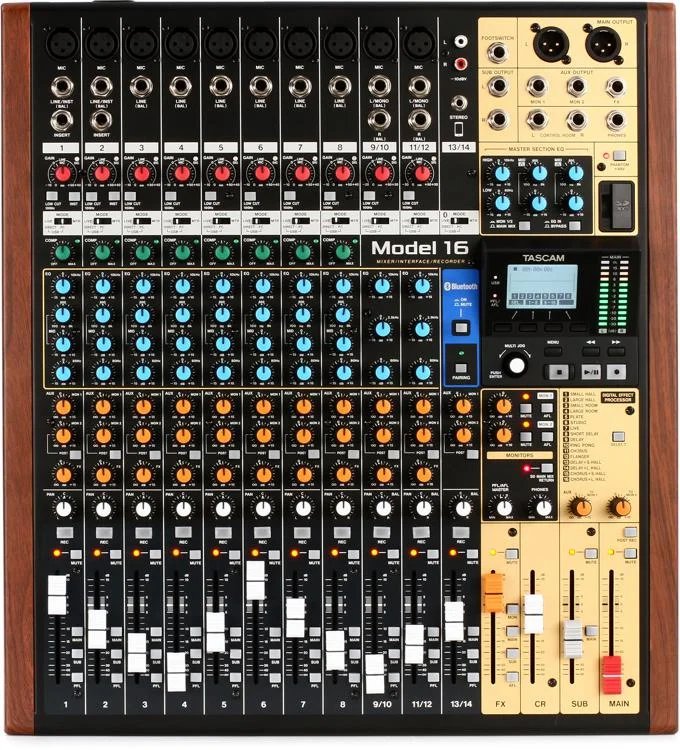

Tascam Model 16 Multi-Track Live Recording Console

Tascam Model 16 Multi-Track Live Recording Console

Spesifikasi Utama

Type: Analog Mixer / Multitrack Recorder / USB Audio Interface
Model: Model 16
Brand: Tascam
Mixer Channels: 14 Input Channel
Recording Tracks: 16 Track Multitrack Recorder
Mic Preamps: 10 × Tascam Ultra-HDDA Microphone Preamps
Mic Inputs: 10 × XLR Mic Input
Line Inputs: 12 × Balanced Line Input
Hi-Z Input: Channel 1–2
Phantom Power: +48V (Channel Mic Input)
Recorder Media: SD / SDHC / SDXC Card (hingga 512 GB)
Recording Format: WAV 44.1 / 48 kHz, 16/24-bit
USB Interface: USB 16 In / 14 Out Audio Interface
Bluetooth: Bluetooth Audio Receiver
Effects: 16 Built-in Digital Effects
Dimensions: ±430 × 112,9 × 463 mm
Weight: ±7 kg

Fitur

• 14-channel analog mixer dengan 16-track recorder internal.
• 10 Ultra-HDDA mic preamp dengan noise rendah.
• Rekam langsung ke SD card tanpa komputer.
• USB audio interface untuk koneksi DAW.
• One-knob compressor pada channel 1–8.
• 3-band EQ dengan sweepable mid frequency.
• Built-in multi-effects (reverb, delay, chorus, flange).
• Bluetooth audio playback.
• Input mode LIVE / USB / MTR untuk fleksibilitas routing.
• MIDI In/Out untuk integrasi perangkat eksternal.
• 60 mm fader channel.

Performa

Tascam Model 16 memberikan solusi all-in-one untuk mixing dan recording dengan karakter analog serta kemudahan workflow digital. Kemampuan merekam hingga 16 track langsung ke SD card dan USB multichannel interface membuatnya ideal untuk live recording, produksi musik, maupun sistem studio kecil profesional.

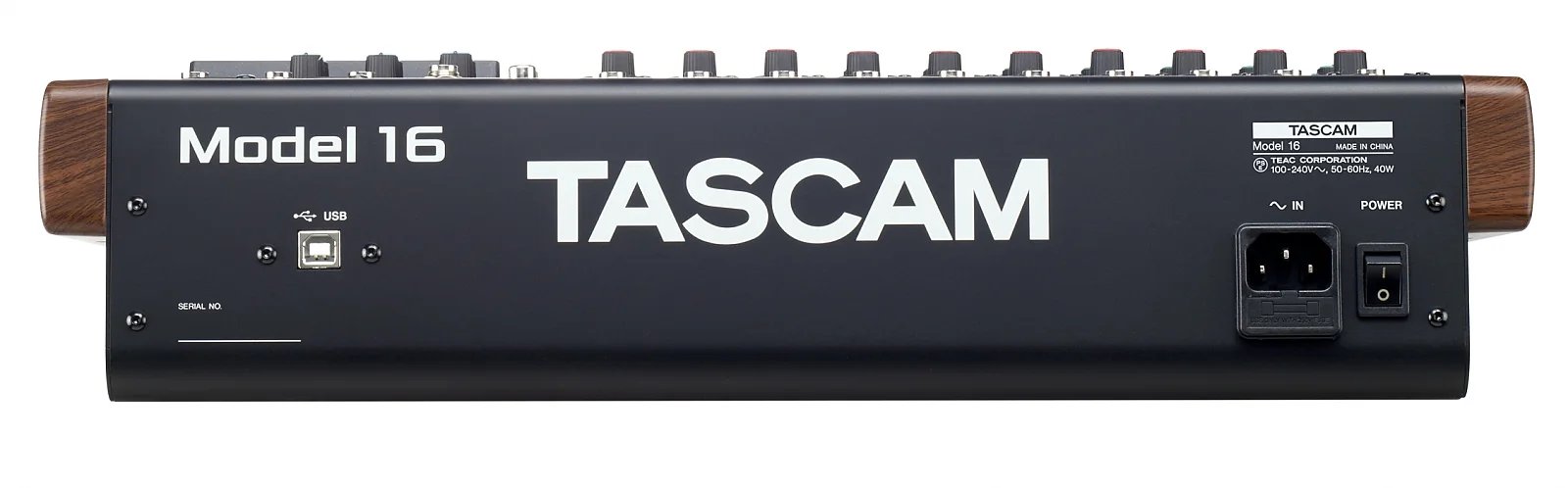

Konektivitas

• 10 × XLR Mic Input
• 12 × Balanced Line Input
• 2 × Hi-Z Instrument Input
• Bluetooth Audio Input
• USB Type-B Audio Interface
• MIDI In / MIDI Out
• Main XLR Output
• Sub Output
• Control Room Output
• Monitor Output
• Effects Send
• Headphone Output
• SD Card Slot

Kelengkapan

• 1 Unit Tascam Model 16
• AC Power Cable
• Owner Manual
• Warranty Card
