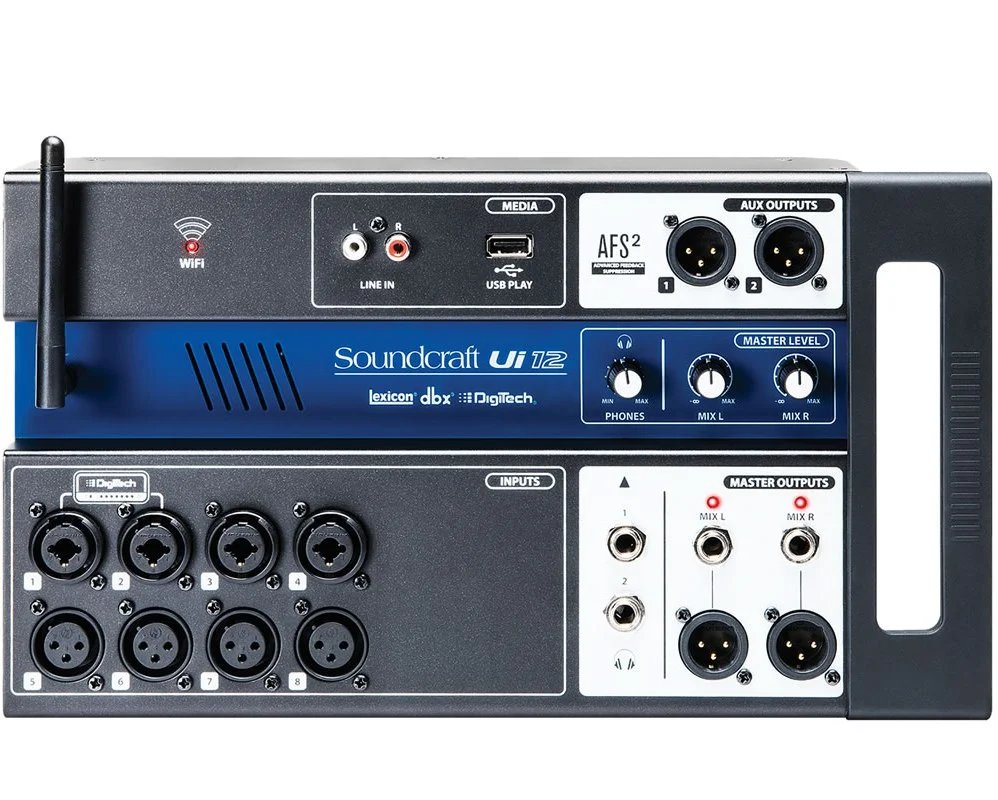

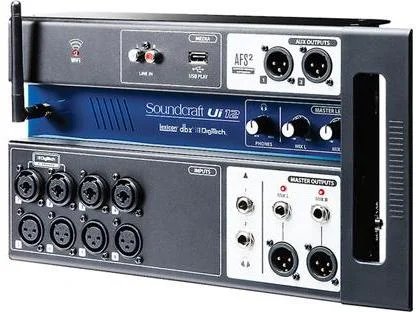

Soundcraft Ui12 Digital Mixer with Wi-Fi Router

Soundcraft Ui12 Digital Mixer with Wi-Fi Router

Spesifikasi Utama

Type: Digital Mixer with Wireless Control
Model: Ui12
Brand: Soundcraft
Input Channels: 12 Channel

Input Configuration:

• 4 × XLR/TRS Combo Mic/Line Input
• 4 × XLR Mic Input
• 2 × Hi-Z Instrument Input
• 1 × Stereo RCA Line Input

Mic Preamp: Remote Controlled Mic Preamp
Control: Web Browser Control (iOS / Android / Windows / Mac / Linux)
Wi-Fi: Built-in Wi-Fi Router
Network: Ethernet LAN Control
USB: 2-Channel USB Media Playback

Effects: Lexicon Digital FX

• Reverb
• Delay
• Chorus

Processing:

• 4-Band Parametric EQ
• High Pass Filter
• Compressor
• De-Esser
• Noise Gate
• dbx AFS2 Feedback Suppression

Output:

• 2 × Balanced XLR AUX Output
• Stereo Main Output XLR
• Stereo Main Output TRS

Dimensions: ±320 × 177 × 85 mm
Weight: ±2.29 kg

Fitur

• Digital mixer compact tanpa fader dengan kontrol wireless.
• Built-in Wi-Fi untuk mixing melalui:
  • Smartphone
  • Tablet
  • Laptop
  • PC/Mac
• Mendukung hingga 10 perangkat kontrol secara bersamaan.
• Processing profesional Harman:
  • dbx Dynamics & Feedback Suppression
  • DigiTech Processing
  • Lexicon Effects
• Remote control:
  • Gain mic
  • Phantom power
  • EQ
  • Compressor
  • Effects
• 31-band graphic EQ pada output.
• Real Time Analyzer (RTA) untuk monitoring frekuensi.
• Snapshot & Show recall untuk menyimpan setting.
• Subgroup, Mute Group, dan View Group untuk workflow live.
• USB media player untuk playback audio.

Performa

Soundcraft Ui12 memberikan solusi mixing digital profesional dalam format compact. Kombinasi 12 input channel, wireless control, Lexicon FX, dbx processing, dan routing fleksibel membuatnya cocok untuk sistem live modern yang membutuhkan setup cepat tanpa console besar.

Konektivitas

• 4 × XLR/TRS Combo Mic/Line Input
• 4 × XLR Mic Input
• 2 × Hi-Z Instrument Input
• 1 × Stereo RCA Input
• Stereo XLR Main Output
• Stereo TRS Main Output
• 2 × XLR AUX Output
• 2 × Headphone Output

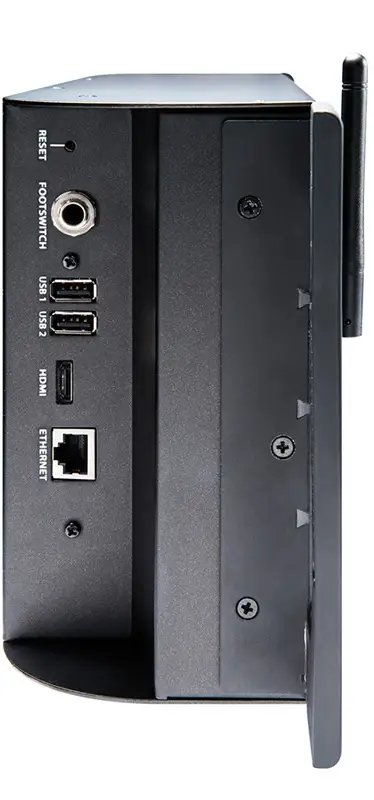

• Ethernet LAN Port
• Built-in Wi-Fi Router
• USB Media Playback

Kelengkapan

• 1 Unit Soundcraft Ui12 Digital Mixer
• Wi-Fi Antenna
• Power Supply
• User Manual
