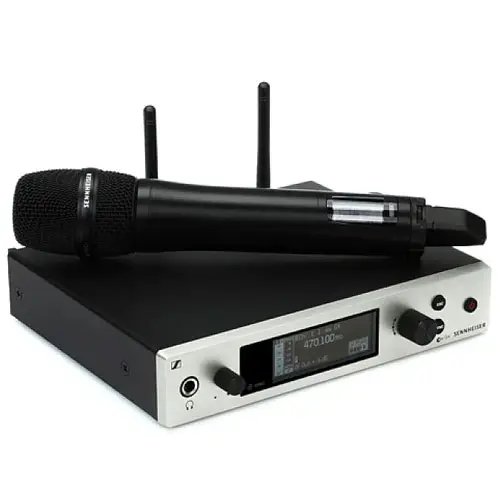

Sennheiser EW 500 G4 845 Wireless Handheld Microphone System

Sennheiser EW 500 G4 845 Wireless Handheld Microphone System

Spesifikasi Utama

• Tipe: Wireless Handheld Microphone System
• Seri: Evolution Wireless G4 500
• Konfigurasi: 1 Handheld Transmitter (SKM 500 G4) + 1 Rack Receiver (EM 300-500 G4)
• Sistem transmisi: Analog UHF Wideband FM
• Sinkronisasi transmitter dan receiver melalui Infrared (IR)
• Switching bandwidth: Hingga 88 MHz
• Mendukung hingga 32 kanal kompatibel secara bersamaan (tergantung kondisi frekuensi setempat).

Handheld Transmitter (SKM 500 G4)

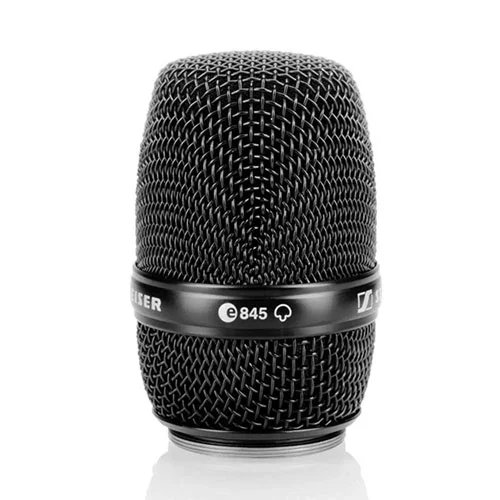

• Kapsul mikrofon: MMD 845 Dynamic
• Polar pattern: Supercardioid
• Jenis mikrofon: Dynamic
• Frekuensi respons: 80 Hz – 18 kHz
• Rasio signal-to-noise (S/N): ≥ 115 dBA
• Catu daya: 2 × AA atau BA 2015 rechargeable battery pack
• Daya tahan baterai: Hingga 8 jam
• Dimensi: Ø 50 × 265 mm
• Berat: ±450 gram.

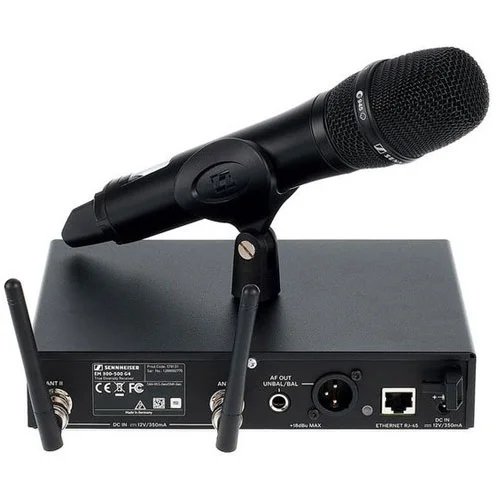

Receiver (EM 300-500 G4)

• Tipe: Half-rack True Diversity Receiver
• Layar: OLED backlit
• Metode penerimaan: True Diversity
• Sensitivitas RF: < 2,5 µV
• Output audio:
  • XLR Balanced
  • 6,35 mm (1/4″) Jack Unbalanced
• Ethernet untuk Wireless Systems Manager (WSM)
• Squelch dapat diatur
• Catu daya: 12 V DC
• Dimensi: 202 × 212 × 43 mm
• Berat: ±980 gram.
