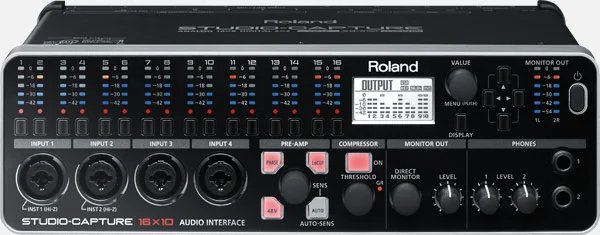

Roland UA-1610 Studio-Capture USB Audio Interface

Overview

Roland UA-1610 Studio-Capture Adalah USB Audio Interface Flagship Dengan 16-In/10-Out, 12 VS-PREAMP Berkualitas Tinggi, Resolusi Hingga 24-Bit/192 kHz, MIDI I/O, Dan DSP Monitoring Untuk Recording Band, Drum Recording, Studio Production, Dan Professional Home Studio.

Audio Interface

• 16-In / 10-Out USB Audio Interface
• Up To 24-Bit / 192 kHz Resolution
• USB 2.0 High-Speed Connectivity
• VS Streaming Low-Latency Technology
• Windows & Mac Compatible
• Expandable With Dual Studio-Capture Units

Microphone Preamps

• 12 VS-PREAMP Microphone Preamps
• Low-Noise Professional Design
• High Headroom Performance
• Transparent Sound Quality
• Independent Phantom Power Per Channel
• Digitally Controlled Mic Preamps

Audio Performance

• Resolution Up To 24-Bit / 192 kHz
• Input Dynamic Range 105 dB
• Output Dynamic Range 114 dB
• THD+N: -90 dB
• Frequency Response 20 Hz – 90 kHz
• High Resolution AD/DA Conversion

Inputs

• 12 × XLR/TRS Combo Mic/Line Inputs
• 4 × 1/4″ TRS Line Inputs
• 2 × Hi-Z Instrument Inputs (Ch 1–2)
• RCA Coaxial S/PDIF Input
• MIDI Input Port
• Total 16 Input Channels

Outputs

• 8 × 1/4″ TRS Line Outputs
• 2 × XLR Monitor Outputs
• 2 × 1/4″ Headphone Outputs
• RCA Coaxial S/PDIF Output
• MIDI Output Port
• Total 10 Output Channels

DSP & Monitoring Features

• Auto-Sens Automatic Gain Setting
• Compressor On Every Input Channel
• Low-Cut Filter Per Channel
• Phase Invert Per Channel
• Four Independent Direct Mixers
• Zero-Latency Monitoring
• DSP Reverb For Monitoring
• Dedicated Monitor Control Section

Metering & Display

• Backlit LCD Display
• Multi-Channel LED Level Meters
• Input & Output Metering
• Dedicated Channel Select Buttons
• Real-Time Monitoring Information

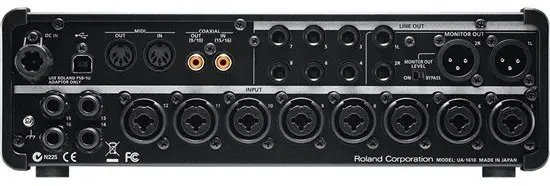

Connectivity

• USB Type-B Port
• 12 × XLR/TRS Combo Inputs
• 4 × TRS Line Inputs
• 8 × TRS Outputs
• 2 × XLR Monitor Outputs
• 2 × Headphone Outputs
• MIDI IN / OUT
• S/PDIF IN / OUT

Controls

• Auto-Sens Button
• Input Gain Controls
• Direct Monitor Control
• Monitor Output Level Knob
• Headphone Volume Controls
• Channel Select Controls
• Phantom Power Controls

Features

• Professional Studio Recording Ready
• Full Band Recording Ready
• Drum Recording Ready
• Multi-Microphone Recording Ready
• Podcast & Broadcast Production Ready
• Rackmount Compatible
• Low-Latency Monitoring System
• Expandable Recording System
