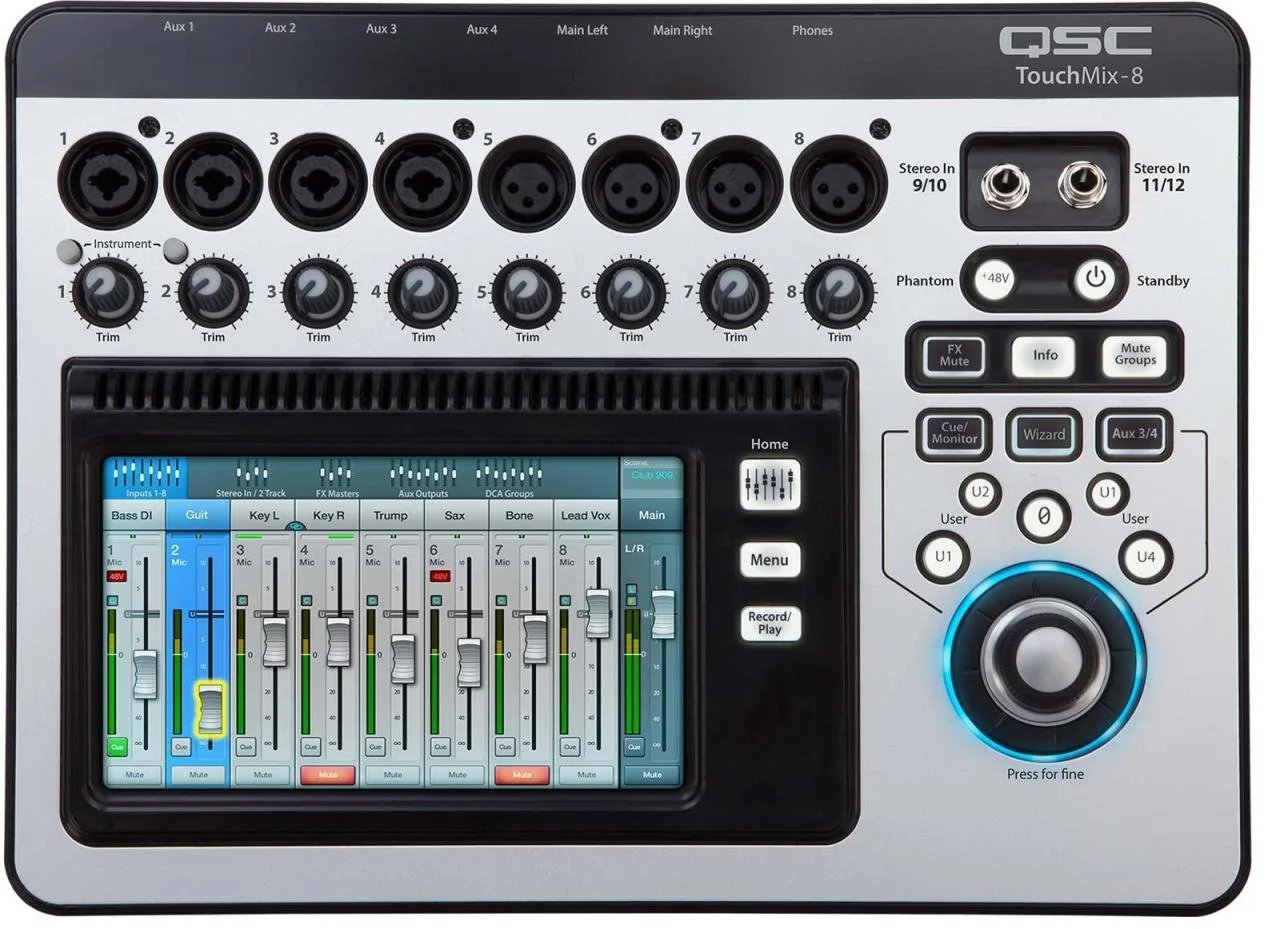

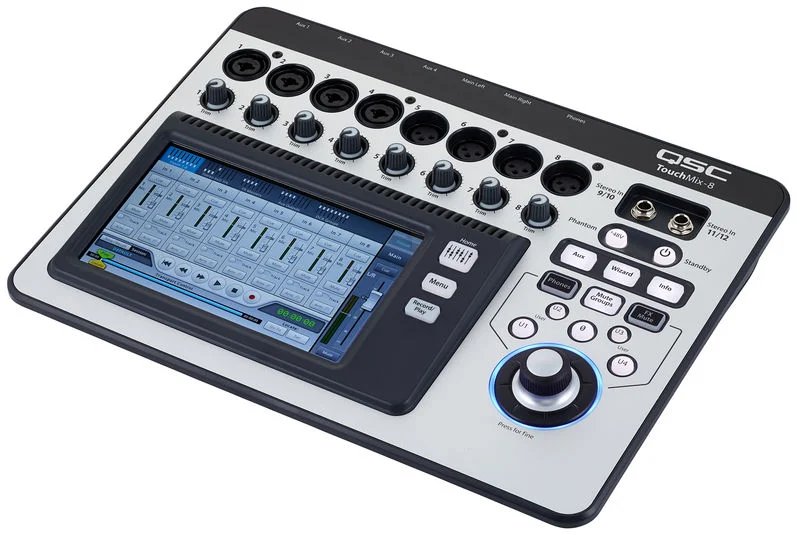

QSC TouchMix 8 8-Channel Compact Digital Mixer

Spesifikasi QSC TouchMix-8 Compact Digital Mixer

• Tipe: Compact Digital Mixer
• Total Mixing Channels: 14 channel
• Input Mic/Line: 8 input
• Input: 4 × XLR/TRS Combo + 4 × XLR
• Stereo Input: 2 × stereo TRS
• Main Output: 2 × XLR
• Aux Output: 4 × XLR
• Stereo IEM Output: 1 × TRS
• Cue/Monitor Output: 1 × TRS
• Display: 6,1 × 3,5 inci color TFT touchscreen
• Phantom Power: 48 V, dapat diaktifkan per channel
• Channel Processing: 4-band Parametric EQ, HPF/LPF, Gate & Compressor
• Output Processing: Graphic EQ, Parametric EQ, Notch Filter, Limiter/Compressor & Delay
• Effects: 4 professional FX engines + Pitch Correct
• DCA Groups: 8
• Mute Groups: 8
• Recording: Multitrack hingga 14 × 14 melalui USB hard drive
• Sampling Rate: 44,1 kHz / 48 kHz
• Internal Processing: 32-bit Floating Point
• Frequency Response: 20 Hz – 20 kHz
• Dynamic Range: 105 dB
• Wi-Fi: USB Wi-Fi adapter untuk kontrol wireless
• Kontrol Eksternal: TouchMix Control melalui tablet
• Dimensi: 333 × 245 × 56 mm
• Berat: ±1,95 kg
• Power Supply: 100–240 V AC, 50–60 Hz
