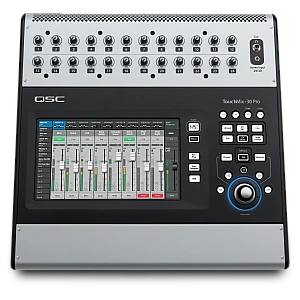

QSC TouchMix 30 Pro 30-Channel Compact Digital Mixer

QSC TouchMix-30 Pro 30-Channel Compact Digital Mixer

Spesifikasi Utama

Type: Compact Digital Mixer
Model: TouchMix-30 Pro
Brand: QSC
Input Channels: 32 Channels (24 Mic/Line + 6 Line + Stereo USB)
Mic Preamps: 24 Class-A Mic Preamps
Processing: 32-bit Floating Point DSP
Sample Rate: 44.1 kHz / 48 kHz
Display: 10″ Color Capacitive Touchscreen
EQ Input: 4-Band Parametric EQ + HPF/LPF
Dynamics: Gate & Compressor per Channel
Effects: Reverb, Delay, Chorus, Pitch Shift, Pitch Correct
Recording: 32-Track Direct-to-Hard Drive Recording
USB Audio Interface: 32-Channel DAW Interface
Outputs: 16 Outputs
Dimensions: 429 × 460 × 190 mm
Weight: ±7.9 kg

Fitur

• Digital mixer profesional 32-channel.
• 24 mic/line input dengan preamp Class-A.
• Layar sentuh 10 inci dengan kontrol intuitif.
• Wireless control melalui iOS/Android.
• 32-track recording langsung ke USB drive.
• 32-channel DAW interface.
• Automatic Microphone Mixer.
• Anti-Feedback Wizard dan Room Tuning Wizard.
• Built-in Effects berkualitas tinggi.
• DCA Group, Mute Group, dan Scene Memory.
• Real Time Analyzer (RTA) untuk tuning sistem audio.

Performa

QSC TouchMix-30 Pro memberikan kualitas audio profesional dengan pemrosesan DSP 32-bit floating point, noise rendah, serta fitur mixing lengkap tanpa membutuhkan perangkat eksternal tambahan. Kombinasi preamp Class-A, multitrack recording, dan sistem tuning otomatis membuatnya cocok untuk produksi live berskala besar hingga instalasi audio profesional.

Konektivitas

• 20 × XLR Mic Input
• 4 × XLR/TRS Combo Input
• 6 × TRS Line Input
• Stereo USB Playback
• Talkback Input XLR
• 2 × Main XLR Output
• 14 × Aux Output XLR
• 2 × Monitor Output
• 2 × Cue Output
• USB DAW Interface
• USB Recording Port
• Ethernet Network Port
• Headphone Output

Kelengkapan

• 1 Unit QSC TouchMix-30 Pro Digital Mixer
• Power Cable
• User Manual
