Midas Heritage HD96 Air Digital Mixer

Midas Heritage HD96 AIR Digital Mixer

Spesifikasi Utama

Type: Professional Digital Mixing Console
Model: Heritage HD96-AIR
Brand: Midas
Processing Channels: 144 Input Channels
Mix Bus: 123 Mix Buses
Audio Engine: Graviton Mk2 FPGA Processing Engine
Sample Rate: 96 kHz
Processing: 64-bit Floating Point Summing Engine
Touchscreen: 21″ Full HD Multi-Touch Display
Motorized Fader: 3 × 100 mm Motorized Fader
Mic Preamp: Midas Heritage Preamp Technology
Analog I/O: 8 × XLR Analog/AES3 Input + 8 × XLR Analog/AES3 Output
AES50 Network: 4 × AES50 Ports
Digital Snake: Dual Optical / Copper Snake Support
USB: Multiple USB Ports
Expansion: 2 × Expansion Slot
Network: Ethernet Control + Wi-Fi/Bluetooth Support
Dimensions: ±805 × 465 × 805 mm
Weight: ±16.7 kg

Fitur

• 144 input channel processing untuk kebutuhan produksi audio besar.
• 123 mix bus dengan routing fleksibel.
• Graviton Mk2 processing engine untuk performa tinggi.
• 21″ high brightness touchscreen dengan multi-gesture control.
• Heritage-D audio processing dengan karakter suara Midas.
• 64-bit floating point summing engine.
• 24 VCA Group dan 24 POPulation Group.
• Internal FX processor dengan koleksi efek profesional.
• AES50 networking untuk integrasi stage box digital.
• Support Midas digital I/O dan sistem network audio.
• Dual redundant power supply untuk kebutuhan touring profesional.

Performa

Midas Heritage HD96-AIR memberikan kemampuan mixing kelas flagship dengan jumlah channel besar, processing real-time beresolusi tinggi, dan workflow modern melalui layar touchscreen besar. Dengan kombinasi Heritage Preamp, routing luas, dan konektivitas AES50, console ini mampu menangani produksi kompleks seperti konser internasional, festival, broadcast, dan sistem audio permanen berskala besar.

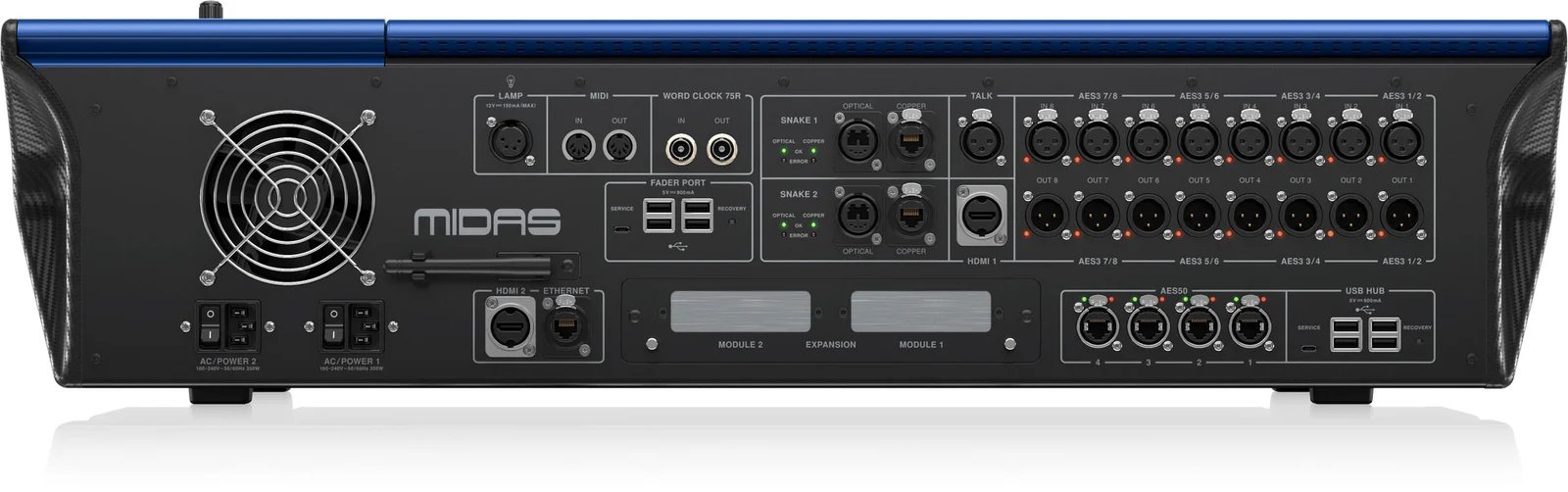

Konektivitas

• 8 × XLR Analog Mic/Line Input
• 8 × XLR Analog Output
• AES3 Digital I/O
• 4 × AES50 Network Port
• Optical Digital Snake Connection
• Copper Digital Snake Connection
• Ethernet Control
• USB 3.0 Port
• MIDI In/Out
• Word Clock BNC
• HDMI Monitor Output
• Headphone Output

Kelengkapan

• 1 Unit Midas Heritage HD96-AIR Digital Mixer
• Power Cable
• Network Accessories
• User Manual
• Software / Remote Control Support
