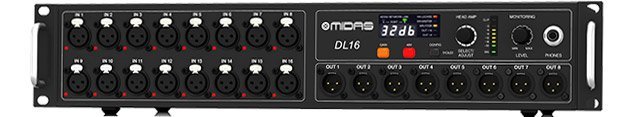

MIDAS DL16 Digital I/O Stage Box

MIDAS DL16 Digital I/O Stage Box

Spesifikasi Utama

Type: Digital I/O Stage Box
Model: DL16
Brand: MIDAS
Mic Inputs: 16 × MIDAS PRO Mic Preamps
Line Outputs: 8 × Balanced XLR Output
Network: Dual AES50 SuperMAC
ULTRANET: 1 Port
ADAT: 2 × Optical Output (16 Channel)
MIDI: MIDI In/Out
Headphone Output: 1 × 1/4″ TRS
USB: USB Type-B (Firmware Update)
Phantom Power: +48V per Channel
Sample Rate: 44.1 / 48 kHz
Latency: ±1.1 ms
Dimensions: 2U Rackmount
Weight: ±4.8 kg

Fitur

• 16 MIDAS PRO Mic Preamps
• 8 Balanced XLR Outputs
• Dual AES50 SuperMAC Networking
• ULTRANET Personal Monitoring
• Dual ADAT 16-Channel Output
• Remote Gain & Phantom Control
• Headphone Monitoring
• MIDI In/Out
• USB Firmware Update
• 2U Rackmount Design

Kelengkapan

• 1 Unit MIDAS DL16
• Power Cable
• Rack Mount Kit
• User Manual
