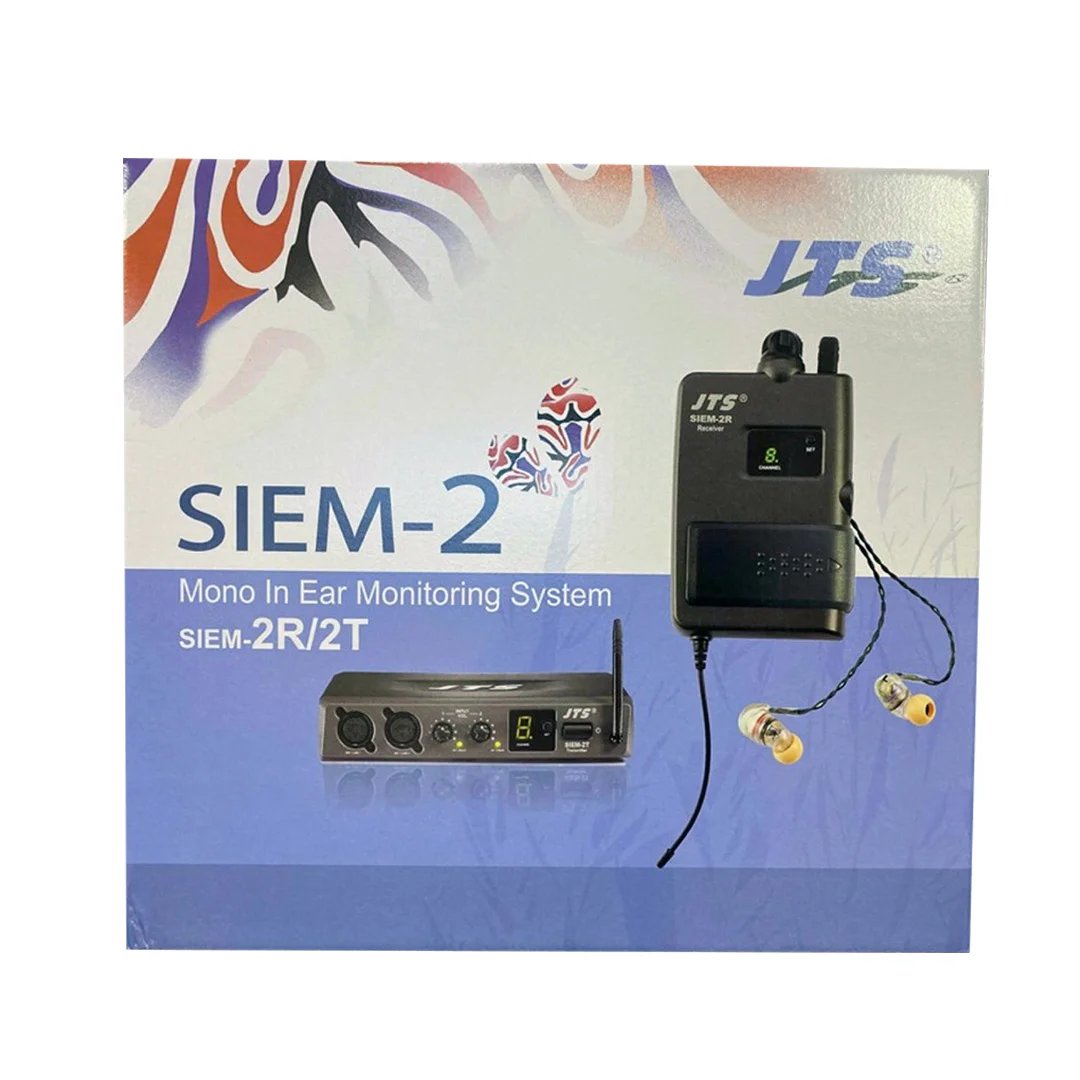

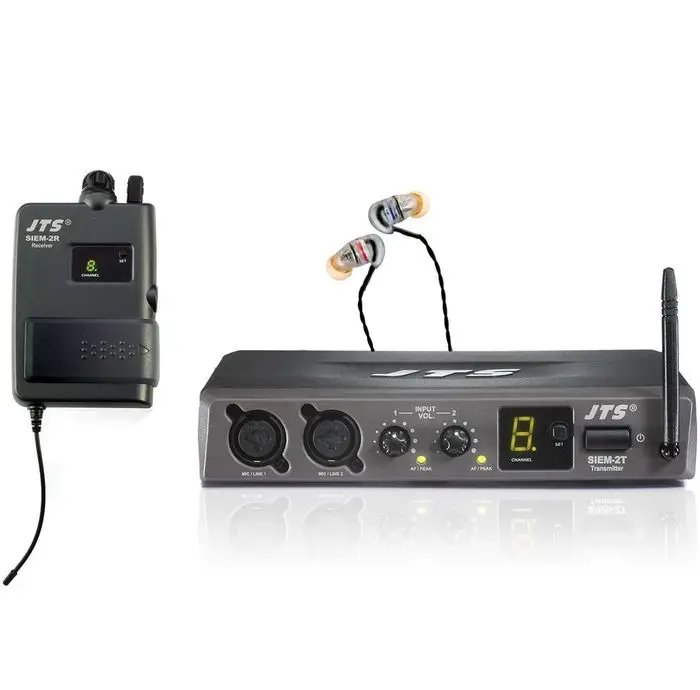

JTS SIEM 2T R IE 1 Ear Monitoring System

JTS SIEM 2T R IE 1 Ear Monitoring System

Features

• Ambient microphone socket on receiver
• 60 metres of operation distance
• Excellent signal to noise ratio
• Lightweight ergonomic design
• Selection of silicon sleeves provide best fit and sound isolation
• Exceptional value for money
• Hearing protection limiter

Delivery Includes

• 1 SIEM-2T transmitter
• 1 SIEM-2R receiver
• 1 IE-1 earphones

Technical Data

• SIEM-2T transmitter
• Carrier Frequency Range 863-865 MHz or 606.5-630MHz
• RF Output Power 10 mW
• Nominal Frequency Deviation (modulation) ±40KHz
• Audio Input Impedance 20kΩ
• Nominal Input Level    -20 dBV
• Maximal Input Level    0 dBV
• LED Display    AF Level, Channel
• Audio Input Connector 2 x Balanced XLR
• Loop Out Connector 2 x Ø6.3mm Balanced Loop Out Socket
• Operation Voltage 12-18 VDC, 600 mA
• SIEM-2R receiver
• Frequency Preparation PLL Synthesized Control
• Carrier Frequency Range 863-865 MHz or 606.5-630MHz
• LED Display    Channel
• Controls Power On/Off,
• Channel selection,
• Volume control
• Audio Frequency Response 40~18,000 Hz
• Output connector 3.5mm Dummy stereo Jack
• Battery life 14 hours typical
• Battery 2 AA batteries
• IE-1 earphones
• Frequency Response 20~20,000 Hz
• Transducer Type Dynamic
• Impedance 16Ω
• Sensitivity (at 1000Hz) 114 dB/mW
• Distortion Less than 0.3%
• Cord Length 148cm with Ø3.5 stereo plug
• Weight 6g (cable excluded)
