JTS E-7TBD/CM-501 UHF Bodypack Wireless System

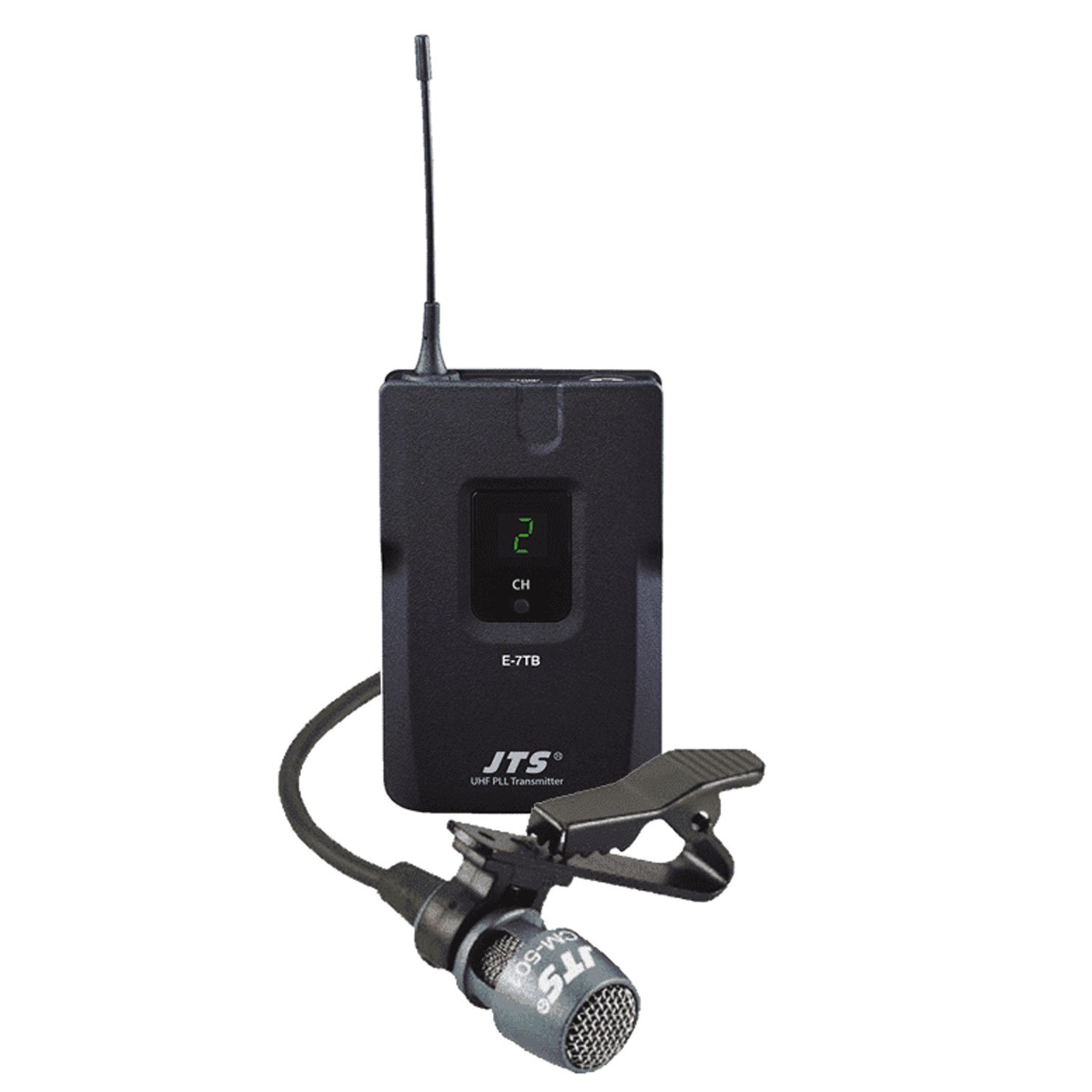

The E-7 E-7TBD+CM-501 bundles our new E-7 Receiver with the excellent E-7TBD body pack transmitter together with our legendary CM-501 Lavalier microphone. The LED displays offer worry free tuning. The E-7R wireless microphone system is of latest wireless circuit design. It provides 16 selectable channels. Stable RF link and good audio performance are assured. 7 segments display makes operation easy. The wireless microphone system is ideal for the budget conscious consumer.

FEATURES:

1. 16 Selectable channels
2. PLL synthesized control
3. Advanced circuitry ensures stable signal transmission
4. Noise mute and Tone-key squelch
5. Extended dynamic range and smooth frequency response
6. Internal antenna design

SPECIFICATIONS:
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: 518~512 MHz
S/N Ratio : >100dB
T.H.D.: <0.6%@1KHz
Display Contents: Channel, RF/AF Status
Controls: Power On/Off, Channel Selecting, Audio Level
Audio Output Level[tab] -15dB(br) AF Output Impedance[tab]600Ω
Squelch: Pilot Tone & Noise Mute
Operation Voltage: 12V 150mA (E-7R) / 12V 250mA (E-7Du)
Output Connector: 1 Ø6.3mm balanced phone jack
Dimension (mm): 210mm(W)* 40mm(H)* 170mm(D)
Frequency Preparation: PLL Synthesized Control
Stability: Frequency <±10KHz
Deviation:: ±48KHz (Peak)
Display Contents: Channel, Battery Status, Power On/Off, Mute
Controls: Power On/Off, Channel, Mute
Spurious Emissions: <-50 dBC
Audio Frequency Response: 50Hz~18KHz
Battery: UM3, AA Alkaline x2
