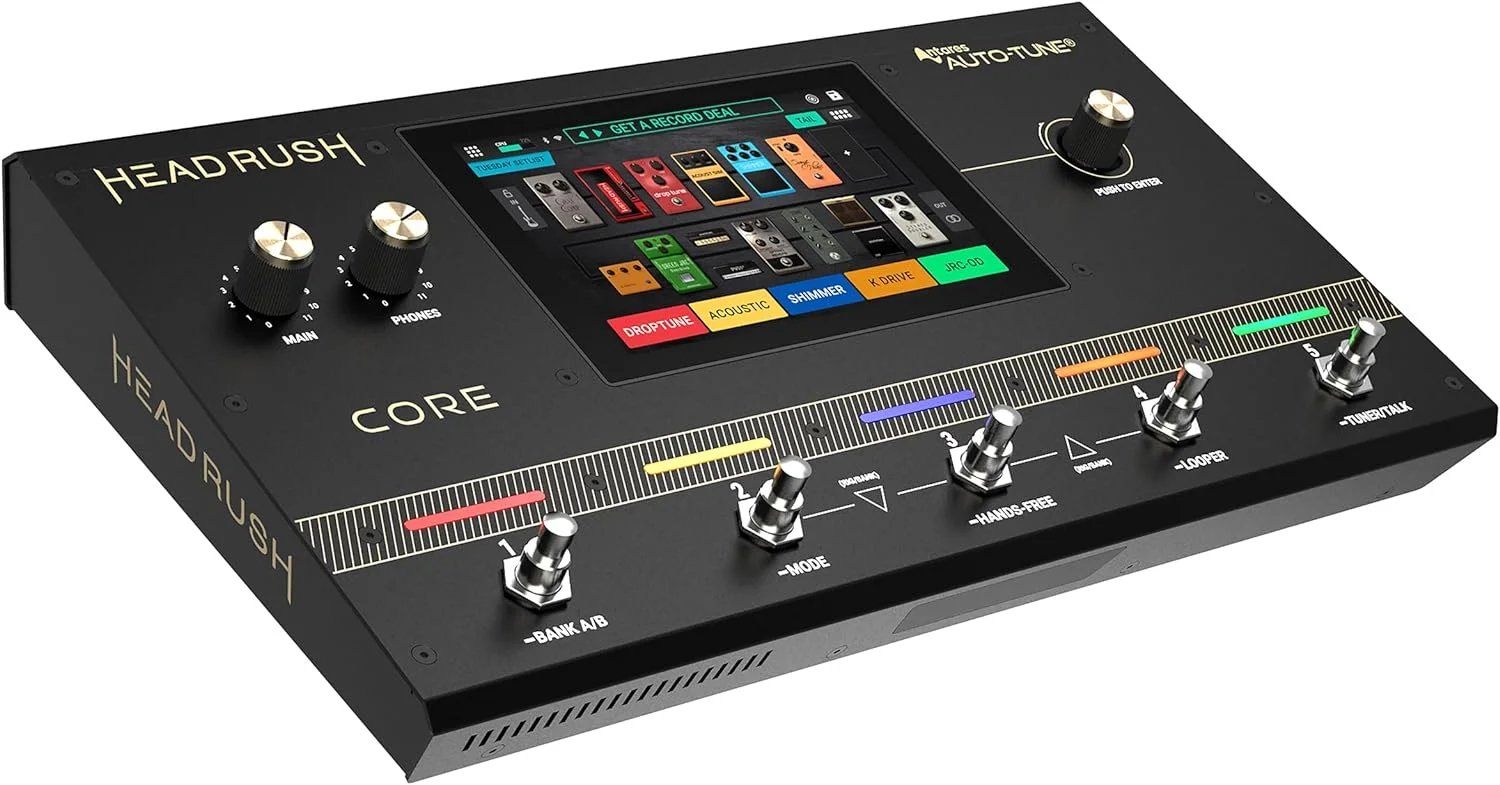

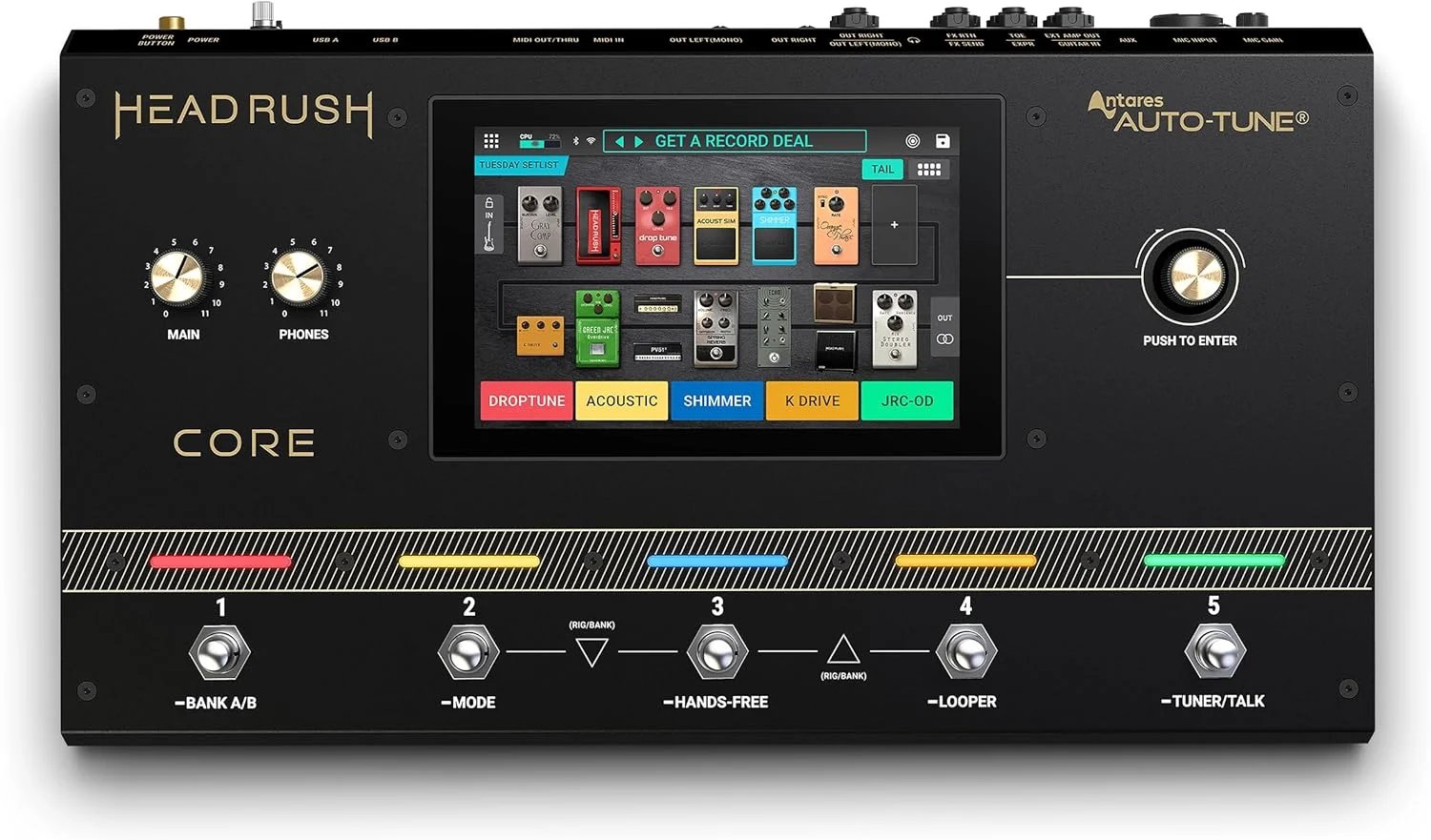

Headrush Core Guitar Multi Effec, Amp Modeler, Vocal Processor

Footswitches

• 5 Footswitches with Coloured LED Indicators

Controls

• Volume Knob
• Headphone Volume Knob
• 360 Degrees Navigation and Data Encoder

Display

• 7-Inch High-Resolution Touchscreen Interface

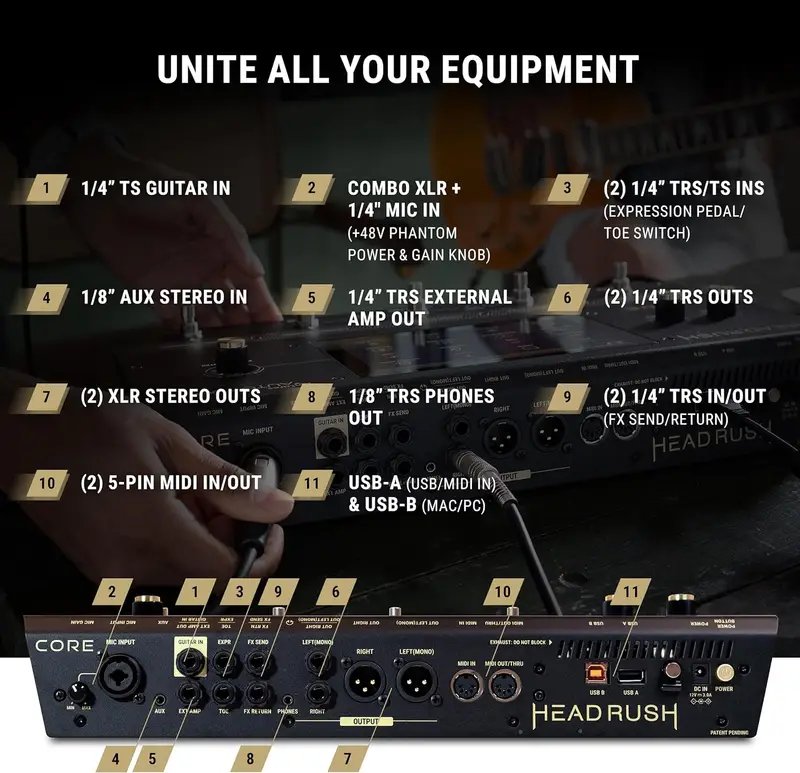

Connections

• 1/4” (6.35 Mm) TS Input (Guitar)
• XLR / 1/4″ (6.35 Mm) Input (Microphone)
• 1/4” (6.35 Mm) TRS Input (Expression Pedal)
• 1/4” (6.35 Mm) TS Input (Expression Pedal Toe Switch)
• 1/8” (3.5 Mm) Stereo Input (Auxiliary Device)
• 1/4” (6.35 Mm) TRS Output (External Amp Footswitch)
• 1/4” (6.35 Mm) Stereo Pair Outputs
• XLR Stereo Pair Outputs
• 1/8” (3.5 Mm) Stereo Headphone Output
• 1/4” (6.35 Mm) TRS Input (FX Send)
• 1/4” (6.35 Mm) TRS Output (FX Return)
• (1) 5-Pin MIDI Input
• (1) 5-Pin MIDI Output
• USB Type-A Port
• USB Type-B Port

Power

• Connection: DC Power Adapter Input
• Input Voltage: 12V DC, 3A, Centre-Positive

Dimensions Headrush Core Guitar

• Width: 40.84 x Depth: 23.46 X Height: 6.70 cm
• Weight: 3.80 kg (8.37 lbs.)
