FLAMMA FC17 Analog Delay Guitar Effects Pedal

FLAMMA FC17 Analog Delay Guitar Effects Pedal

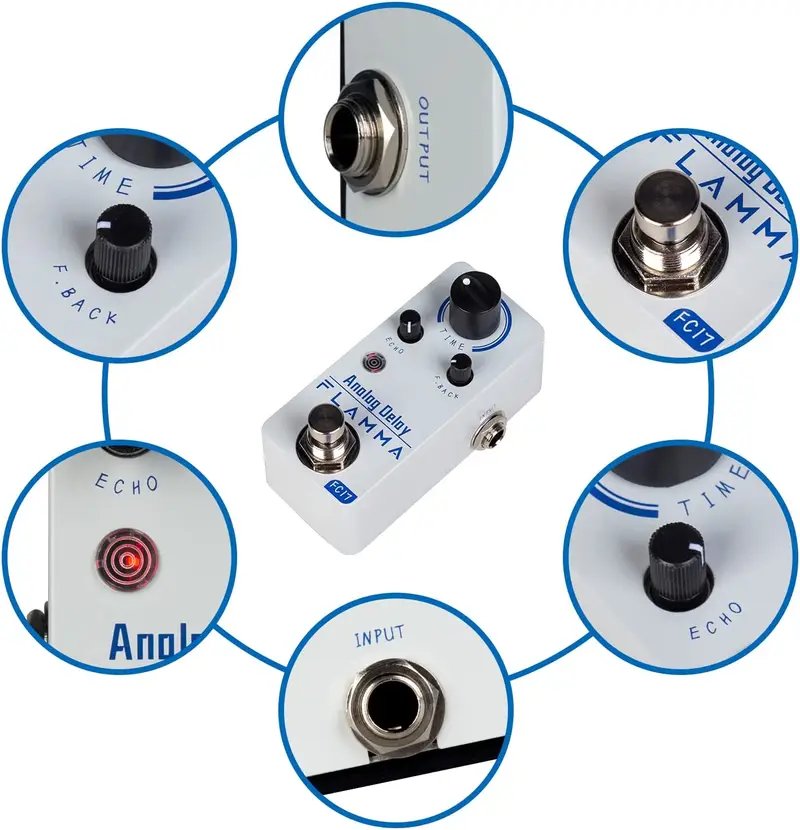

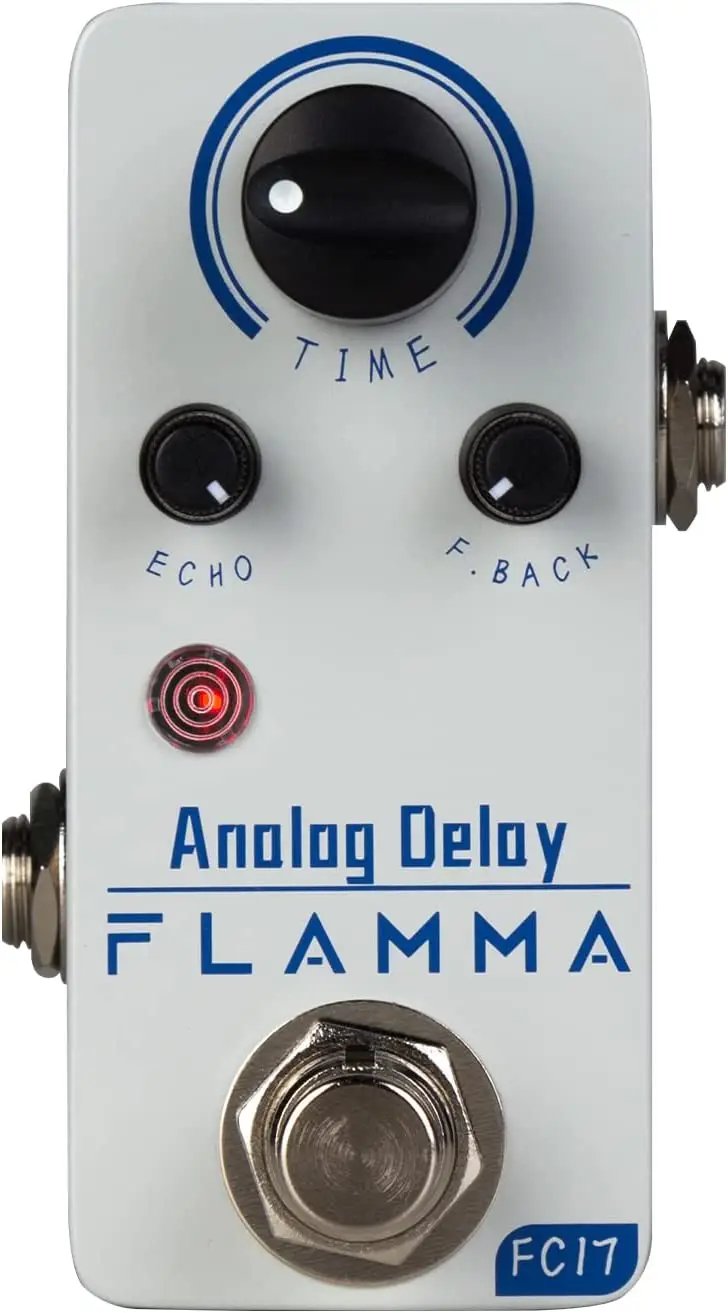

LAYOUT
1. Footswitch: Press to turn on or off the pedal.

2. Output: 1/4” mono audio jack.

3. LED Indicator: Indicates the On or Off status of the pedal.

4. ECHO: Rotate to adjust the volume level of the delay.

5. TIME: Rotate to adjust the delay time.

6. DC IN: For connecting to the power supply.

7. Input: 1/4” mono audio jack.

8. F.BACK: Rotate to adjust the feedback of delay.

• INPUT 1/4” mono audio jack (impedance value: 1M ohms)
• OUTPUT 1/4” mono audio jack (impedance value: 470 ohms)

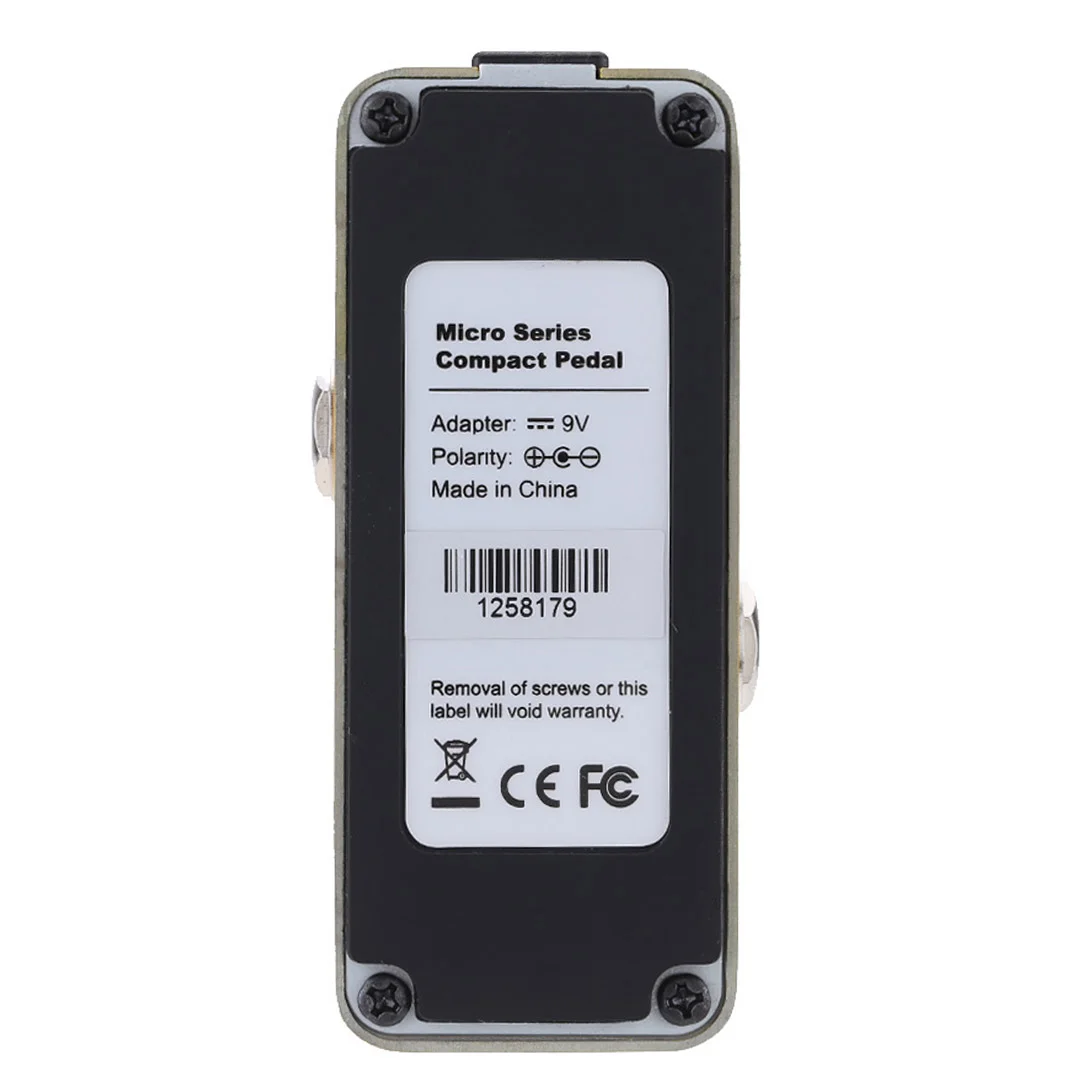

• Power Requirements 9V DC (center negative)
• Current Draw 40 mA
• Dimension 93.5 x 42 x 52 mm
• Weight 160 g

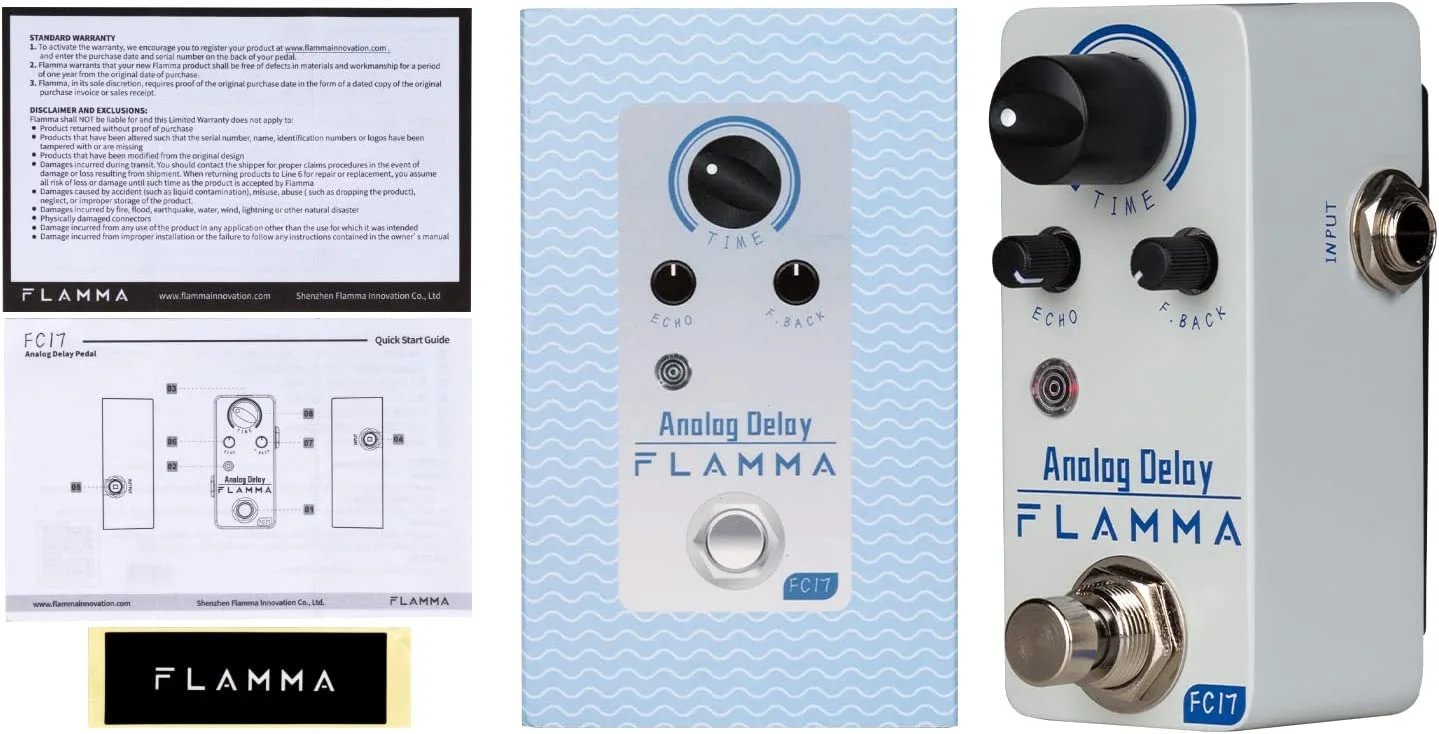

• Accessories Owner’s manual
