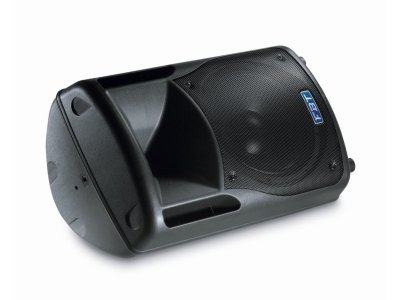

FBT HiMaxx 40A Active Loudspeaker

FBT HiMaxX 40A Active Loudspeaker

Spesifikasi Utama

• Tipe: 12 Inch 2-Way Active Loudspeaker
• Model: HiMaxX 40A
• Brand: FBT
• Configuration: Bi-Amplified Active Bass Reflex Speaker
• Amplifier Power:
  • LF: 1000W RMS Class-D / PWM
  • HF: 250W RMS Class-G
  • Total: 1250W RMS
• LF Driver: 12″ B&C Custom Neodymium Woofer
• Voice Coil LF: 3″
• HF Driver: 1″ B&C Compression Driver
• Voice Coil HF: 1.7″
• Frequency Response: 45 Hz – 20 kHz (-6 dB)
• Maximum SPL: 127 dB Continuous / 133 dB Peak
• Coverage: 90° Horizontal × 60° Vertical
• Crossover Frequency: 1.6 kHz
• Input Impedance: 22 kOhm
• DSP: 3-Band EQ Processing
• Cabinet: Gas-injected Molded Polypropylene
• Rigging: 4 × M10 Fly Points
• Pole Mount: 35 mm Speaker Stand Socket
• Dimensions: ±407 × 675 × 370 mm
• Berat: ±18.7 kg

Kelengkapan

• 1 Unit FBT HiMaxX 40A Active Loudspeaker
• Kabel Power AC
• User Manual
