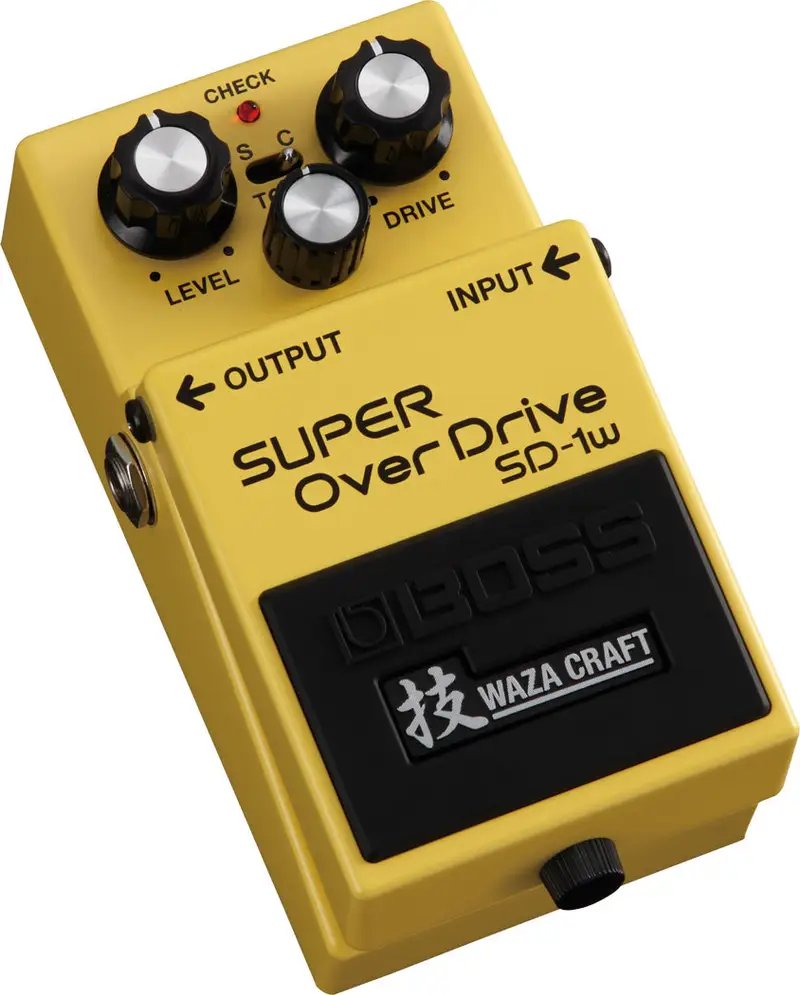

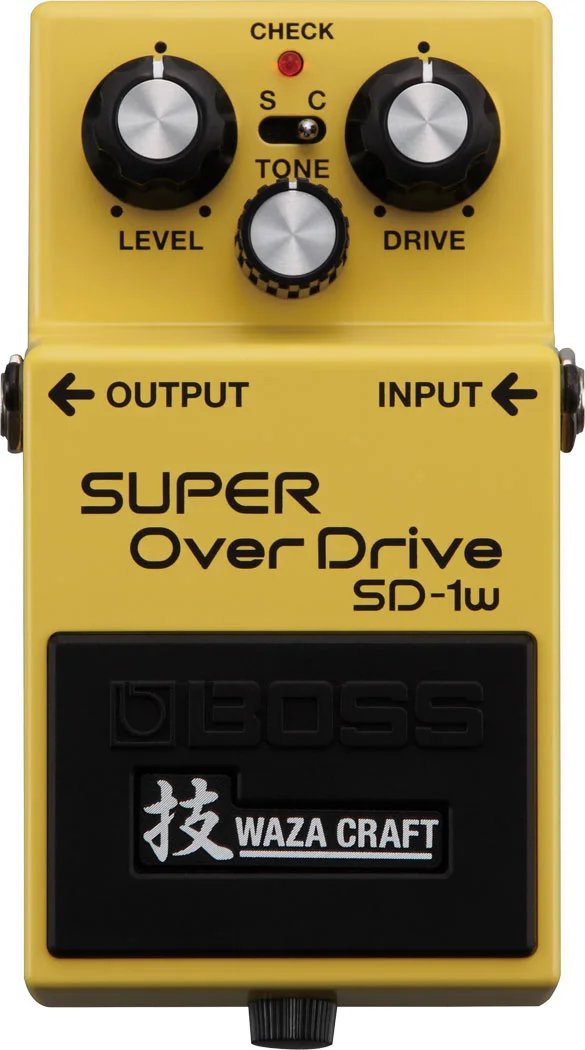

Boss SD 1W Super Overdrive Waza Craft Special Edition

Boss SD 1W Super Overdrive Waza Craft Special Edition

Spesifikasi

• Tipe: Analog Overdrive
• Seri: Waza Craft Special Edition
• Produksi: Made in Japan
• Sirkuit: All-discrete analog amplifier
• Mode:
  • Standard (karakter SD-1 klasik)
  • Custom (gain lebih tinggi, respons lebih lebar, dan headroom lebih besar)
• Bypass: Buffered Bypass
• Kontrol:
  • Level
  • Tone
  • Drive
  • Mode Switch (Standard/Custom)
• Nominal Input Level: -20 dBu
• Input Impedance: 1 MΩ
• Nominal Output Level: -20 dBu
• Output Impedance: 1 kΩ
• Recommended Load Impedance: 10 kΩ atau lebih
• Konektor:
  • Input 1/4″ Mono
  • Output 1/4″ Mono

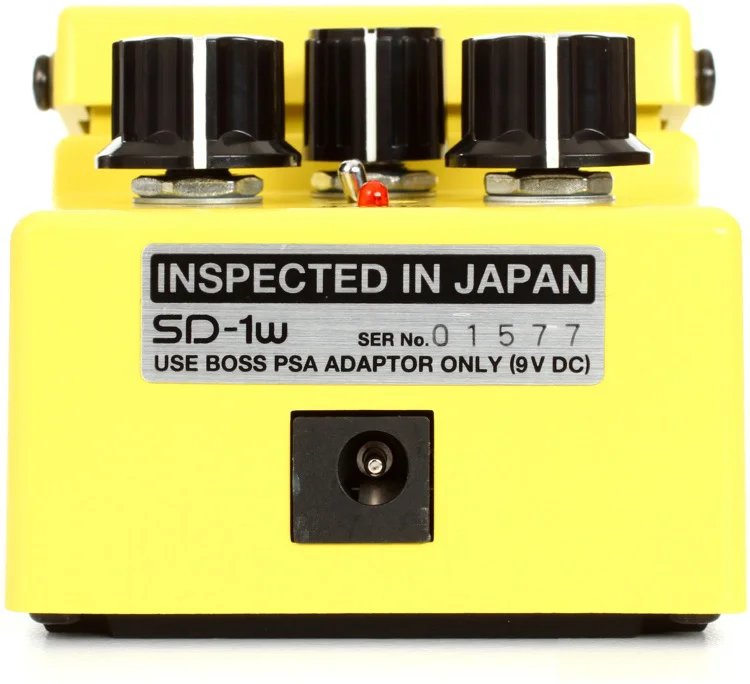

  • DC IN 9V
• Catu Daya:
  • Baterai 9V
  • Adaptor BOSS PSA Series (opsional)
• Konsumsi Arus: 15 mA
• Daya tahan baterai:
  • Carbon-zinc: sekitar 25 jam
  • Alkaline: sekitar 42 jam
• Dimensi:
  • Lebar: 73 mm
  • Kedalaman: 129 mm
  • Tinggi: 59 mm
• Berat: 430 g
