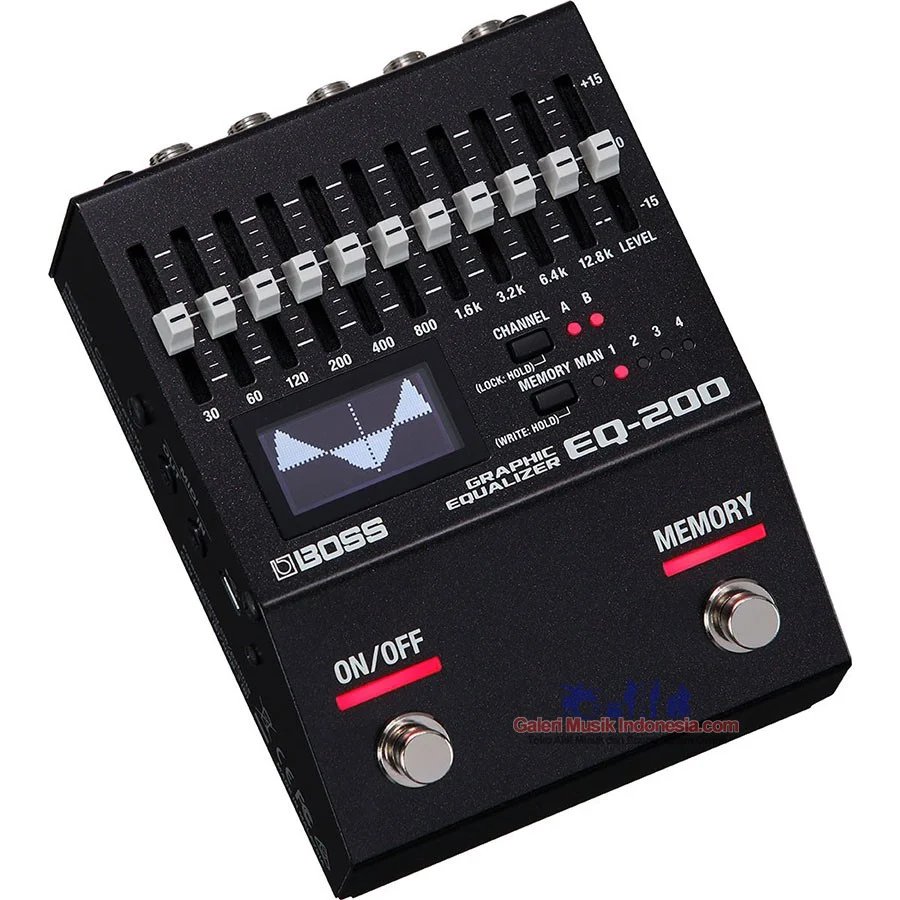

Boss EQ 200 Equalization Effects Pedal

Boss EQ 200 Equalization Effects Pedal

Specifications

• Sampling Frequency: 96 kHz
• AD/DA Conversion: 32 bits
• Processing: 32-bit floating point
• Memory: 4 + Manual
• Nominal Input Level: INPUT A/MONO, B: -10 dBu
• Maximum Input Level: INPUT A/MONO, B: +7 dBu
• Input Impedance: INPUT A/MONO, B: 2 M ohm
• Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
• Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
• Output Impedance: OUTPUT A/MONO, B: 1 k ohms
• Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
• Bypass: Buffered bypass

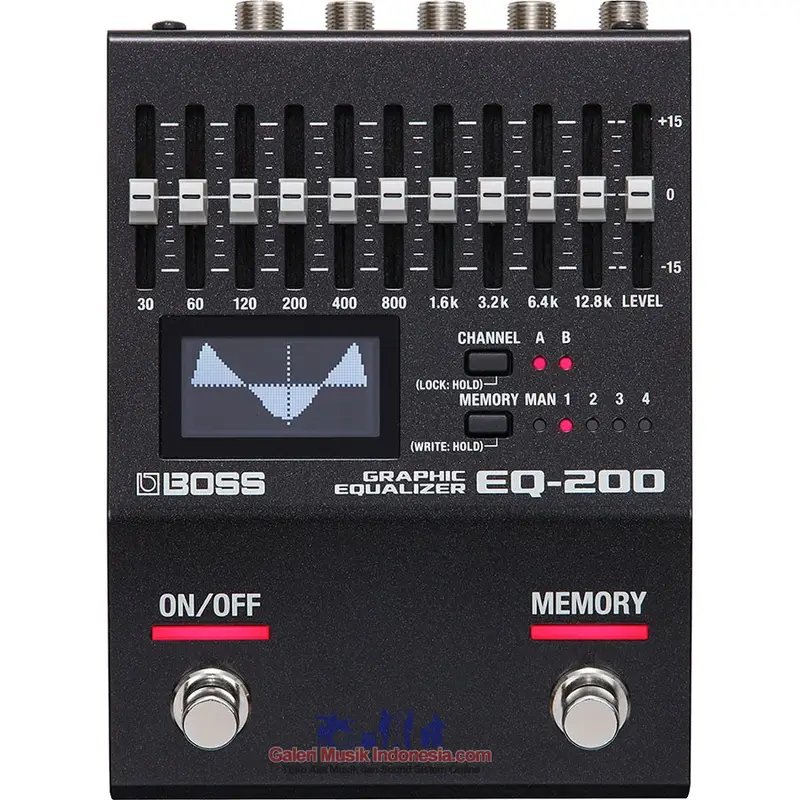

• Controls: ON/OFF switch, MEMORY switch, 30–12.8 k sliders, LEVEL slider, A/B button, MEMORY button
• Display: Graphic LCD (64 x 32 dots, backlit LCD)
• Indicator: A/B indicator, MEMORY (MAN, 1–4) indicators
• Connectors:

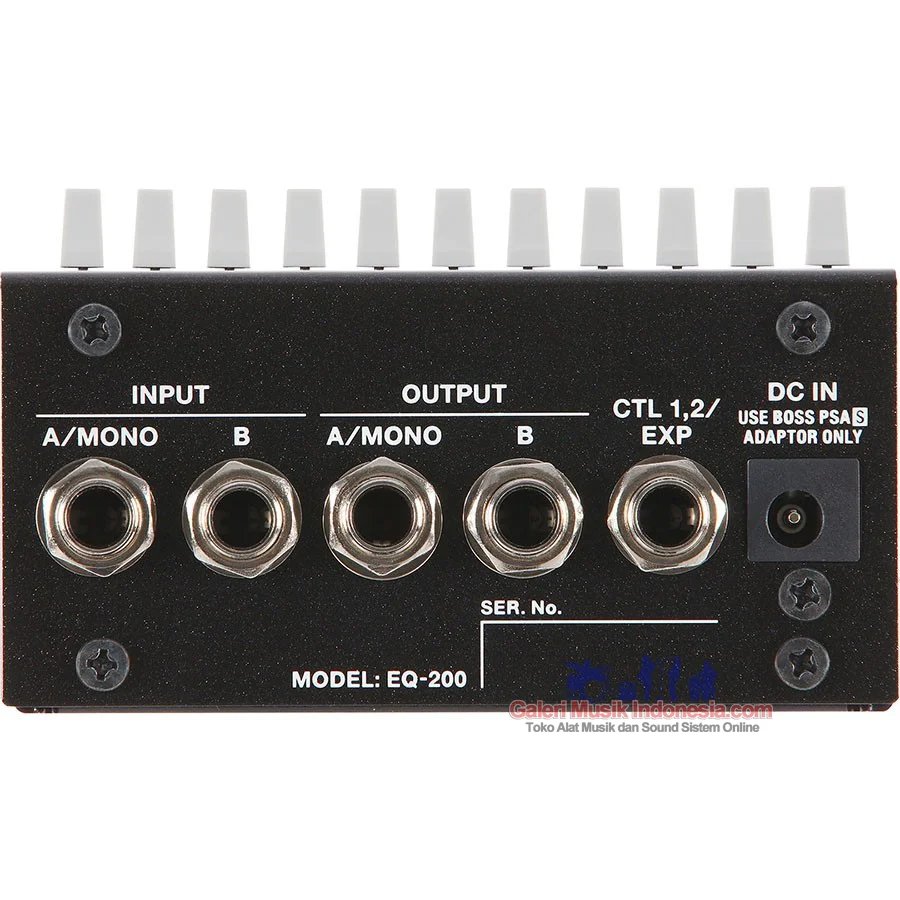

   • INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
   • CTL 1, 2/EXP jack: 1/4-inch TRS phone type

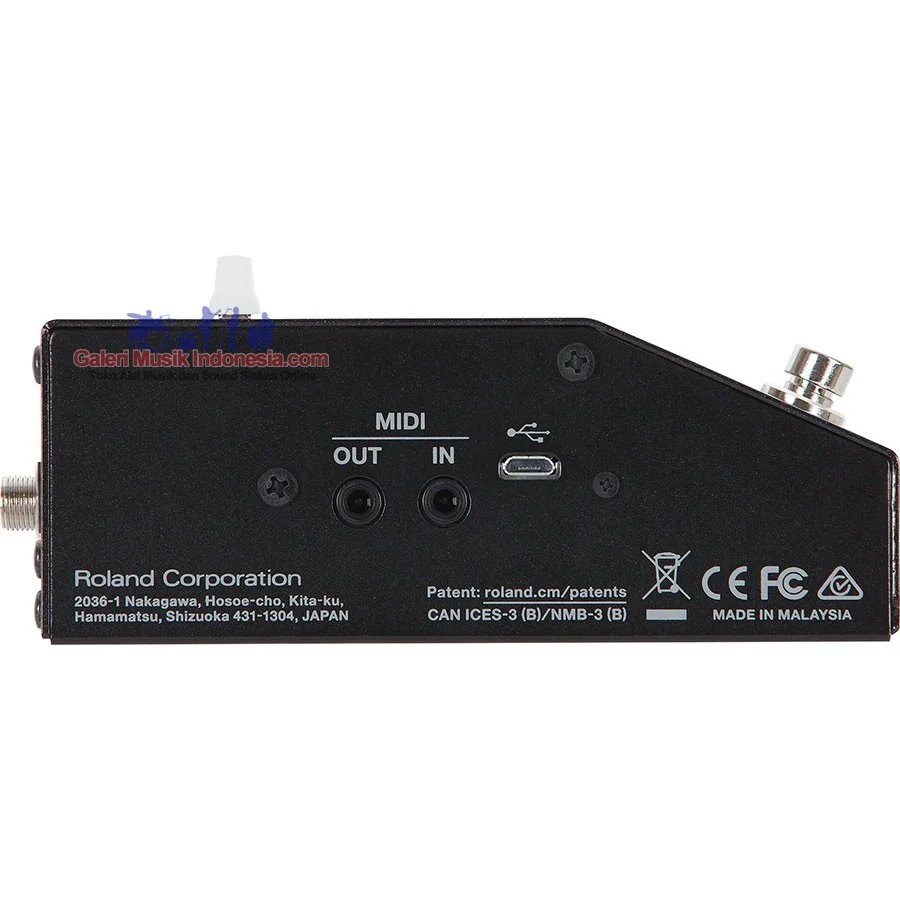

   • MIDI (IN, OUT) jacks: Stereo miniature phone type
   • DC IN jack
   • USB port: USB micro-B type (program update only)
• Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
• Current Draw: 170 mA
• Dimensions: 138 x 101 x 60 mm / 5.4″ x 4″ x 2.4″
• Weight: 630 g / 1.4 lb
