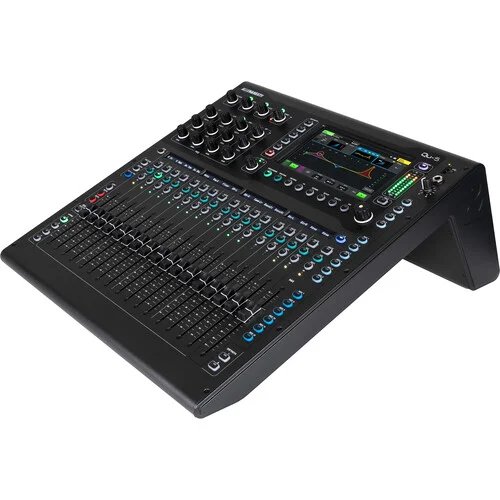

Allen & Heath Qu 5 Digital Mixer

Allen & Heath Qu 5 Digital Mixer

Spesifikasi Utama

Type: Digital Mixer
Model: Qu-5
Brand: Allen & Heath
Processing: 96 kHz XCVI FPGA Core
Input Channels: 38 Inputs to Mix (32 Mono/Linkable + 3 Stereo)
Mic/Line Input: 16 XLR / 1/4″ Combo
Outputs: 12 XLR, 2 TRS, AES3 Stereo Out
Motorized Fader: 17 × 100 mm
Touchscreen: 7″ Capacitive Touchscreen
Audio Interface: USB-C 32×32
Expansion: 128×128 Intelligent SLink Port
Recording: USB-A Stereo Record/Playback & SD Card Multitrack Recording
Dimensions: ±440 × 476 × 211 mm
Weight: ±10 kg

Fitur

• 96 kHz XCVI FPGA Processing.
• 17 motorized fader.
• 7″ capacitive touchscreen.
• 6 Stereo Multi-FX Engines.
• DEEP Processing Ready.
• USB-C 32×32 Audio Interface.
• SD Card Multitrack Recording.
• 128×128 SLink Expansion.
• Remote control via Windows, macOS, iOS, dan Android.

Performa

Allen & Heath Qu-5 menghadirkan kualitas audio profesional dengan latency di bawah 0,7 ms, workflow cepat, dan fleksibilitas routing yang tinggi. Sangat ideal untuk live performance, instalasi tetap, studio recording, maupun broadcast profesional.

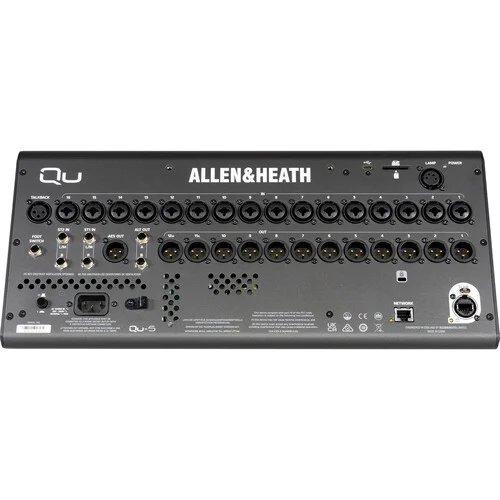

Konektivitas

• 16 × XLR / 1/4″ Combo Mic/Line Input
• 2 × Stereo TRS Line Input
• 12 × XLR Output
• 2 × TRS Output
• AES3 Stereo Digital Output
• USB-C Audio Interface (32×32)
• USB-A Record / Playback
• SD Card Slot
• RJ45 Network
• SLink Expansion Port
• Headphone Output
• Footswitch Input

Kelengkapan

• 1 Unit Allen & Heath Qu-5
• IEC Power Cable
• User Manual
