Allen & Heath dLive S7000 Surface + DM64

Allen & Heath dLive S7000 Surface + DM64 Digital Mixing System

Spesifikasi Utama

Type: Digital Mixing System (Surface + MixRack)
Model: dLive S7000 + DM64
Brand: Allen & Heath

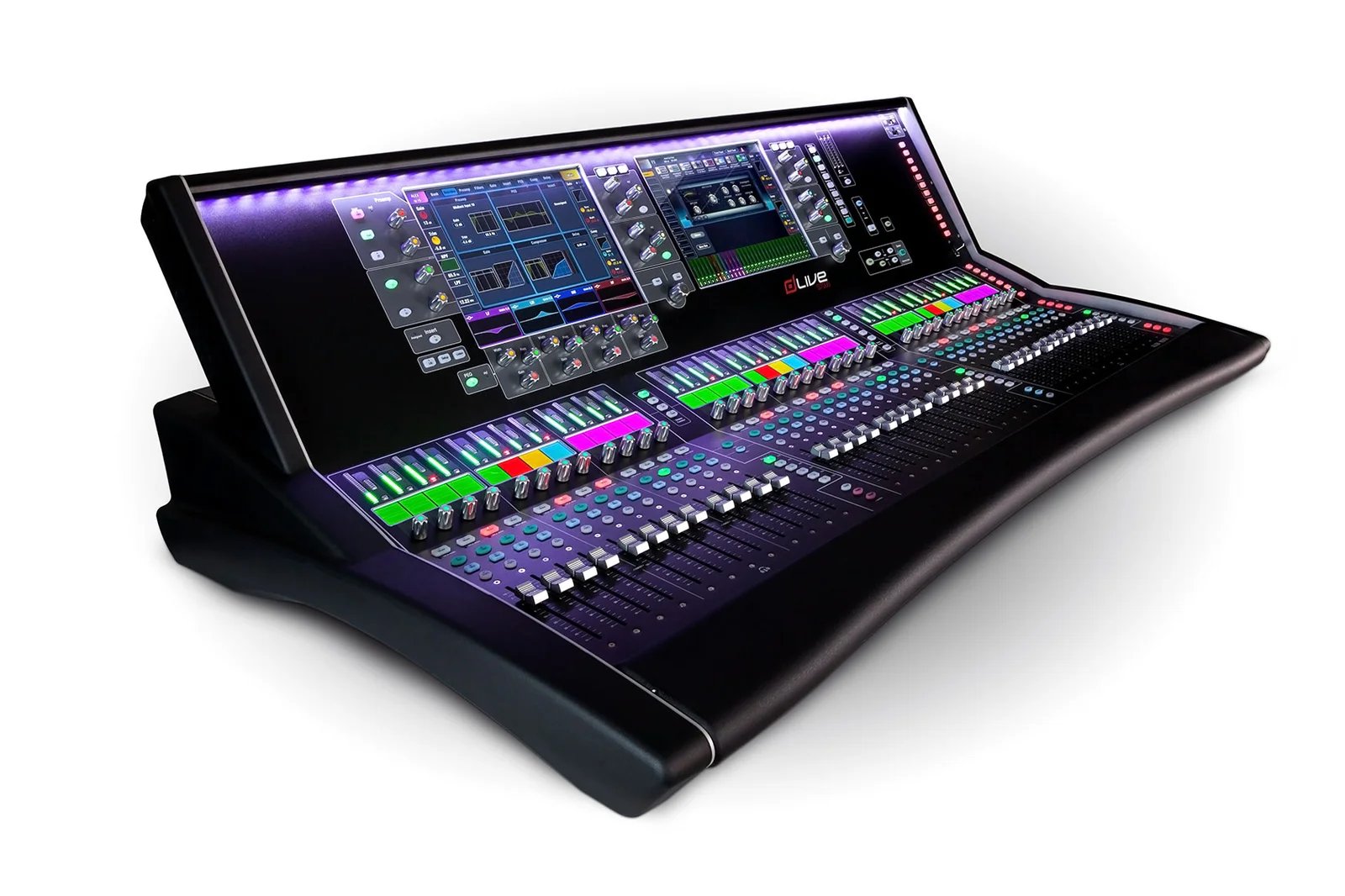

S7000 Surface

• Fader: 36 Motorized Faders
• Layers: 6 Layer (hingga 216 fader strip)
• Display: Dual 12″ Capacitive Touchscreen
• SoftKeys: 26 Assignable SoftKeys
• Rotary Controls: 6 Assignable Rotaries
• Audio I/O: 8 Mic/Line Input, 8 Line Output
• Digital I/O: AES3 Input/Output
• Network: gigaACE Link, DX Link, Ethernet
• Power: Dual Redundant Hot-Swappable PSU Support

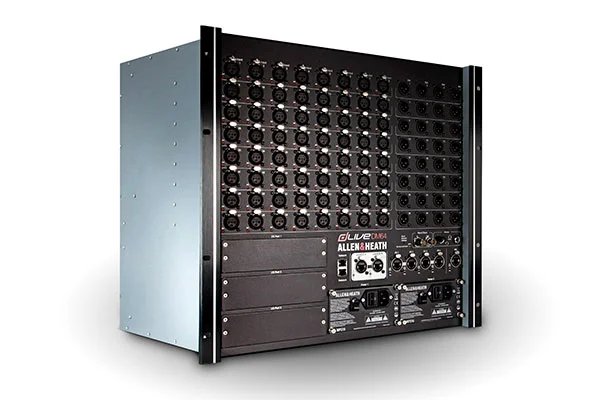

DM64 MixRack

• Mic/Line Inputs: 64 Input
• Line Outputs: 32 Output
• Processing Engine: XCVI FPGA Core
• Mix Architecture: 128 Input Channels / 64 Mix Outputs
• Sampling Rate: 96 kHz
• Latency: ±0.7 ms
• I/O Expansion: 3 × 128-channel I/O Port
• Digital Networking: gigaACE & DX Link

Fitur

• Sistem digital mixing modular Surface + MixRack.
• 64 mic/line input pada DM64.
• 128 channel input processing.
• 64 bus architecture yang dapat dikonfigurasi.
• FPGA processing untuk latency sangat rendah.
• Dual touchscreen workflow dengan Harmony UI.
• Motorized fader dengan layout bebas konfigurasi.
• Built-in FX Rack berkualitas tinggi.
• Multitrack recording melalui USB dan expansion card.
• Dukungan Dante, MADI, Waves, dan berbagai opsi networking audio.
• Multi-Surface operation untuk FOH dan Monitor mixing.

Performa

Allen & Heath dLive S7000 + DM64 memberikan performa mixing kelas touring dengan kapasitas besar, routing fleksibel, dan processing real-time yang sangat cepat. Kombinasi Surface S7000 dengan 36 fader dan DM64 sebagai pusat DSP menjadikannya solusi ideal untuk menangani produksi audio kompleks seperti konser besar, festival, broadcast multi-channel, dan instalasi profesional.

Konektivitas

S7000 Surface:

• 8 × XLR Mic/Line Input
• 8 × XLR Line Output
• AES3 Digital Input/Output
• 2 × gigaACE Link
• DX Link Expansion
• Ethernet Network
• USB Audio Recording/Playback

DM64 MixRack:

• 64 × Mic/Line Input
• 32 × Line Output
• 3 × I/O Expansion Port
• DX Link
• gigaACE Link
• Network Port

Kelengkapan

• 1 Unit Allen & Heath dLive S7000 Surface
• 1 Unit Allen & Heath DM64 MixRack
• Power Supply
• gigaACE Cable
• Rack Mount Accessories
• User Manual
